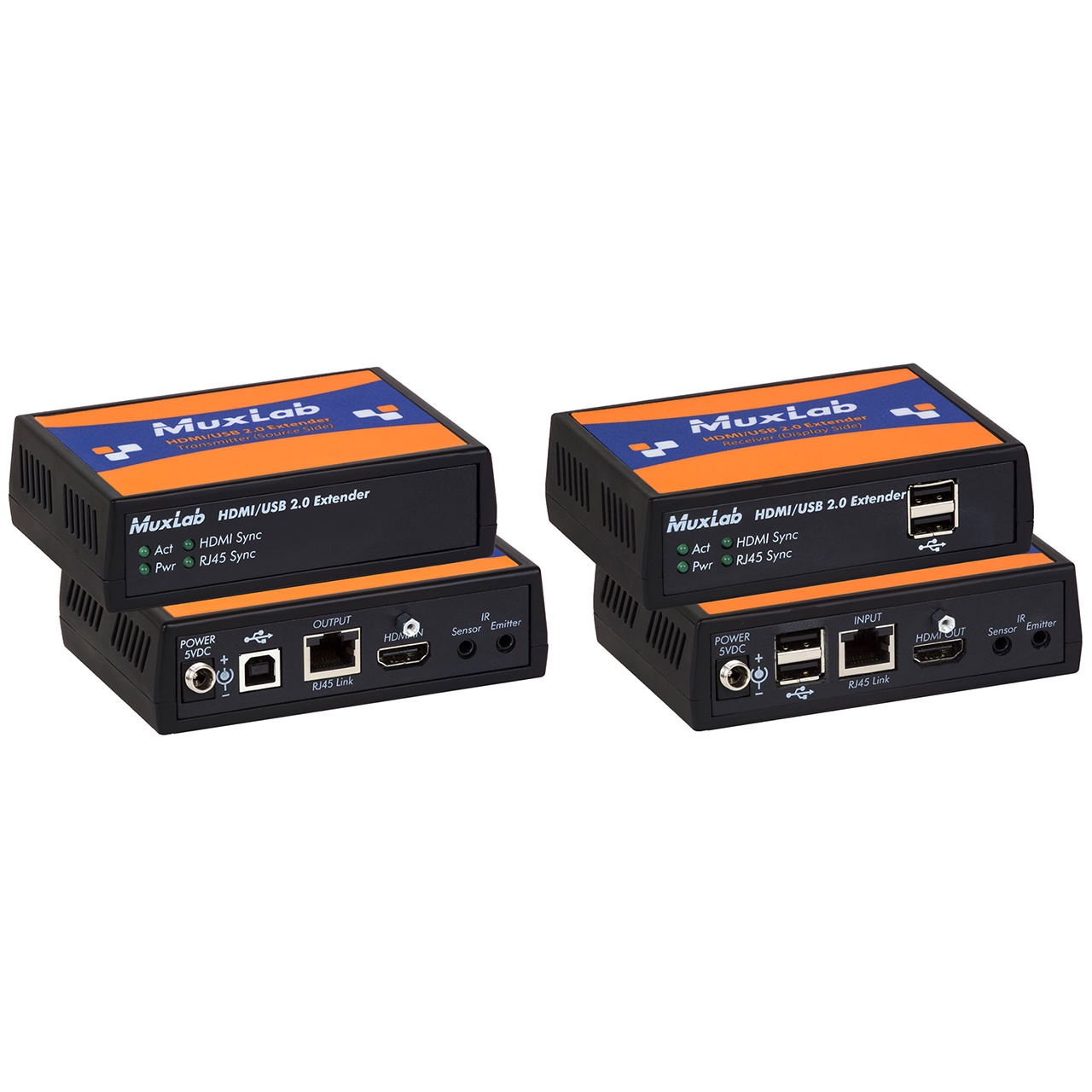

500457 Muxlab HDMI/USB2.0 Extender Kit

Specifications

• Environment - KVM, HDMI 1.4 & USB 2.0
• Devices - KVM, Monitors, TV, PC, laptops, mouse, keyboard.
• Transmission - Transparent to the user
• Bandwidth - 340 MHz
• Signals - HDMI 1.4 protocol and USB 2.0
• USB - One input on TX side and 4 outputs on RX side. Bandwidth available: Up to 250 Mb/s.
• ConnectorsNote: Cables not included. - One (1) HDMI receptacle. One (1) RJ45 for Cat 5e/6 unshielded or shielded twisted pair. On TX: 1 standard USB connector, type B. On RX: 4 standard USB connectors, type A.
• Maximum DistanceBased on a maximum length of 6.6ft (2m) of HDMI cable per end. - Cat 5e/6: 330ft (100m) up to 1920 X 1200 resolution, up to 60Hz 330ft (100m) for 4K (3840 X 2160) up to 30Hz Note: A minimum CAT5e/6 cable length of 12ft (4m) is required. When installed in an electrically noisy environment, an STP cable must be used.
• RJ45 Pin ConfigurationReverse Polarity Sensitive. Use EIA/TIA 568A or 586B straight-through wiring - RJ45 Link Pin 1 (R) Pin 2 (T) Pin 3 (R) Pin 6 (T) Pin 4 (R) Pin 5 (T) Pin 7 (R) Pin 8 (T)
• Cable - One (1) Cat 5e/6 or better twisted pair cable required.
• Power Supply - Two (2) 110-240V/5VDC power supplies with interchangeable blades
• Power Consumption - Transmitter: 3 Watts Receiver: 7 Watts + USB power
• Temperature - Operating: 0° to 40°C Storage: -20° to 85°C Humidity: Up to 95% non-condensing
• Enclosure - Aluminum casting with plastic side panel.
• Dimensions - 4.50" x 3.00" x 1.25" (11.4 x 7.6 x 3.2 cm)
• Weight - 2.6 lb. (1.2 kg)
• Compliance - Regulatory: FCC, CE, RoHS Flammability: 94V0
• Warranty - 2 years
• Order Information - 500457 HDMI / USB 2.0 Extender Kit
