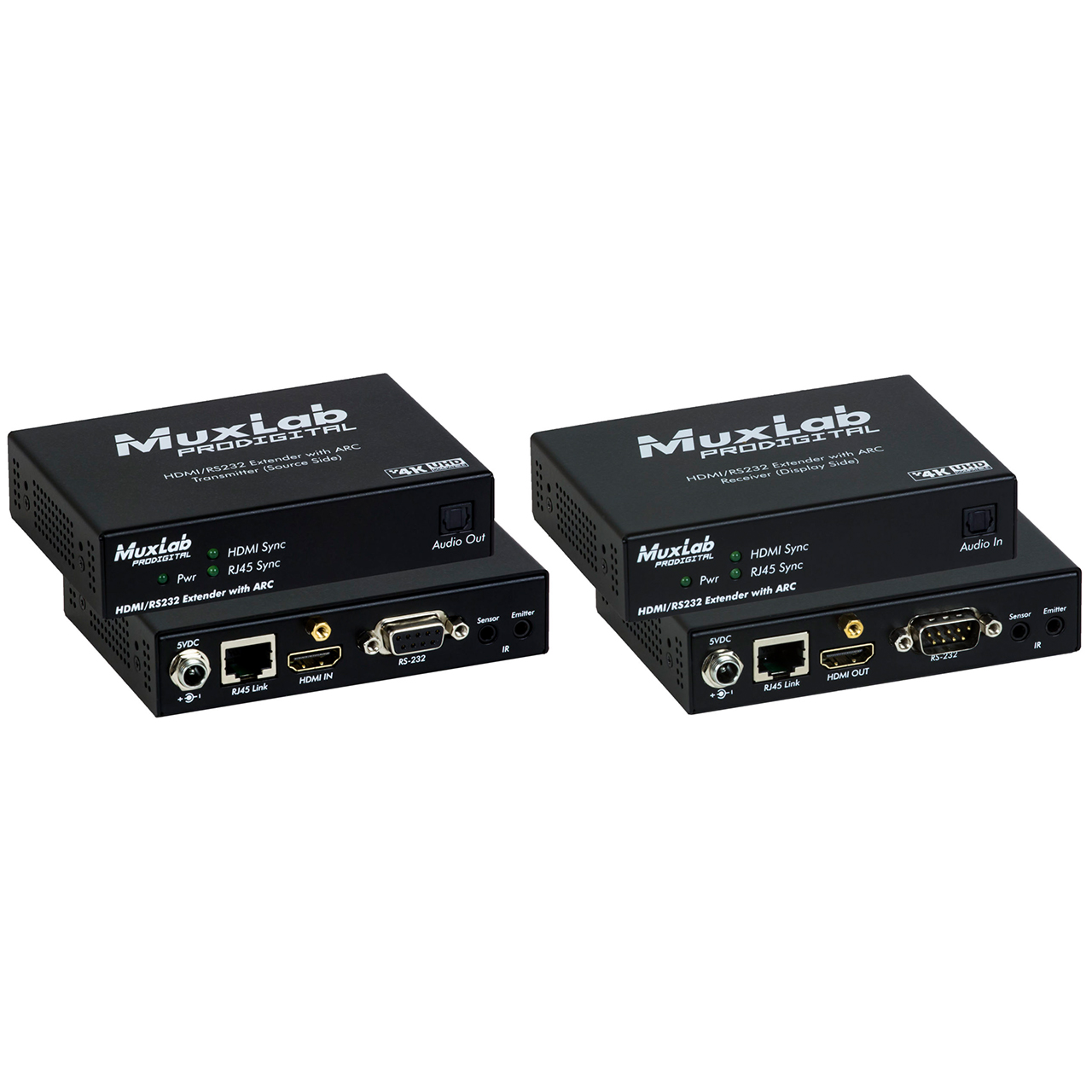

500458-ARC Muxlab HDMI/RS232 Extender Kit with ARC

SKU: 500458-ARC

Brand: MuxLab

HDMI/RS232 Extender Kit with ARC, HDBT, UHD-4K

Features

Supports 4K @ 24/25/30Hz (4:4:4) and 4K @ 60Hz (4:2:0) to distances of up to 131ft (40m) over single Cat5e/6
Supports 1080p and full 3D to distances of up to 230ft (70m) over single Cat5e/6
HDCP 2.2 compliant
Support Audio Return Channel (ARC)
Supports all digital audio modes
Supports RS232 and Bi-directional IR pass through
Includes IR emitter and IR sensor (carrier-wave)

The HDMI/RS232 Extender Kit with ARC, HDBT, UHD4K (500458-ARC) allows HDMI equipment to be connected up to 131ft (40m) at 4K/30 (4:4:4) and 4K/60 (4:2:0) resolution, or 230ft (70m) at resolutions up to 1080p via one (1) Cat 5e/6 unshielded twisted pair cable in a point-to-point configuration. The kit supports Audio Return Channel (ARC), allowing the Receiver to return audio from a sink device such as a smart TV back to the Transmitter and on to an audio system. The originating ARC signal may be received via the HDMI or TosLink-in port of the 500458-ARC-RX and transmitted via the TosLink-out port of the 500458-ARC-TX. The unit is HDCP 2.2 compliant and supports RS232 and bidirectional IR pass through transmission for end device remote control. The kit includes one (1) transmitter, one (1) receiver, one (1) IR Emitter, one (1) IR sensor, and two (2) power supplies.

More details...

MPN: 500458-ARC
UPC: 627699004586

MSRP Price: $660.00

Web Price$660.00

Quantity:

Add to List

DWG Dealer Program Become a DWG Dealer to see your pricing. Dealer pricing, quoting, volume discounts, and sales support on thousands of products.

Become a DWG Dealer → DWG Dealer Sign In

Product Details

Specifications

Environment - HDMI 2.0b
Devices - DVDs, Blu-ray players, projectors, monitors, TVs, PCs, laptops, servers supporting HDMI.
Transmission - Transparent to the user
Signals - HDMI 2.0b protocol
Connectors Cables not included - One (1) HDMI receptacle. One (1) RJ45S for Cat5e/6 unshielded or shielded twisted pair. One (1) DB9 connector for RS232. One (1) TosLink Optical Connector for Audio Return. Two (2) 3.5mm sockets for IR Sensor & Emitter (carrier-wave). One (1) 2.1mm locking power connector.
Max. Distance* *Based on a maximum length of 6.6 ft (2m) of HDMI cable per end - 4K/30 (4:4:4): Cat 5e/6: 131ft (40m) 4K/60 (4:2:0): Cat 5e/6: 131ft (40m) 1080p/60: Cat 5e/6: 230ft (70m) When installed in an electrically noisy environment, STP cable must be used. Also, crossconnection reduces the effective distance depending on the grade of twisted cable used.
RJ45 Pin Configuration Reverse Polarity Sensitive Use EIA/TIA 568 A or B, straight through wiring. - RJ45 Pin 1 (R) Pin 2 (T) Pin 3 (R) Pin 6 (T) Pin 4 (R) Pin 5 (T) Pin 7 (R) Pin 8 (T)
Cable - One (1) Category 5e or better twisted pair cable required.
Power Supply - Two (2) 110-240V/5VDC power supplies with interchangeable blades.
Power Consumption - Transmitter: 1.6 Watt Receiver: 3.2 Watt
Temperature - Operating: 0Âº to 40Âº C. Storage:-20Âº to 85Âº C. Humidity: up to 95% non-condensing.
Enclosure - Metal
Dimensions - 4.40" x 3.00" x 1.00" (11.2 x 7.6 x 2.5 cm)
Weight - 1.4 lbs (.6 kg)
Compliance - Regulatory: FCC, CE, RoHS
Warranty - 2 years
Order Information - 500458-ARC HDMI/RS232 Extender Kit with ARC, HDBT, UHD-4K (UPC: 627699004586)
Accessories - 500905 Rackmount Transceiver Chassis 3 Port 500920 Rackmount Transceiver Chassis 16 Port

500458-ARC.pdf Specifications PDF
