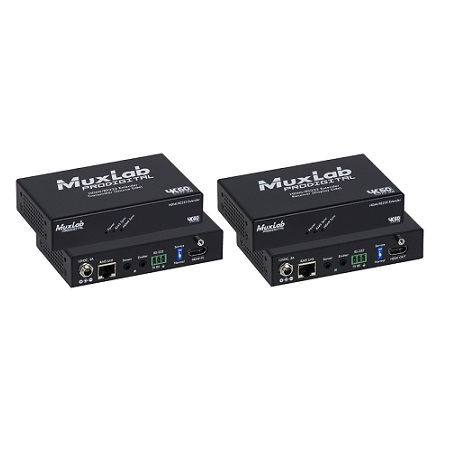

500459 Muxlab HDMI/RS232 Extender Kit

There are currently no active sales or promotions related to this item.

SKU: 500459

Brand: MuxLab

HDMI/RS232 Extender Kit, HDBT, 4K/60

Features

Supports 4K @ 24/25/30/60Hz (4:4:4) to distances of up to 131ft (40m) over single Cat5e/6
Supports 1080p and full 3D to distances of up to 230ft (70m) over single Cat5e/6
Uses visually lossless light compression at 4K/60 (4:4:4)
HDCP 2.2 Compliant
Supports HDR
Supports RS232 and Bi-directional IR pass through
Supports all digital audio modes
Includes IR emitter and IR sensor (carrier-wave)
Supports PoC

The HDMI/RS232 Extender Kit, HDBT, 4K/60 allows HDMI equipment to be connected up to 131ft (40m) at 4K/60 (4:4:4) resolution, or 230ft (70m) at resolutions up to 1080p via one (1) Cat 5e/6 unshielded twisted pair cable in a point-to-point configuration. The unit is HDCP 2.2 compliant and supports HDR, as well as RS232 and bidirectional IR pass through transmission for end device remote control. This HDMI extenderÃ¿4K 60 supports PoC, allowing the transmitter to power the receiver, or the receiver to power the transmitter. The kit includes one (1) transmitter, one (1) receiver, one (1) IR Emitter, one (1) IR sensor and one (1) power supply.

More details...

There are currently no active sales or promotions related to this item.

MPN: 500459
UPC: 627699004593

MSRP Price: $624.00

Web Price: $624.00

Quantity:

Add to List

Already a DWG Dealer? - Sign In to view pricing.

Product Details

Specifications

Environment - HDMI 2.0
Devices - DVDs, Blu-ray players, projectors, monitors, TVs, PCs, laptops, servers supporting HDMI.
Transmission - Transparent to the user
Signals - HDMI 2.0 protocol
ConnectorsCables not included - One (1) HDMI receptacle. One (1) RJ45S for Cat5e/6 unshielded or shielded twisted pair. One (1) 3-Position Terminal Block for RS232. Two (2) 3.5mm sockets for IR Sensor & Emitter (carrier-wave). One (1) 2.1mm locking power connector
Max. Distance**Based on a maximum length of 6.6 ft (2m) of HDMI cable per end - 4K/60 (4:4:4): Cat 5e/6: 131ft (40m) 1080p/60: Cat 5e/6: 230ft (70m) When installed in an electrically noisy environment, STP cable must be used. Also, cross-connection reduces the effective distance depending on the grade of twisted cable used.
RJ45 Pin Configuration - Specification details
SpecificationReverse Polarity Sensitive Use EIA/TIA 568 A or B, straightthrough wiring. - RJ45 Pin 1 (R) Pin 2 (T) Pin 3 (R) Pin 6 (T) Pin 4 (R) Pin 5 (T) Pin 7 (R) Pin 8 (T)
Cable - One (1) Category 5e or better twisted pair cable required.
Power Supply - One (1) 110-240V/12VDC @ 2A power supply with interchangeable blades.
Power Consumption - Transmitter: 10.44 Watts Receiver: 10.44 Watts
Temperature - Operating: 0Âº to 40Âº C. Storage:-20Âº to 85Âº C. Humidity: up to 95% non-condensing.
Enclosure - Metal
Dimensions - 4.72" x 2.87" x 1.00" (12.0 x 7.3 x 2.5 cm)
Weight - 1.75 lbs (0.79 kg)
Compliance - Regulatory: FCC, CE, RoHS
Warranty - 2 years
Order Information - 500459 HDMI/RS232 Extender Kit, HDBT, 4K/60 (UPC: 627699004593)
Accessories - 500905 Rackmount Transceiver Chassis 3 Port 500920 Rackmount Transceiver Chassis 16 Port

500459 Specifications PDF

Digital signage, commercial AV systems, classroom projector systems, boardroom systems, collaborative PC systems, medical information systems.
