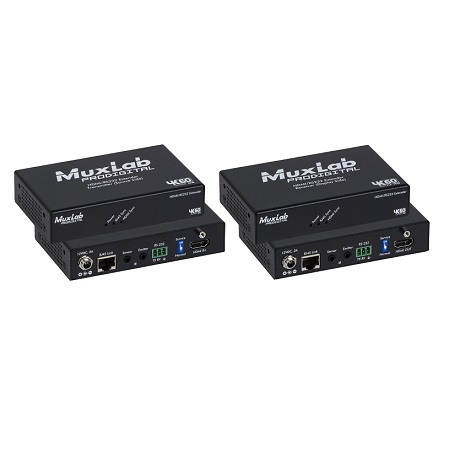

500459-100 Muxlab HDMI/RS232 100m Extender Kit

SKU: 500459-100

Brand: MuxLab

HDMI/RS232 100m Extender Kit, HDBT, 4K/60

Features

Supports 4K @ 24/25/30/60Hz (4:4:4) to distances of up to 230ft (70m) over single Cat5e/6
Supports 1080p and full 3D to distances of up to 330ft (100m) over single Cat5e/6
Uses visually lossless light compression at 4K/60 (4:4:4)
HDCP 2.2 Compliant
Supports HDR
Supports RS232 and Bi-directional IR pass through
Supports all digital audio modes
Includes IR emitter and IR sensor (carrier-wave)
Supports PoC

The HDMI/RS232 100m Extender Kit, HDBT, 4K/60 (500459-100) allows HDMI equipment to be connected up to 230ft (70m) at 4K/60 (4:4:4) resolution, or 330ft (100m) at resolutions up to 1080p via one (1) Cat 5e/6 unshielded twisted pair cable in a point-to-point configuration. The unit is HDCP 2.2 compliant and supports HDR, as well as RS232 and bidirectional IR pass through transmission for end device remote control. This product supports PoC, allowing the transmitter to power the receiver, or the receiver to power the transmitter. The kit includes one (1) transmitter, one (1) receiver, one (1) IR Emitter, one (1) IR sensor and one (1) power supply.

More details...

MPN: 500459-100

MSRP Price: $737.00

Web Price$737.00

Quantity:

Add to List

DWG Dealer Program Become a DWG Dealer to see your pricing. Dealer pricing, quoting, volume discounts, and sales support on thousands of products.

Become a DWG Dealer → DWG Dealer Sign In

Product Details

Specifications

Environment - HDMI 2.0
Devices - DVDs, Blu-ray players, projectors, monitors, TVs, PCs, laptops, servers supporting HDMI.
Transmission - Transparent to the user
Signals - HDMI 2.0 protocol
Connectors Cables not included - One (1) HDMI receptacle. One (1) RJ45S for Cat5e/6 unshielded or shielded twisted pair. One (1) 3-Position Terminal Block for RS232. Two (2) 3.5mm sockets for IR Sensor & Emitter (carrier-wave). One (1) 2.1mm locking power connector.
Max. Distance *Based on a maximum length of 6.6 ft (2m) of HDMI cable per end - 4K/60 (4:4:4): Cat 5e/6: 230ft (70m) 1080p/60: Cat 5e/6: 330ft (100m) When installed in an electrically noisy environment, STP cable must be used. Also, crossconnection reduces the effective distance depending on the grade of twisted cable used.
RJ45 Pin Configuration Reverse Polarity Sensitive Use EIA/TIA 568 A or B, straight through wiring. - RJ45 Pin 1 (R) Pin 2 (T) Pin 3 (R) Pin 6 (T) Pin 4 (R) Pin 5 (T) Pin 7 (R) Pin 8 (T)
Cable - One (1) Category 5e or better twisted pair cable required.
Power Supply - One (1) 110-240V/12VDC @ 2A power supply with interchangeable blades.
Power Consumption - Transmitter: 10.44 Watts Receiver: 10.44 Watts
Temperature - Operating: 0Âº to 40Âº C. Storage:-20Âº to 85Âº C. Humidity: up to 95% non-condensing.
Enclosure - Metal
Dimensions - 4.72" x 2.87" x 1.00" (12.0 x 7.3 x 2.5 cm)
Weight - 1.75 lbs (0.79 kg)
Compliance - Regulatory: FCC, CE, RoHS
Warranty - 2 years
Order Information - 500459-100 HDMI/RS232 100m Extender Kit, HDBT, 4K/60 (UPC: 627699014592)
Accessories - 500905 Rackmount Transceiver Chassis 3 Port 500920 Rackmount Transceiver Chassis 16 Port

500459-100.pdf Specifications PDF

Digital signage, commercial AV systems, classroom projector systems, boardroom systems, collaborative PC systems, medical information systems.
