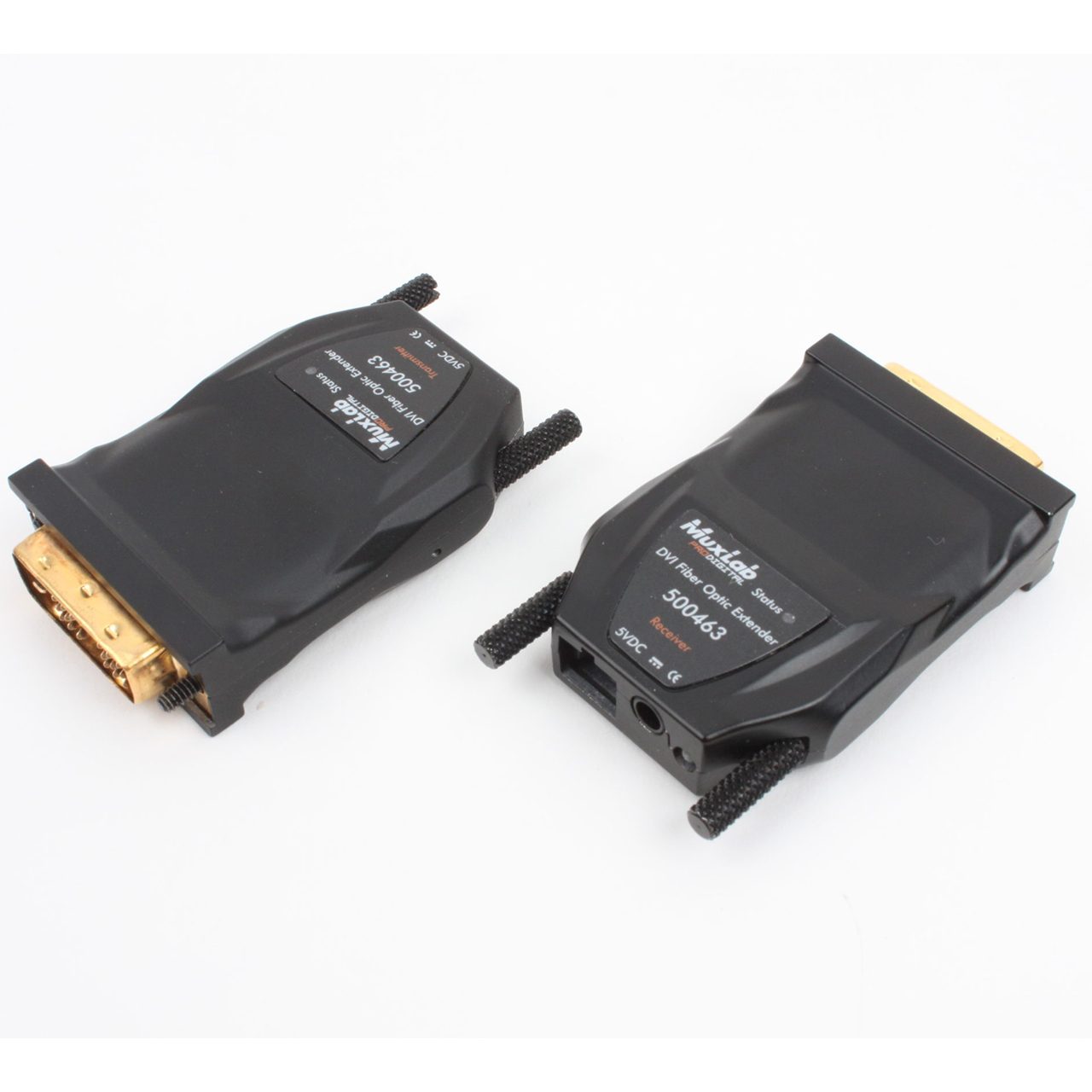

500463 Muxlab DVI Fiber Optic Extender Kit

SKU: 500463

Brand: MuxLab

DVI Fiber Optic Extender Kit

Features

Extends DVI devices up to 3,280 ft. (1km)
Supports video resolutions up to 1080p and 1920 x 1200
Uses single-strand multimode fiber optic cable
Easy EDID programming enables simple synchronization
Supports DDWG standard for DVI compliant monitors
Video Amplifier Bandwidth: 165 MHz (single link)
Input DDC Signal: 5 volts p-p (TTL)
DVI Connector: Type DVI-D male
Link Connector: SCPower Supply: 5V DC

Extend DVI over one fiber optic cable up to 3,280 feet (1km).

The MuxLab DVI Fiber Optic Extender Kit lengthens your DVI display from your video source using a single strand of fiber optic cable.

Automatic EDID programming enables simple synchronization of the video source to the display.

More details...

MPN: 500463

MSRP Price: $1,309.00

Web Price: $1,309.00

Quantity:

Add to List

DWG Dealer Program Become a DWG Dealer to see your pricing. Dealer pricing, quoting, volume discounts, and sales support on thousands of products.

Become a DWG Dealer → DWG Dealer Sign In

Product Details

Extend DVI over one fiber optic cable up to 3,280 feet (1km).The MuxLab DVI extender lengthens your DVI display from your video source using a single strand of fiber optic cable

Specifications

Transmitter

Connector - DVl-D (Male)SC connector (Female)
Optical fiber - 1ch Multi-mode
Pixel clock - 165MHz (Single link)
Supporting Resolution & Distance
- WUXGA(1920 x 1200) @ 60Hz I 500M(1,650ft)
- 1080p(1920 x 1080)@60Hz I 500M(1,650ft)
Power Consumption - 0.8W(Max)
Power Supply - Optional

Receiver

Connector - DVl-D (Male)SC connector (Female)
Optical fiber - 1ch Multi-mode
Pixel clock - 165MHz (Single link)
Supporting Resolution & Distance
- WUXGA(1920 x 1200) @ 60Hz I 500M(1,650ft)
- 1080p(1920 x 1080)@60Hz I 500M(1,650ft)
Power Consumption - 0.6W(Max)
Power Supply - 100-240V DC 5V,2A
Environment
- Operating Temperature Range : 0 to 50 degrees Celsius
- Storage Temperature Range : -20 to 70 degrees Celsius

500463 Specifications PDF
