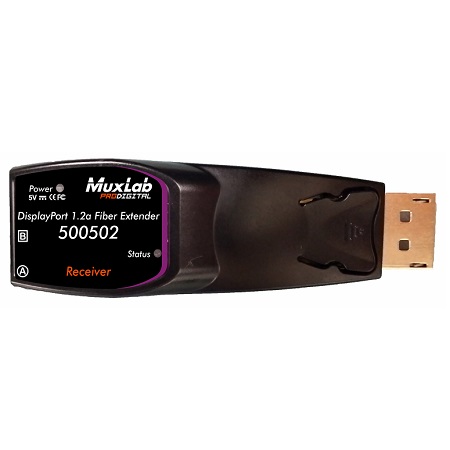

500502 Muxlab DisplayPort 1.2a Fiber Extender Kit

There are currently no active sales or promotions related to this item.

SKU: 500502

Brand: MuxLab

DisplayPort 1.2a Fiber Extender Kit

Features

Extend DisplayPort connectivity via multi-mode fiber
Supports the DisplayPort 1.2a standard
Up to 660ft (200m) over OM3 or OM4 multi-mode fiber
Supports WQUXGA (3840x2400) resolution @ 60Hz
Bandwidth of 21.6Gbps
Supports Dual-Mode DP (DP++)
Supports auxiliary/I2C channel over fiber
Compact Enclosure for a robust and easy installation

The DisplayPort 1.2a Fiber Extender Kit enables the user to transmit WQUXGA (3840x2400) video at 60Hz signal up to 660ft (200m), with any form of scaling or data compression being applied to the signal. This device support a total data throughput of 21.6Gbps (5.4Gbps per lane).

More details...

There are currently no active sales or promotions related to this item.

MPN: 500502
UPC: 627699005026

MSRP Price: $2,499.00

Web Price: $2,499.00

Quantity:

Add to List

Already a DWG Dealer? - Sign In to view pricing.

Product Details

Specifications

Environment - DisplayPort 1.2a
Devices - Plasma, projectors, monitors, PC, laptops, and servers supporting DisplayPort.
Transmission - Transparent to the user
Video Bandwidth - 21.6 Gbps (5.4 Gbps per lane)
Video Resolution - Up to 3840x2400 @ 60Hz
Signals - DisplayPort 1.2a
Connectors - One (1) DisplayPort Male Connector Two (2) LC Optical Connectors One (1) Micro USB connector for external power
Maximum Distance - 330ft (100 m) over 50/125ïm multi-mode fiber (OM3)
Cable - Two (2) LC multi-mode fibers, having a 50/125ïm core
Power Supply - Two (2) 110-240V to 5VDC, 1A power supply with interchangeable blades for US, UK & Euro
Temperature - Operating: 0Â° to 50Â°C Storage: -30Â° to 70Â°C Humidity: Up to 85% non-condensing
Enclosure - Metal
Dimensions - 1.02" x 2.83" x 0.57" (26 x 72 x 15 mm)
Weight - 1.0 lbs (0.45 kg)
Compliance - Regulatory: FCC, CE, RoHS
Warranty - 2 years
Order Information - 500502 DisplayPort 1.2a Fiber Extender Kit (UPC: 627699005026)

500502 Specifications PDF

Extending DisplayPort Monitors in various applications including; Commercial and residential computer systems Classroom training computer systems Collaborative computer systems Medical information computer system
