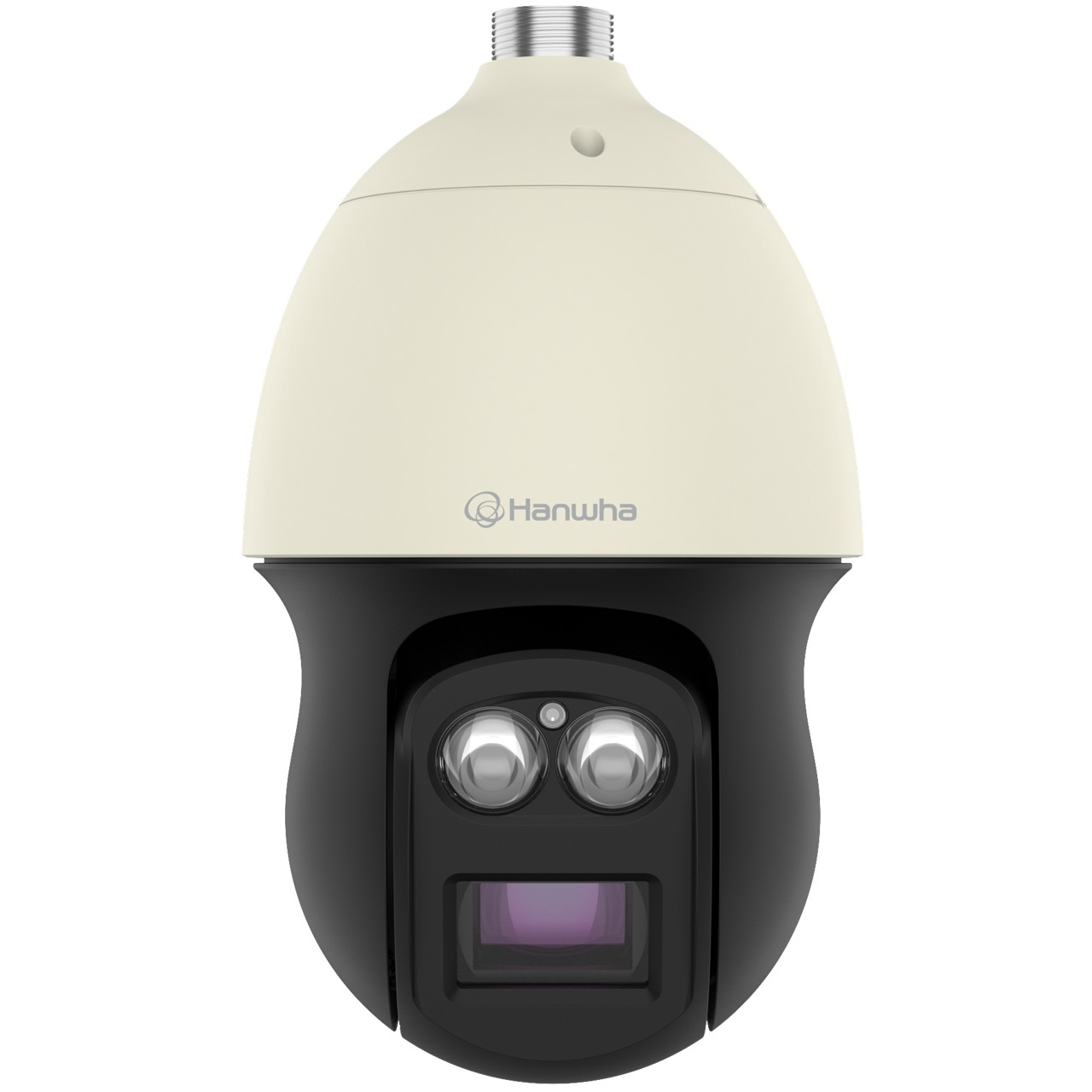

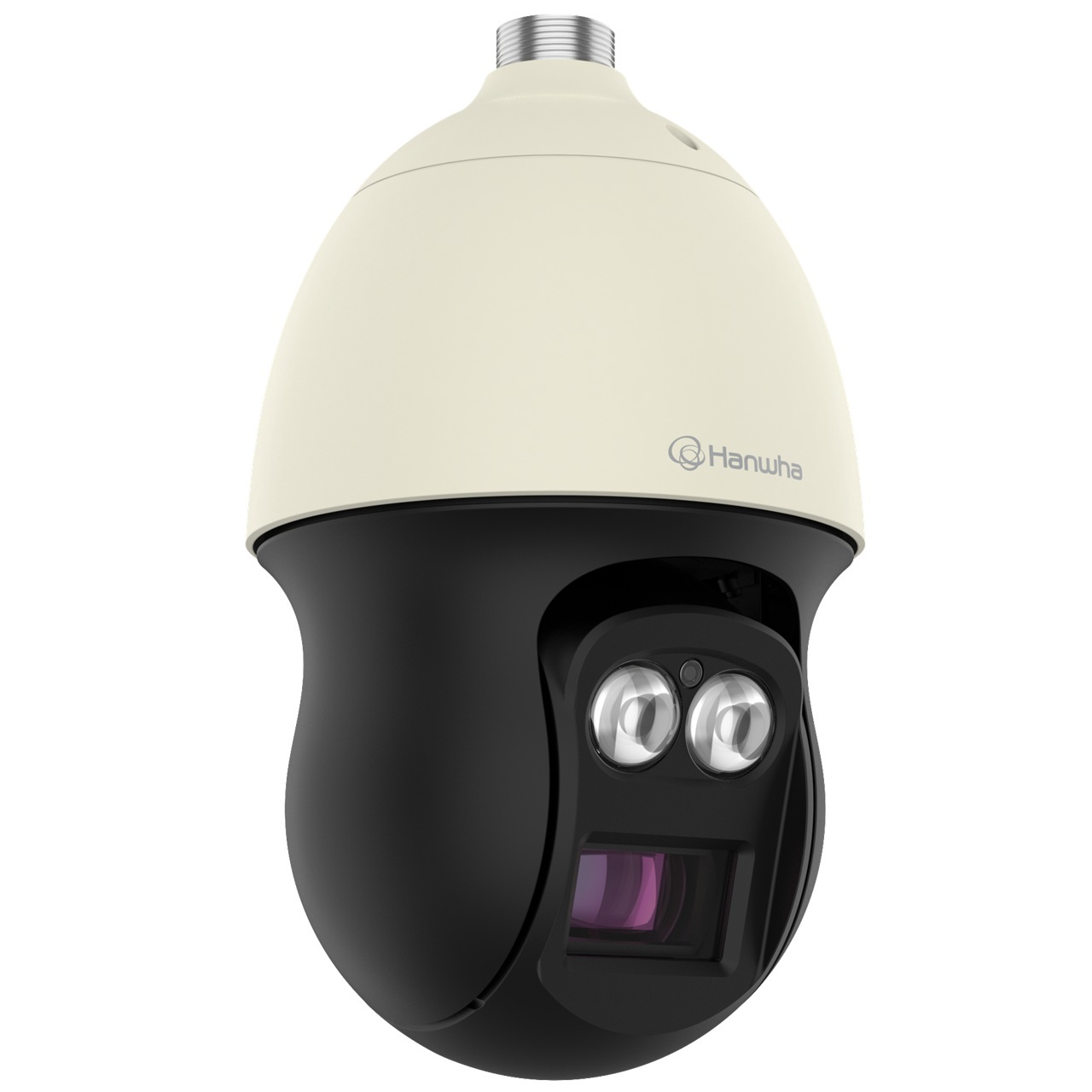

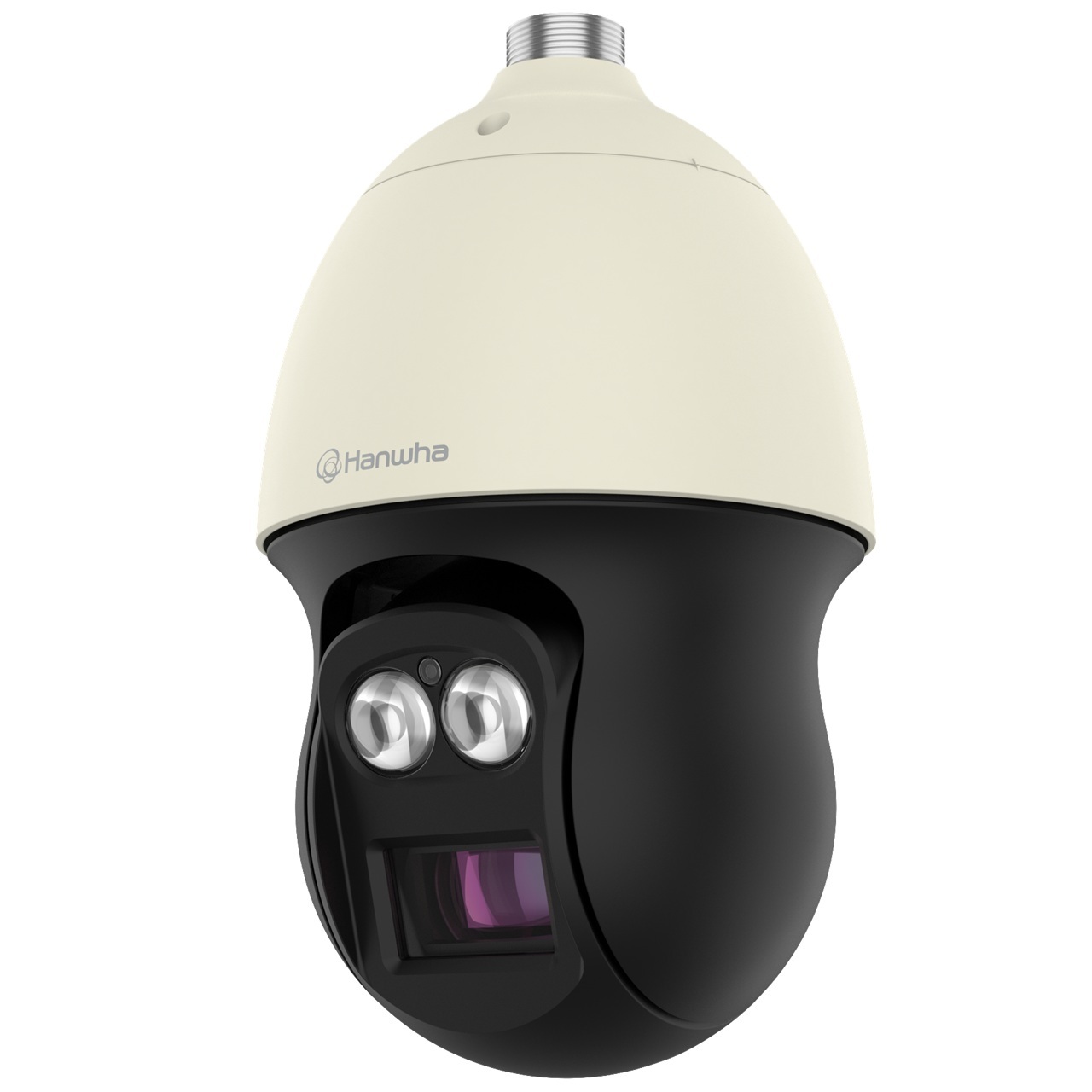

XNP-6550RH Hanwha Vision X Series 4.75-261.4mm 55x Optical Zoom 60FPS @ 2MP Outdoor Day/Night WDR PTZ IP Security Camera 24VAC/HPoE

Specifications

Video

• Imaging Device - 1/2.8" 2MP CMOS
• Resolution - 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
• Max. Framerate - H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
• Min. Illumination - Color: 0.02Lux(F1.6, 1/30sec) BW: 0.002 lux (1/30sec,F1.6), 0Lux(IR LED On)
• Video Out - CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation

Lens

• Focal Length (Zoom Ratio) - 4.75~261.4mm(55x) zoom
• Max. Aperture Ratio - F1.6 (Wide) ~ F6.5 (Tele)
• Angular Field of View - H: 58.6Ëš(Wide)~1.23Ëš(Tele) / V: 34.8Ëš(Wide)~0.71Ëš(Tele)
• Min. Object Distance - 5m
• Focus Control - AF / One-Shot AF / Manual
• Lens Type - DC auto iris

Pan / Tilt / Rotate

• Pan Range - 360° Endless
• Pan Speed - Preset: 400°/sec, Manual: 0.024°/sec~250°/sec
• Tilt Range - 95°(-5°~90°)
• Tilt Speed - Preset: 250°/sec, Manual: 0.024°/sec~250°/sec
• Sequence - Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
• Preset Accuracy - ±0.2°

Operational

• Camera Title - Displayed up to 85 characters
• Direction Indicator - Support
• Day & Night - Auto(ICR)
• Backlight Compensation - BLC, HCL, WDR, SSDR
• Wide Dynamic Range - (150dB)
• Digital Noise Reduction - SSNRâ…¤
• Digital Image Stabilization - Support(built-in gyro sensor)
• Defog - Support
• Motion Detection - 8ea, 8 Point Polygonal zones
• Privacy Masking - 32ea, rectangular Support - Color: Grey/Green/Red/Blue/Black/White - Mosaic
• Gain Control - Low, Middle, High
• White Balance - ATW, AWC /Manual /Indoor /Outdoor
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker (2~1/12,000sec)
• Video Rotation - Flip, Mirror
• Analytics - Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, Shock detection
• Serial Interface - RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)
• Alarm I/O - Input 4ea / Output 2ea
• Alarm Triggers - Analytics, Network disconnect, Alarm input
• Alarm Events - File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output PTZ Preset
• Audio In - Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
• Light Type - IR LED (850nm)
• IR Viewable Length - 500m(1,640.42ft)
• Auto Tracking - Support

Network

• Ethernet - RJ-45(10/100BASE-T), SFP(Optional)
• Video Compression - H.265/H.264: Main/Baseline/High, MJPEG
• Audio Compression - G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
• Smart Codec - Manual(5ea area), WiseStreamâ…¡
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(20 users) / Multicast (128 user) Multiple streaming(Up to 10 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP, NTCIP 1205
• Security - HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device Certificate(Hanwha Private Root CA)
• Application Programming Interface - ONVIF Profile S/G SUNAPI(HTTP API) Wisenet open platform

General

• Webpage Language - English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Edge Storage - Micro SD/SDHC/SDXC 2slot 512GB
• Memory - 1024MB RAM, 256MB Flash

Environmental & Electrical

• Operating Temperature / Humidity - 24VAC : -50°C~+55°C (-58°F ~ +131°F), Less than 95% RH-Non-Condensing HPoE : -40°C~+55°C (-40°F ~ +131°F) /Less than 95% RH-Non-Condensing * Start up should be done at above -35°C FAN/Heater included
• Storage Temperature / Humidity - -50°C~+60°C (-58°F~+140°F) / Less than 90% RH
• Certification - IP66, IK10
• Input Voltage - 24VAC, HPoE(IEEE802.3bt, Class7)
• Power Consumption - 24VAC: Max. 92W (typical : 30W) HPoE : Max. 60W (typical : 30W)

Mechanical

• Color / Material - Body: Ivory / Aluminum+Plastic, Head: Black / Aluminum+Plastic
• Product Dimensions / Weight - ø236.9x407.7mm(9.33x16.05"), 7.1Kg(15.65 lb)
• Ceiling Mount (Assy) - SBP-300CM
• Wall Mount - SBP-300WM1, SBP-300WM
• Pole Mount - SBP-300PM1
• Parapet Mount - SBP-300LM
• Corner Mount - SBP-300KM1
• Other Compatible Models - SBP-303HF

DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF) - Wide: 68.4m(224.5ft) / Tele: 3577.4m(11736.7ft)
• Observe (63PPM/ 19PPF) - Wide: 27.4m(89.8ft) / Tele: 1430.9m(4694.7ft)
• Recognize (125PPM/ 38PPF) - Wide: 13.7m(44.9ft) / Tele: 715.5m(2347.3ft)
• Identify (250PPM/ 76PPF) - Wide: 6.8m(22.5ft) / Tele: 357.7m(1173.7ft)
