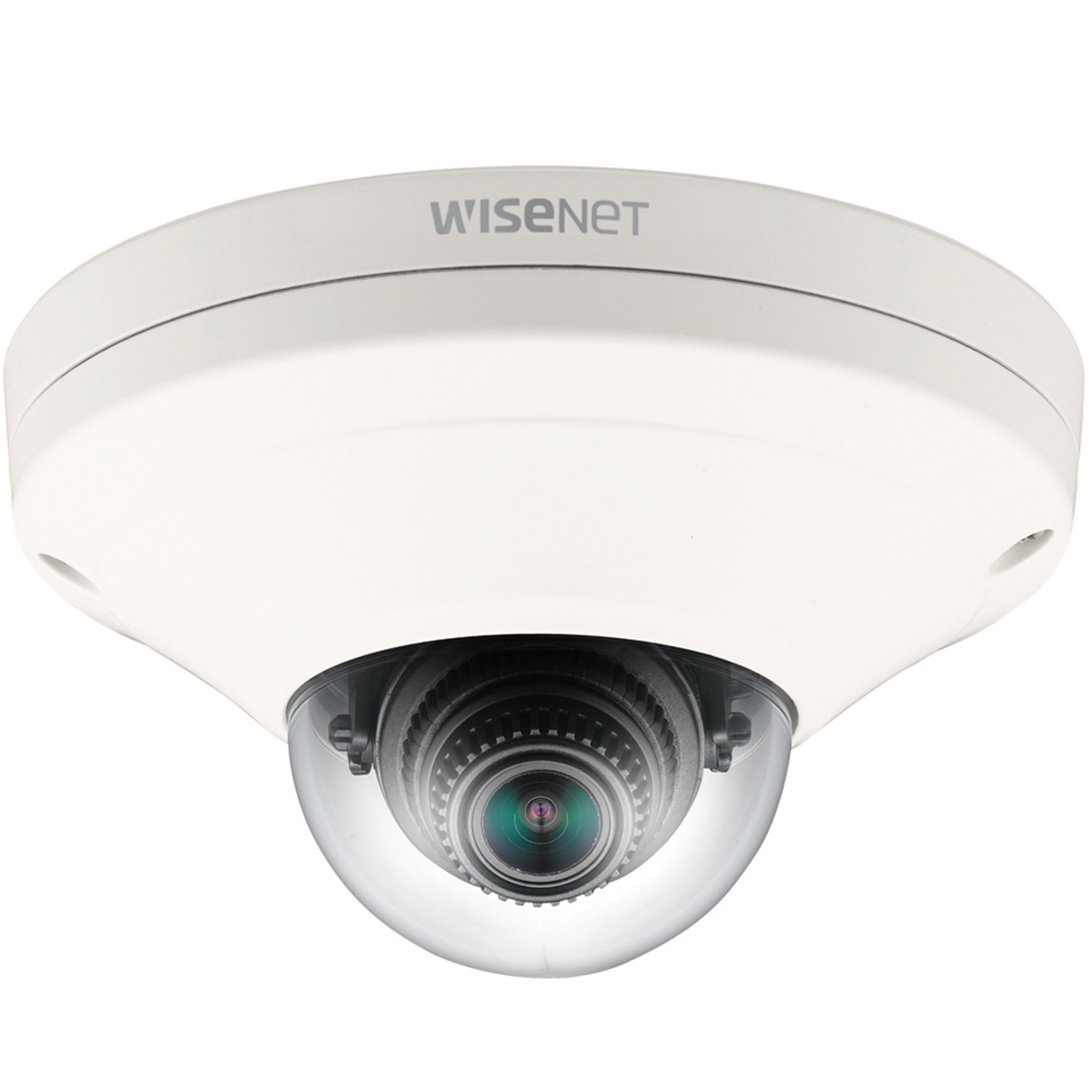

XNV-6011W Hanwha Vision X series 2.8mm 60FPS @ 2MP Outdoor Day/Night WDR Dome IP Security Camera PoE

Specifications

Video

• Imaging Device - 1/2.8" 2MP CMOS
• Total Pixels - 1,945(H) x 1,109(V) 2.16MP
• Effective Pixels - 1,945(H) x 1,097(V) 2.13MP
• Scanning System - Progressive
• Min. Illumination - Color : 0.055 Lux (F2.0, 1/30sec), B/W : 0.055 Lux (F2.0, 1/30sec)
• S / N Ratio - 50dB
• Video Out - CVBS : 1.0 Vp-p / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation USB : Micro USB type B, 1280 x 720, for installation

Lens

• Focal Length (Zoom Ratio) - 2.8mm fixed
• Max. Aperture Ratio - F2.0
• Angular Field of View - H : 112Ëš, V : 62Ëš, D : 130
• Min. Object Distance - 0.2m (0.66ft)
• Focus Control - Manual
• Lens/Mount Type - Fixed/ Board-in Type

Operational

• Camera Title - Off / On (Displayed up to 85 Characters) - English / Numeric /Special Characters - China : English / Numeric / Special / Chinese Characters - Common : Multi-line (Max 5), Color (Grey / Green / Red / Blue / Black / White), Transparency, Auto Scale by Resolution
• Day & Night - Auto (Electrical) / Color / B/W
• Backlight Compensation - Off / BLC / HLC (Masking / Dimming), WDR
• Wide Dynamic Range - (150dB)
• Contrast Enhancement - SSDR (Off / On)
• Digital Noise Reduction - SSNRV (2D + 3D Noise filter) (Off / On)
• Digital Image Stabilization - Off / On
• Defog - Auto (input from fog detection) / Manual / Off
• Motion Detection - Off / On (8ea, 8Point polygonal zones), Handover
• Privacy Masking - Off / On (32ea, Rectanglular zones) - Color : Gray / Green / Red / Blue / Black / White - Mosaic
• Gain Control - off/Low / Middle / High
• White Balance - ATW / AWC / Manual / Indoor / Outdoor (Included Mercury & Sodium)
• Contrast - Level Adjusment
• LDC - Off / On (5 Levels with Min / Max)
• Electronic Shutter Speed - Minimum / Maximum / Anti Flicker (2 ~ 1/12,000sec)
• Digital Zoom - 24x, Digital PTZ (Preset, Group)
• Flip / Mirror - Flip : Off / On, Mirror : Off / On, Hallway View : 90Ëš / 270Ëš
• Video Analytics - Tampering, Loitering, Directional Detection, Defocus Detection, Fog Detection, Virtual Line, Enter / Exit, (Dis) Appear, Face Detection, Motion Detection, Digital Auto Tracking, People Counting, Heatmap, Queue management
• Alarm Triggers - Motion Detection, Video Analytics, Network Disconnect
• Alarm Events - File upload via FTP, E-Mail, Notification via E-Mail, Local Storage (SD / SDHC / SDXC) or NAS Recording at Event Triggers, DPTZ preset
• Pixel Counter - Support

Network

• Ethernet - RJ-45 (10/100 BASE-T)
• Video Compression Format - H.265 / H.264 (MPEG-4 Part 10 / AVC) : Main / Baseline / High, Motion JPEG
• Resolution - 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
• Max. Framerate - H.265 / H.264 : Max. 60fps at all resolutions, Motion JPEG : Max. 30fps
• Smart Codec - Manual Mode (area-based : 5EA)
• WiseStreamII - Support
• Video Quality Adjustment - H.264 / H.265 : Target bitrate Level Control, MJPEG : Target bitrate Level Control
• Bitrate Control Method - H.264 / H.265 : CBR or VBR, MJPEG : VBR
• Streaming Capability - Multiple streaming (Up to 10 Profiles)
• IP - IPv4, IPv6
• Protocol - TCP / IP, UDP / IP, RTP (UDP), RTP (TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL / TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMP v1 / v2c / v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour)
• Security - HTTPS (SSL) Login Authentication, Digest Login Authentication IP address filtering, User access log, 802.1X Authentication (EAP-TLS, EAP-LEAP)
• Streaming Method - Unicast / Multicast
• Maximum User Access - 20 Users at Unicast Mode
• Edge Storage - SD / SDHC / SDXC (256GB) - Motion Images recorded in the SD / SDHC / SDXC memory card can be downloaded. NAS (Network Attached Storage), Local PC for Instant Recording
• Application Programming Interface - ONVIF Profile S/G, SUNAPI (HTTP API), Open Platform
• Webpage Language - English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Web Viewer - Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Non-plugin WebViewer - Supported Browser : Google Chrome 54, MS Edge 38, Mozilla Firefox 49 (Window 64bit only), Apple Safari 10 (Mac OS X only) Plug-in WebViewer - Supported Browser : MS Explore 11, Apple Safari 9 (Mac OS X only)
• Central Management Software - SmartViewer, SSM

Environmental

• Operating Temperature / Humidity - -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH *Start up should be done at above -20ËšC
• Storage Temperature / Humidity - -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
• Ingress Protection / Vandal Resistance - IP66
• Vandal Resistance - IK10, NEMA4X

Electrical

• Input Voltage/ Current - PoE (IEEE802.3af, Class3)
• Power Consumption - Max 6.5W

Mechanical

• Color / Material - White / Metal
• Product Dimensions - Ø112.8 x 63.7mm (Ø4.44" x 2.51")
• Weight - 420g (0.93 lb)
