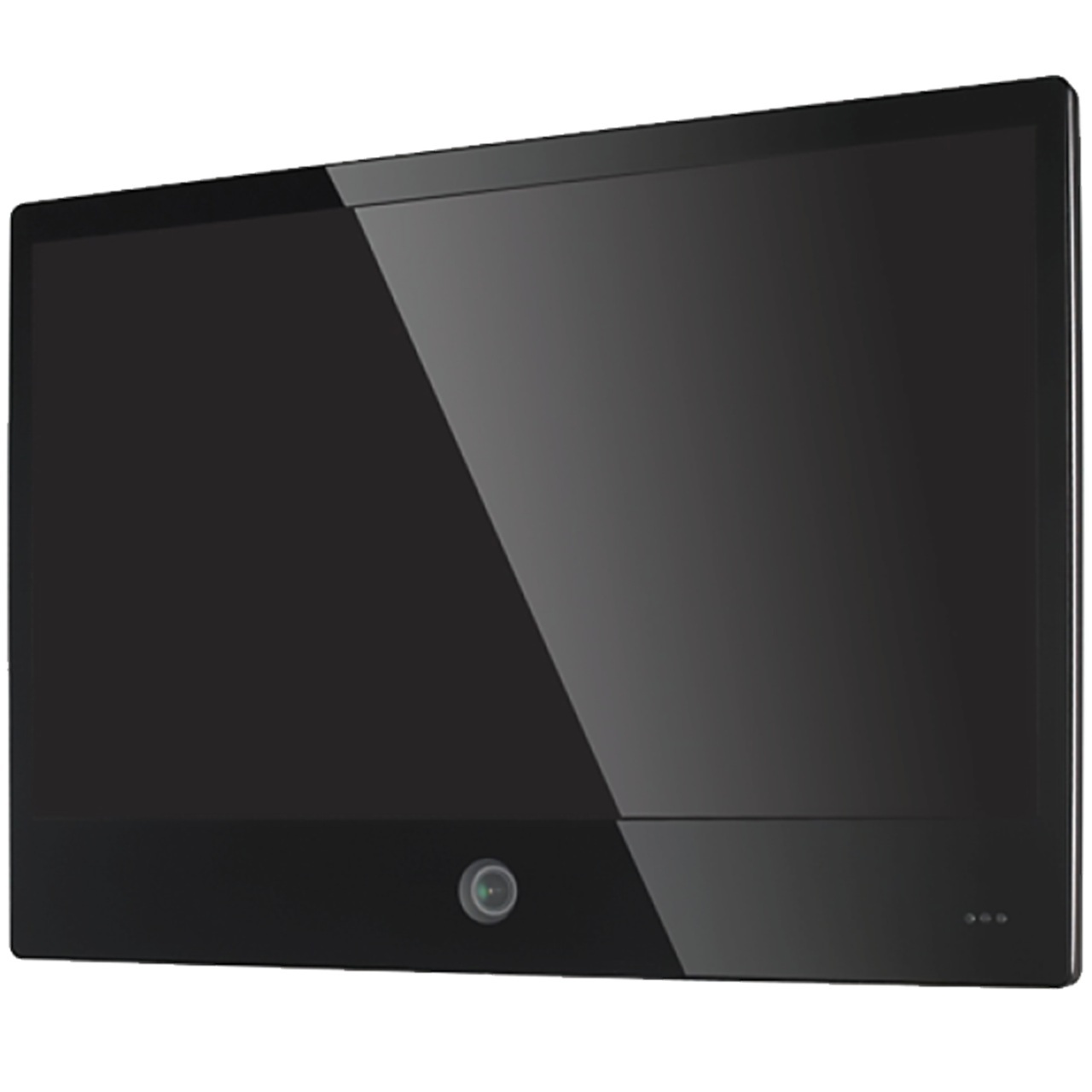

SMT-3211PVM Hanwha Vision 32" LED Public View Monitor with 4.6mm Pinhole Lens 60FPS @ 1080p Indoor WDR Day/Night IP Security Camera 24VDC

Specifications

Display

• Type - LED Monitor
• Color - Black
• Screen Size - 32inch
• Max. Resolution - 1920x1080
• Contrast Ratio - 1200:1
• Brightness - 300 NT
• Aspect Ratio - 16:9
• Viewing Angle (H/V) - 178°/178°
• Noise Reduction Control - 3D Comb Filter
• Response Time - 8ms
• Front Glass - Glare reduction coating
• Mounting - VESA 100 x 100mm / 200 x 100mm, stand not included

Camera

• Imaging Device - 1/2.8" 2M CMOS
• Total Pixels - 1,945 (H) x 1,109 (V) 2.16M
• Effective Pixels - 1,945 (H) x 1,097 (V) 2.13M
• Scanning System - Progressive Scan
• Min. Illumination - Color: 0.06 Lux (1/30sec, F2.5)

Lens

• Focal length - 4.6mm pinhole
• Max. Aperture ratio - F2.5
• Angular Field of View - H: 73.8Ëš / V: 39.6Ëš / D: 86.8Ëš
• Min. Object Distance - 0.98ft (0.3m)

Connectivity

Input

• Video - HDMI (1), VGA (1)
• Audio - Stereo mini jack
• USB - USB (S/W update only)
• Network - RJ-45 (10/100BASE-T)
• Alarm - External input

Output

• Audio - Stereo mini jack

Sound

• Speaker Type - Built-in speaker (2x2 W)

Operational

• Monitor OSD - Off / On (Displayed up to 85 characters) / OSD blinking, Pre-configured Text "Recording in progress"
• Day & Night - Auto (Electrical) / Color / B/W
• Backlight Compensation - Off / BLC / HLC (Masking / Dimming) / WDR
• Wide Dynamic Range - 150dB
• Contrast Enhancement - SSDR (Off / On)
• Digital Noise Reduction - SSNRV (2D+3D noise filter) (Off / On)
• Digital Image Stabilization - Off / On
• Face Detection - Up to 6 faces detectable in real time - Detection distance : up to 50ft (15.24m) - Overlay color changeable : Blue / Red / Green / Orange / Black
• Motion Detection - Off / On (8ea, 8point polygonal zones), Handover
• Privacy Masking - Off / On (32ea, Polygonal) - Color : Grey / Green / Red / Blue / Black / White, Mosaic
• White Balance - ATW / AWC / Manual / Indoor / Outdoor (Included mercury & Sodium)
• LDC (Lens Distortion Correction) - Off / On (5 levels with min / max)
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
• Flip / Mirror - Off / On, Hallway view : 90Ëš/270Ëš
• Video & Audio Analytics - Tampering, Loitering, Directional detection, Defocus detection, Fog detection, Virtual line, Enter / Exit, (Dis)Appear, Face detection, Motion detection, Digital auto tracking
• Alarm Triggers - Motion detection, Video & Audio analytics, Network disconnect
• Alarm Events - File upload via FTP, E-mail, Notification via E-mail, Local storage (SD/SDHC/ SDXC) or NAS recording at event triggers, External output, DPTZ preset

Network

• Video Compression Format - H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG
• Resolution - 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
• Max. Framerate - H.265 / H.264 : Max. 60fps at all resolutions, MJPEG : Max. 30fps
• Smart Codec - Manual mode (Area-based : 5ea), WiseStream II
• Video Quality Adjustment - H.265 / H.264 : Target bitrate level control, MJPEG : Target bitrate level control
• Bitrate Control - Method H.265 / H.264 : CBR or VBR, MJPEG : VBR
• Streaming Capability - Multiple streaming (Up to 10 profiles)
• Protocol - TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
• Security - HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1X authentication (EAP-TLS, EAP-LEAP)
• Edge Storage - SD/SDHC/SDXC (Up to 256GB)
• Application Programming Interface - ONVIF profile S/G, SUNAPI (HTTP API), Wisenet Open Platform

Electrical

• Input Voltage - DC24V
• Power Consumption - 55W max.

Environmental

• Operating Temperature/ Humidity - +32°F ~ +104°F (0°C ~ +40°C) / Less than 90% RH
• Storage Temperature / Humidity - -4°F ~ +140°F (-20°C ~ +60°C) / Less than 90% RH

Mechanical

• Dimensions (WxHxD) - 32.12" x 20.26" x 2.31" (76.5 x 51.46 x 5.87cm)
• Weight - 30lbs
