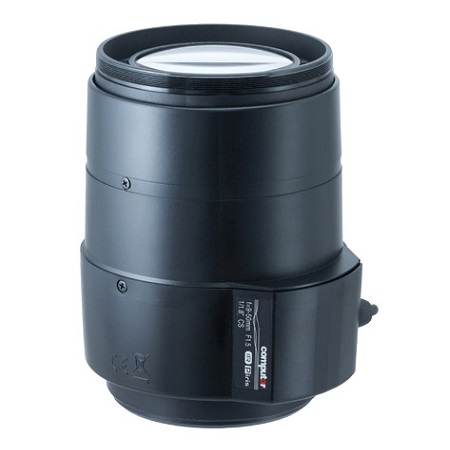

EG6Z0915FCS-MPWIR Computar CS-Mount 1/1.8" 9-50mm Varifocals F1.5 DC Iris 4K

Specifications

Optical Specifications

• Model No - EG6Z0915FCS-MPWIR
• Focal Length - 9mm ‐ 50mm
• F‐Number
• Wide - F1.5 ‐ F16C
• Tele - F1.6 ‐ F16C
• Max. Image Format - 7.1mm x 5.4mm (φ8.9mm)
• Angle of View
• 1/1.8 type (16:9)
• Diagonal - 52.5° - 10.2°
• Horizontal - 46.1° - 9.0°
• Vertical - 26.3° - 5.2°
• 1/1.8 type (4:3)
• 52.5°-10.2°
• 42.3° - 8.2°
• 32.4° - 6.3°
• Min. Objective Distance - 3m from front of lens
• Effective Lens Aperture - Front:φ44.7mm Rear:φ9.6mm
• Back Focal Length
  • Wide - 9.2 mm (in Air)
  • Tele - 9.2 mm (in Air)
• Flange Back Length - 12.5mm (In Air)

Mechanical & Electrical Specifications

• Control
• Iris - Stepping Motor
• Focus - Manual
• Zoom - Manual
• Tripod Screw - 1/4 ‐20UNC
• Dimensions - As per the attached drawing
• Mount - CS mount
• Weight - 278g
• Operating Temperature - ‐20°C ‐ +60°C

EG6Z0915FCS-MPWIR Specification PDF
