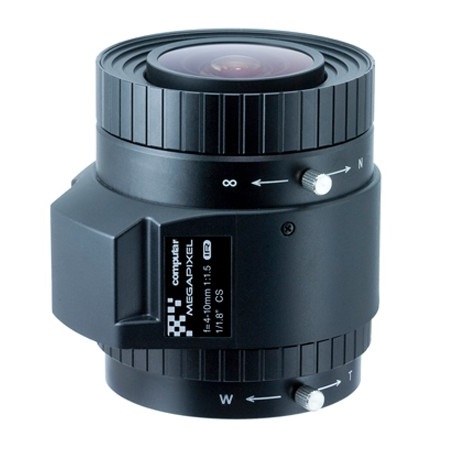

EG3Z0409FCS-MPWIR Computar CS-Mount 1/1.8" 4-10mm Varifocals F0.9 DC Iris 4K

EG3Z0409FCS-MPWIR Computar CS-Mount 1/1.8" 4-10mm Varifocals F0.9 DC Iris 4K

EG3Z0409FCS-MPWIR Computar CS-Mount 1/1.8" 4-10mm Varifocals F0.9 DC Iris 4K

EG3Z0409FCS-MPWIR Computar CS-Mount 1/1.8" 4-10mm Varifocals F0.9 DC Iris 4K

EG3Z0409FCS-MPWIR Computar CS-Mount 1/1.8" 4-10mm Varifocals F0.9 DC Iris 4K

There are currently no active sales or promotions related to this item.

SKU: EG3Z0409FCS-MPWIR

Brand: Computar

1/1.8" Format
4K
4.0-10mm
F1.6
HOV 120.1o-46.3o
DC Auto-Iris
Precise Focus Adjustment
IR Corrected Optics
Corner Brightness

More details...

There are currently no active sales or promotions related to this item.

MPN: EG3Z0409FCS-MPWIR

Availability: Based on Factory Availability

MSRP Price: $782.61

Price: $782.61

Quantity:

Add to List

Already a DWG Dealer? - Sign In to view pricing.

Product Details

Specifications

Optical Specifications

Model No - EG3Z0409FCS-MPWIR
Focal Length - 4mm ‐ 10mm
F‐Number

Wide - F0.9 ‐ F360C
Tele - F1.6 ‐ F360C

Max. Image Circle - φ8.9mm
Angle of View

1/1.8 type (16:9)

Diagonal - 147.8°-53.3°
Horizontal - 120.1° - 46.3°
Vertical - 62.1° - 25.9°

1/1.8 type (4:3)

147.8°-53.3°
107.6° - 42.4°
77.2° - 31.7°

Min. Objective Distance - 100cm from front of lens
Effective Lens Aperture - Front : φ33.9mm Rear : φ10.7mm
Back Focal Length
- Wide - 8.01 mm
- Tele - 8.01 mm (in Air)
Flange Back Length - 12.5mm

Mechanical & Electrical Specifications

Control

Iris - DC Auto Iris
Focus - Manual
Zoom - Manual

Tripod Screw - 1/4 ‐20UNC
Dimensions - As per the attached drawing
Mount - CS mount
Weight - 384g
Operating Temperature - -20℃ - +60℃ (TBD)

EG3Z0409FCS-MPWIR Specification PDF
