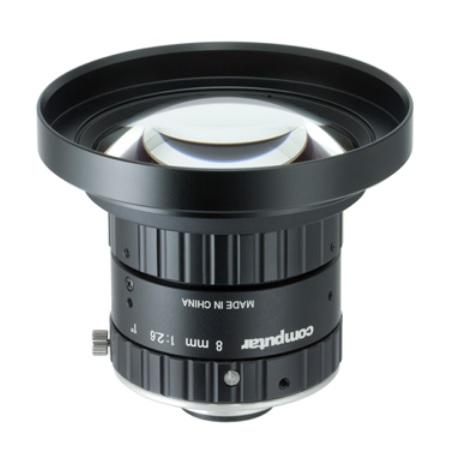

V0826-MPZ Computar 1" 8mm F2.6, 10 Megapixel Ultra Low Distortion Lens

Specifications

• Focal Length - 8mm
• Max. Aperature Ratio - 1:2.6
• Max. Image Format - 12.8mm x 9.6mm(φ 16mm)
• Operation Range
• Iris - F2.6 - F16.0
• Focus - 0.1m - 1nf.
• Control
  • Iris - Manual
  • Focus - Manual
• Object Dimension at M.O.D.
  • 1 Type - 189.9mm x 140.0mm
  • 2/3 Type - 127.8mm x 94.8mm
  • 1/1.8 Type - 103.7mm x 77.2mm
• Angle of View - 1 Type
• D - 88.8°
• H - 76.9°
• V - 61.5°
• Angle of View - 2/3 Type
  • D - 68.6°
  • H - 57.1°
  • V - 44.2°
• Angle of View - 1 1/8 Type
  • D - 58.2°
  • H - 47.8°
  • V - 36.6°
• Operating Temperature - -10°C ‐ +50°C
• Effective Lens Aperture
  • Front - φ49.4mm
  • Rear - φ15.1mm
• Distortion
  • 1 Type - -0.8%
  • 2/3 Type - -2.1%
  • 1 /1.8 Type - -1.9%
• Back Focal Length - 10.6mm
• Flange Back Length - 17.526mm
• Mount - C-Mount
• Dimensions - φ69.5mm x 52.93mm, φ85.0mm x 53.83mm (with ZM0810 )
