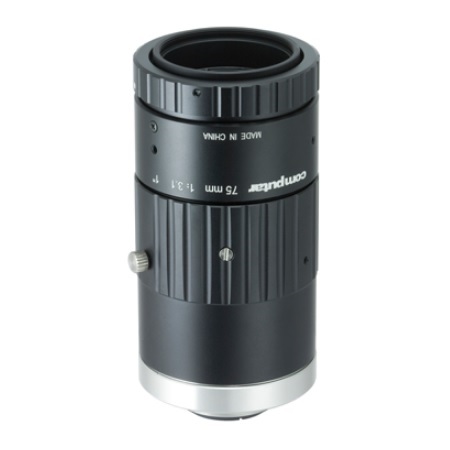

V7531-MPZ Computar 1" 75mm F3.1 10 Megapixel Ultra Low Distortion Lens

Specifications

• Focal Length - 75mm
• Max. Aperature Ratio - 1:3.1
• Max. Image Format - 12.8mm x 9.6mm(φ 16mm)
• Operation Range
• Iris - F3.1 - F16.0
• Focus - 0.25m - 1nf.
• Control
  • Iris - Manual
  • Focus - Manual
• Object Dimension at M.O.D.
  • 1 Type - 38.9mm x 29.2mm
  • 2/3 Type - 26.8mm x 20.1mm
  • 1/1.8 Type - 21.9mm x 16.4mm
• Angle of View - 1 Type
• D - 12.2°
• H - 9.8°
• V - 7.3°
• Angle of View - 2/3 Type
  • D - 8.4°
  • H - 6.7°
  • V - 5.0°
• Angle of View - 1 1/8 Type
  • D - 6.9°
  • H - 5.5°
  • V - 4.1°
• Operating Temperature - -10°C ‐ +50°C
• Effective Lens Aperture
  • Front - φ23.6mm
  • Rear - φ16.5mm
• Distortion
  • 1 Type - -0.0%
  • 2/3 Type - 0.0%
  • 1 /1.8 Type - 0.0%
• Back Focal Length - 12.0mm
• Flange Back Length - 17.526mm
• Mount - C-Mount
• Filter Size - M30.5 P=0.5mm
• Dimensions - φ42.0mm x 79.8mm
• Weight - 176.1g

V7531-MPZ Specification PDF
