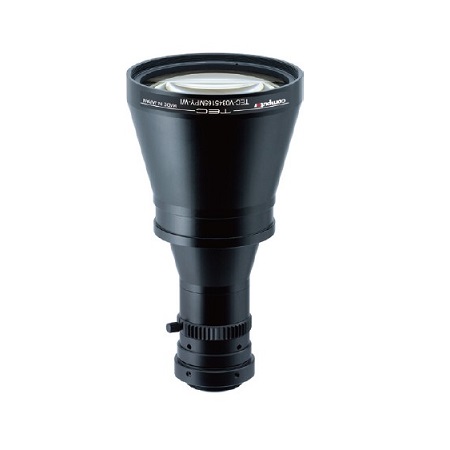

TEC-V0345165MPY-WI Computar C-Mount 12MP 1.1" 165.2mm Telecentric Lens 0.345x Magnification

SKU: TEC-V0345165MPY-WI

Brand: Computar

Compatible with up to 12MP sensors on 1.1" cameras
Variable manual iris (F5-32.4)
Specialized for the Sony IMX253, 3.45μm
C-mount
Designed for a 165.2mm WD (working distance)
Low TV distortion correction up to the outermost corner (-0.024%) for optimal machine vision performance
Capable of viewing 1pixel as 10μm
Ideal applications include measurement, positioning, and appearance inspection

More details...

MPN: TEC-V0345165MPY-WI

Availability: Based on Factory Availability

MSRP Price: $3,019.57

Price: $3,019.57

Quantity:

Add to List

DWG Dealer Program Become a DWG Dealer to see your pricing. Dealer pricing, quoting, volume discounts, and sales support on thousands of products.

Become a DWG Dealer → DWG Dealer Sign In

Product Details

Specifications

Model No - TEC-V0345165MPY-WI
Magnification - 0.345X
Working Distance - 165.2mm
Effective F Number - 5-32.4
Max. Image Format - φ 17.6mm
Control
- Iris - Manual
- Focus
Field of View - 41.1mm(H) x 30.1mm(V) 1.1"
Resolving Power *1 - 9.7μm
Depth of Field *2 - 6.63mm
NA - 0.0345
TV Distortion - 1.1 type, -0.024%
Back Focal Length - 28.375mm (Lens back)
Flange Back Length - 17.526mm
Mount - C-Mount
Filter Size - M72 x P 0.75mm
Dimensions - φ 75mm x 160.8mm
Weight - 380g
Operating Temperature - 10°C - +50°C

TEC-V0345165MPY-WI Specification PDF
