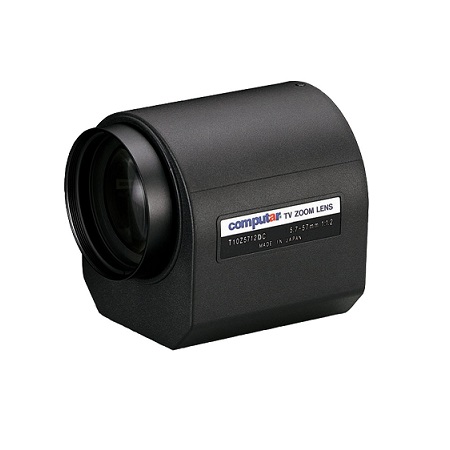

T10Z5712DC-CS Computer CS Mount 1/3" 5.7-57mm F1.2 10X Motorized Zoom DC Auto Iris 4-Pin Connector

Computar Motorized Zoom Lenses provide remote control of focal length, iris and focus through the use a lens controller, for use where variable focal length and remote control are required. They are ideal for applications requiring long distance surveillance in parking lots, highways, etc.

Specifications

• Model No - T10Z5712DC-CS
• Focal Length - 5.7mm - 57mm
• Max. Aperture Ratio - 1:1.2
• Max. Image Format - 4.8mm x 3.6mm(φ6mm)
• Operation Range
  • Iris - F1.2 ‐ F560C
  • Focus - 1.8m ‐ lnf.
  • Zoom - 5.7mm ‐ 57mm
• Control
  • Iris - DC Auto Iris
  • Focus - Motorized
  • Zoom - Motorized
• Object Dimension at M.O.D
  • 5.7mm - 147.6cm x 110.8cm
  • 57mm - 15.1cm x 11.6cm
• Angle of View
  • D - 54.2° - 5.9°
  • H - 44.6°‐ 4.8°
  • V - 34.2°‐ 3.7°
• Supply Voltage - Iris , Focus - DC8V, Zoom - DC8V
• Current - Iris, Focus - 25mA or less, Zoom - 25mA or less
• Response Time - Iris, Focus - Approx. 2 sec, Zoom - Approx. 3.5 sec.
• Coil
  • Drive - 190Ω
  • Control - 1000Ω
• Operating Temperature - 10°C ‐ +50°C
• Effective Lens Aperture
  • Front - φ45.0mm
  • Rear - φ8.6mm
• Back Focal Length - 8.5mm
• Flange Back Length - 12.5mm
• Mount - CS‐Mount
• Filter Size - M49 P=0.75mm
• Tripod Screw - 1/4 - 20UNC
• Dimensions - W68.5mm x H76.3mm x D88mm
• Weight - 460g
