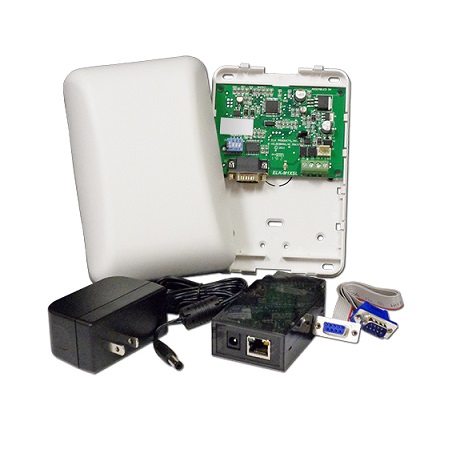

ELK-M1XSLC ELK M1 Interface Kit for Lutron Caséta Wireless or Homeworks QS

The ELK-M1XSLC Interface Kit has been enhanced to support Lutron's Homeworks and Caséta products. Interfacing M1 Control to Lutron allows intelligent control of devices in response to security system actions or conditions. The most typical integration devices supported are:Lights, Shades, and Keypad controllers.

Specifications

• Connects to the ELK-M1 Keypad Databus
• Addressable as a TYPE 5 Databus (ID 1-7)
• Operating Voltage - 12 Volts DC Supplied from M1
• Current Draw - 31mA
• Activity/Status LED (Orange)
• Auto-Reset Hardware Watchdog Circuit
• Housing Dimensions - 4.25" x 6.375" x 2.125"
• Circuit Board - 2.75" x 3.95"
• Connects to IP232 via RS232 and null modem (Incl.)
• Connects to M1 via 4 screw terminals

Package Contents

• ELK-M1XSLU M1 Interface for Lutron
• Plastic Housing
• ELK-IP232 Serial to Ethernet Bridge
• ELK-P1216 1.6A 12Vdc Power Supply
• ELK-W040A DB9 Pin Serial Cable Assembly
• 4 #6 Plastic Anchors
• 4 #6 Pan Head Sheet Metal Screws
• Mini Null Modem Adapter
• Instructions

ELK-M1XSLC Manual
