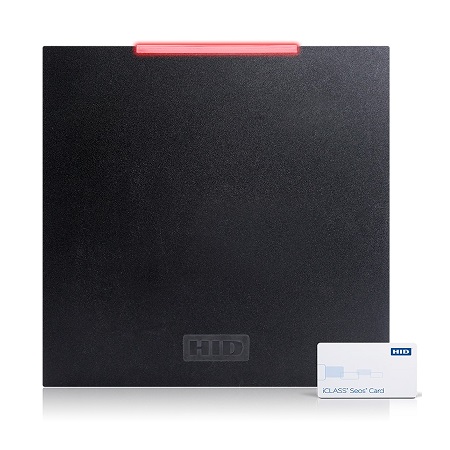

KT-SE-940-001 Kantech R90 iClass SE Reader Maximum Compatibility 13.56 MHz Credential Support Wiegand Controller Communication Terminal Strip HID Elite Keyset - Special Order

HID Global's iCLASS SE platform goes beyond the traditional smart card model to offer a secure, standards-based and flexible platform that has become the new benchmark for highly adaptable, interoperable and secure access control solutions.

Specifications

• Model - R90
• Base Part Number - 940N
• Typical Read Range1
  • 13.56 MHz Single Technology ID-1 Cards – SIO Data Model - iCLASS Seos: 4.7" (12 cm), iCLASS: 14.2" (36 cm), MIFARE Classic: 9.4" (24 cm), MIFARE DESFire EV1: 5.9" (15 cm)
  • 13.56 MHz Single Technology Tags/Fobs – SIO data Model - iCLASS: 6.7" (17 cm), MIFARE Classic: 3.1" (8 cm)
• Mounting - Metal gooseneck pedestal, without a metal back plate. See Installation Guide for details
• Color - Black
• Keypad - No
• Dimensions - 13.1" x 13.1" x 1.55" 33.3cm x 33.3cm x 3.9cm
• Product Weight (Pigtail) - N/A
• Product Weight (Terminal Strip) - 4lb 1oz (1844g)
• Operating Voltage Range - 12 VDC or 24 VDC
• Current Draw - Standard Power Mode2 (mA) - 110 @ 12V
• Current Draw - Intelligent Power Management (IPM) Mode2 (mA) - 30 @ 12V
• Peak Current Draw - Standard Power or IPM Mode2 (mA) - 300 @ 12V
• NSC3 Power Consumption - Standard Power Mode - 1.3 @ 12V
• NSC3 Power Consumption - w/ IPM - .4 @ 12V
• Operating Temperature - -31° to 150° F (-35° to 65° C)
• Storage Temperature - -67° to 185° F (-55° to 85° C)
• Operating Humidity - 5% to 95% relative humidity non-condensing
• Environmental Rating - IP65
• Transmit Frequency - 13.56 MHz
• 13.56 MHz Card Compatibility - Secure Identity Object (SIO) on iCLASS Seos, iCLASS SE/SR, MIFARE DESFire EV1 and MIFARE Classic (On by Default) - MIFARE Classic and MIFARE DESFire EV1 custom data models - standard iCLASS Access Control Application (order with Standard interpreter) - ISO14443A (MIFARE) CSN, ISO14443B CSN, ISO15693 CSN - FeliCaâ„¢4 CSN, CEPAS4 CSN or CAN
• Communications - Wiegand, Clock-and-Data, Open Supervised Device Protocol (OSPD) via RS485
• Panel Connection - Terminal Strip
• Reader Management - HID Reader Manager Mobile App for HID Mobile Access / OSDP infield upgrade, configuration, firmware upgrade and diagnostics
• Certifications - UL294/cUL (US), FCC Certification (US), IC (Canada), CE (EU), RCM (Australia, New Zealand), SRRC (China), KCC (Korea), NCC (Taiwan), iDA (Singapore), RoHS, MIC (Japan)4
• Cryto Processor Hardware Common Criteria Rating - EAL5+
• Patents - www.hidglobal.com/patents
• Housing Material - UL94 Polycarbonate
• Manufactured with % of recycled content (Pigtail) - N/A
• Manufactured with % of recycled content (Terminal Strip) - 11.00%
• UL Ref Number - R90E
• Warranty - Limited Lifetime

KT-SE-940-001 Specifications PDF
