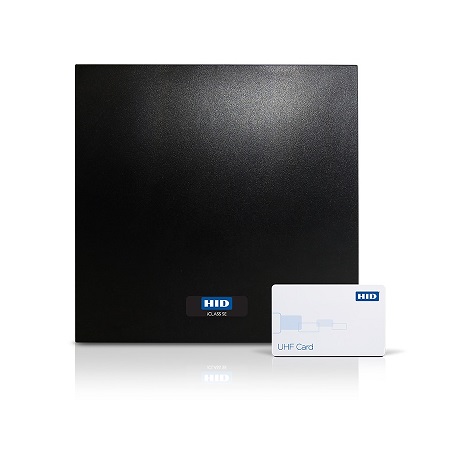

KT-SE-U90-001 Kantech iCLASS SE U90 UHF Long Range Reader - Special Order

HID Global's iCLASS SE U90 Long Range Readers offer an extended range solution for parking and gate control. Featuring advanced encryption technology, the solution delivers the most secure ultra-high frequency (UHF) access control on the market. With a read range of up to five meters, the iCLASS SE U90 can read multiple credential types and support a mixed credential population.

Specifications

• Model Name - iCLASS SE U90 Long Range Reader
• Base Part Number - RDRSEU90

Electronic

• Transmit Frequency - 865 - 868 MHz / 902 - 928 MHz dependent on regional regulations
• Typical Maximum Read Range - 3 to 5 meters
• Input Voltage (VDC) - 12VDC or 24VDC
• Current
  • Standby Avg1 320mA @ 12VDC / 160mA @ 24VDC
  • Max AVG2 400mA @ 12VDC 200mA @ 24VDC
  • PEAK3 1.0A @ 12VDC 0,5A @ 24VDC
• Cable Length
  • Wiegand = 500 ft (152 m) – 22 AWG 300 ft (91 m) – 24 AWG
  • RS-485 = 4000 ft (1,219 m) – 24 AWG

Physical

• Dimensions - 9.10" x 9.10" x 2.75" (23.1 cm x 23.1 cm x 7.0 cm)
• Color - Black
• Housing Material - UL94 Polycarbonate
• Mounting - Drill mounting box to meet application. Drill points provided for US and EU wall boxes and 75 mm, 100 mm, 200 mm VESA mounts.

Thermal

• Storage Temperature - -67° to 185° F (-55° to 85° C)
• Operating Temperature - -30° to 150° F (-35° to 65° C)
• Operating Humidity - 5% to 95% relative humidity non-condensing
• Environmental Rating - IP65

Other

• Standards - UL294/cUL (US & Canada), CB Scheme, FCC Certification (US), IC (Canada), CE (EU),IFETEL (Mexico), ANATEL (Brazil)
• Crypto-Processor Hardware Common Criteria Rating - EAL5+
• Card Compatibility - UHF EPC Class 1 Gen 2, ISO 18000-6C

KT-SE-U90-001 Specifications PDF
