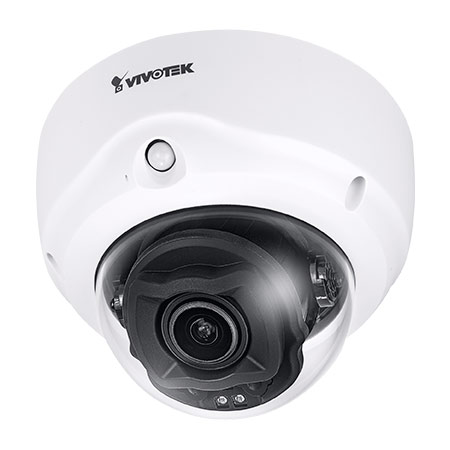

[DISCONTINUED] FD9187-HT Vivotek 2.7~13.5mm Varifocal 30FPS @ 5MP Indoor IR Day/Night WDR Dome IP Security Camera 12VDC/24VAC/PoE

Specifications

Model - FD9187-HT

System Information

• CPU - Multimedia SoC (System-on-Chip)
• Flash - 256MB
• RAM - 1GB

Camera Features

• Image Sensor - 1/2.7" Progressive CMOS
• Maximum Resolution - 2560 x 1920 (5MP)
• Lens Type - Vari-focal, Remote Focus
• Focal Length - f= 2.7 ~ 13.5 mm
• Aperture - F1.4 ~ F2.8
• Auto-iris - P-iris
• Field of View - 30 ~ 100° (Horizontal), 23 ~ 72°(Vertical), 38 ~ 135° (Diagonal)
• Shutter Time - 1/5 sec. to 1/32,000 sec.
• WDR Technology - WDR Pro
• Day/Night - Yes
• Removable IR-cut Filter - Yes
• Minimum Illumination - 0.06 Lux @ F1.4 (Color), <0.01 lux @ F1.4 (B/W), 0 Lux with IR illumination on
• Pan Range - 350°
• Tilt Range - 80°
• Rotation Range - 180°
• Pan/Tilt/Zoom Functionalities - ePTZ:48x digital zoom (4x on IE plug-in, 12x built-in)
• IR Illuminators - Built-in IR illuminators up to 50 meters with Smart IR II, IR LED*4
• On-board Storage - Slot type: MicroSD/SDHC/SDXC card slot Seamless Recording

Video

• Compression - H.265, H.264, MJPEG
• Maximum Frame Rate - 30 fps @ 2560 x 1920, 60 fps @ 1920 x 1080
• Maximum Streams - 3 simultaneous streams
• S/N Ratio - 52 dB
• Dynamic Range - 120 dB
• Video Streaming - Adjustable resolution, quality and constant bit rate control, Smart Stream III
• Image Settings - Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, video rotation, 3DNR, DIS, HLC

Audio

• Audio Capability - Two-way Audio (full duplex)
• Compression - G.711, G.726
• Interface - Built-in microphone, External microphone input, External line output

Network

• Users - Live viewing for up to 10 clients
• Protocols - IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/ RTP/RTCP, IGMP, CIFS/SMB, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL/TLS
• Interface - 10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard
• ONVIF - Supported, specification available at www.onvif.org

Intelligent Video

• Smart Motion Detection - Five-window video motion detection, human detection, time filter
• VCA - Standard VCA (optional) *Including line crossing detection, field detection, loitering detection
• VADP Package - Genetec package, Trend Micro IoT Security, Stratocast, Smart Motion Detection

Alarm and Event

• Alarm Triggers - Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, PIR detection, MicroSD card life expectancy
• Alarm Events - Event notification using digital output, HTTP, SMTP, FTP, NAS server and MicroSD card File upload via HTTP, SMTP, FTP, NAS server and MicroSD card

General

• Connectors - RJ-45 cable connector for 10/100Mbps, Network/PoE connection, Audio line input, Audio line output, AC 24V power input (optional), DC 12V power input, Digital input *1, Digital output *1
• LED Indicator - System power and status indicator
• Power Input - IEEE 802.3af PoE Class 0, DC 12V, AC 24V (optional) (Redundant Power)
• Power Consumption - PoE: Max. 11.4 W, DC 12V: Max. 10.4 W, AC 24V: Max. 10.56 W
• Dimensions - 139 x 104 mm
• Weight - 538 g
• Safety Certifications - CE, FCC Class B, UL, LVD, VCCI, C-Tick
• Operating Temperature - Starting Temperature : 32°F ~ 113°F, Working Temperature : 14°F ~ 113°F
• Humidity - 90%
• Warranty - 36 months

System Requirements

• Operating System - Microsoft Windows 8/7
• Web Browser - Mozilla Firefox 7~43 (streaming only), Internet Explorer 10/11
• Other Players - VLC: 1.1.11 or above, QuickTime: 7 or above

FD9187-HT Specification PDF
