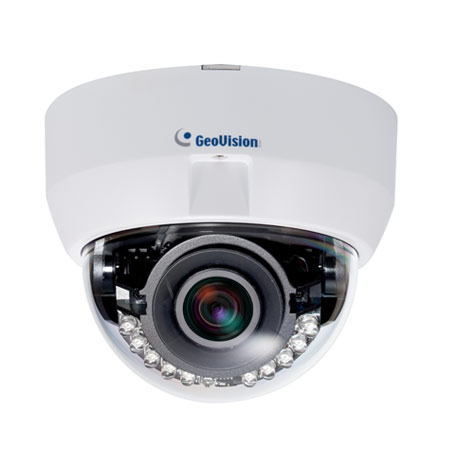

[DISCONTINUED] GV-FD8700-FR Geovision 3.3~12mm Varifocal 30FPS @ 8MP Indoor IR Day/Night WDR Dome IP Security Camera 12VDC/PoE

GV-FD8700-FR Fixed IP Dome camera features cutting-edge face recognition technology that allows users to identify important personnel from its database, on the fly. Up to 10,000 face profiles can be defined in the camera's database, and also categorized to meet various corporate needs, such as facilitating customer service or security management and more. The camera's face recognition mechanism is effective for a distance of up to 4 m (13.12 ft) while able to identify up to 10 persons simultaneously. With a recognition time of within 2 seconds, it can quickly identify VIP guests and/or potential intruders. When integrated with GV-VMS, the camera's face recognition can be used to trigger alerts according to the predefined rules, thereby providing an improved, reliable security management.

Specifications:

Camera

• Image Sensor - 1/2.5" progressive scan super low lux CMOS
• Picture Elements - 3840 (H) x 2160 (V)
• Minimum Illumination - Color: 0.05 Lux, B/W: 0.04 Lux, IR ON:�0 Lux
• Shutter Speed - Automatic, Manual (1/30 ~ 1/8000 sec)
• White Balance - Automatic, Manual (2800 ~ 8500K)
• Gain Control - Automatic
• S/N Ratio - 56 dB
• WDR - Yes
• Dynamic Range - Up to 96 dB

Lens

• Megapixel - Yes�
• Day / Night - Yes (with removable IR-cut filter)
• Focal Length - 3.3 ~ 12 mm
• Lens Type - Varifocal
• Maximum Aperture - F/1.4
• Mount - �14 mm
• Horizontal FOV - 106° ~ 42°
• Image Format - 1/2.5"
• Operation - Focus: Manual (w/lock), Zoom: Manual (w/lock), Iris: P‐Iris
• Max. Torque (Focus / Zoom Screws) - 0.049 N.m
• IR LED Quantity - 20 IR LEDs
• Max. IR Distance - 131.23 ft

Operation

• Video Compression - H.265, H.264
• Video Streaming - Stream 1 from H.265 or H.264, Stream 2 from H.264, Streak 3 from H.264
• Frame Rate - 30 fps at 3840 x 2160 (60/50 Hz) * The frame rate and performance may vary depending on the number of connections and data bit‐rates (different scenes).
• Image Setting - Brightness, Contrast, Saturation, Sharpness, White Balance, Flicker‐less, Image Orientation, Shutter Speed, D/N Sensitivity, Backlight Compensation, WDR, Defog
• Audio Compression - G.711, ACC
• Audio Support - One‐way audio (external microphone required)
• Sensor Input - 1 Input (Dry Contact)
• Alarm Output - 1 Digital output (200 mA 5V DC)

Intelligent Video

• Video Analytics - Motion Detection, Tampering Alarm, Face Detection, Face Recognition

Video Resolution

• Main Stream - 4:3 2560 x 1920, 2048 x 1536, 1600 x 1200, 1280 x 960, 16:9 3840 x 2160 (Default), 2560 x 1440, 1920 x 1080, 1280 x 720
• Sub Stream - 1024 x 768, 640 x 480, 320 x 240, 16:9 1280 x 720, 640 x 360 (Default)
• Third Stream - 4:3 640 x 480, 320 x 240, 16:9 640 x 360 (Default)

Network

• Interface - 10/100 Ethernet
• Protocol - DHCP, DynDNS, FTP, HTTP, HTTPS, NTP, ONVIF (Profile S), QoS (DSCP), RTSP, SNMP, SMTP, TCP, UDP, UPnP, 3GPP/ISMA

Mechanical

• Temperature Detector - Yes
• Camera Angle Adjustment - Pan 0° ~ 350°, Tilt 0° ~ 75°, Rotate 0° ~ 340°
• Connectors - Power: 2-pin terminal block, PoE, Ethernet: Ethernet (10/100 Base‐T), RJ‐45 cable, Audio: 1 In (3.5 mm phone jack for microphone), 1 Out (3.5 mm phone jack for speaker), Digital I/O: I/O Wires, Local Storage: Micro SD card slot (SD/SDHC/SDXC/UHS‐I, Class 10)
• LED Indicator - 2 LEDs: Power, Status

General

• Environment Temperature - 32 °F ~ 122 °F
• Humidity - 10% to 90% (no condensation)
• Power Source - 12V DC / PoE (IEEE 802.3af)
• Max. Power Consumption - 11.04 W
• Dimensions (without lens) - 4.92" x 3.92"
• Weight - 1.04 lb
• Regulatory - CE, FCC, RCM,LVD, RoHS compliant

Power over Ethernet

• PoE Standard - PoE (IEEE 802.3af Power over Ethernet / PD)
• PoE Power Supply Type - End‐Span and Mid‐Span
• PoE Power Output - Per Port 48V DC, 350mA. Max. 15.4 watts

Web Interface

• Installation Management - Web‐based configuration
• Maintenance - Firmware upgrade through Web Browser or Utility
• Access from Web Browser - Camera live view, video recording, change video quality, bandwidth control, image snapshot, audio, Wide Angle Lens Dewarping, Picture in Picture, Picture and Picture, Privacy Mask, Text overlay, Visual automation
• Language - English / Japanese / Simplified Chinese / Traditional Chinese

Applications

• Software Supported - GV‐DVR / NVR (V8.8.0), GV‐VMS (V17.1.0.100), GV‐Control Center (V3.5.1), GV‐Edge Recording Manager (V1.4.0), GV‐Recording Server / Video Gateway (V1.4.2), GV‐Redundant / Failover Server (V1.1.0.0), GV‐Mobile Server (V1.5.0.0)
• Smart Device Access - GV‐Eye for iOS and Android
• Live Viewing - Web browser, Mobile app

GV-FD8700-FR Specifications PDF
