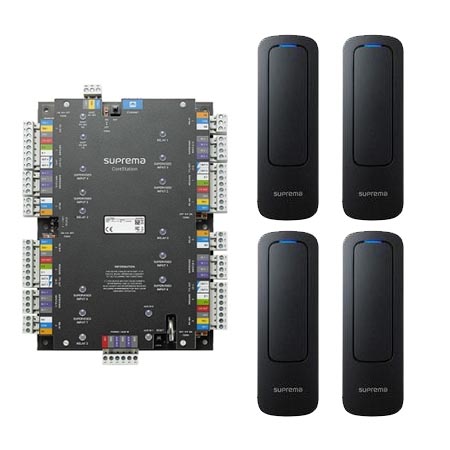

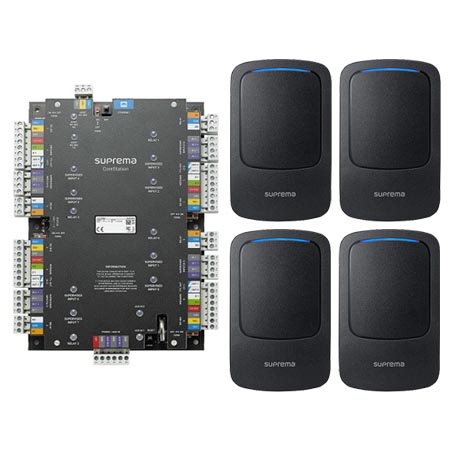

CS-40 Suprema CoreStation 4 Door Biometric Access Controller

Suprema CoreStation is an intelligent door controller which provides the advantages of a biometric-enabled security over a centralized access control systems. Designed up to enterprise-level systems, the CoreStation handles up to 500,000 users with an incredible fingerprint matching speed of up to 400,000 match/sec. With the provisions of high-performance, biometric readiness, Ethernet communication, CoreStation is capable of offering the full features of the BioStar2 platform.

Specifications

Capacity (Fingerprint)

• Users (1:1) * Based on one finger enrollment per user - 500000
• Users (1:N)* Based on one finger enrollment per user - 100000
• Max. Finger per User - 10
• Text Log - 5000000
• Image Log - Not supported

Hardware

• CPU - 1.4 GHz Octa Core
• Memory - 8GB Flash + 1GB RAM
• LCD Type - Not supported
• LED - Multi-color
• Sound - Not supported
• Operating Temperature - 0°C ~ 50°C
• Storage Temperature - -40°C ~ 70°C
• Operating Humidity - 0% ~ 80%, non-condensing
• Storage Humidity - 0% ~ 95%, non-condensing
• Weight - 415 g
• Dimension (WxHxD, mm) - 150 x 214 x 21

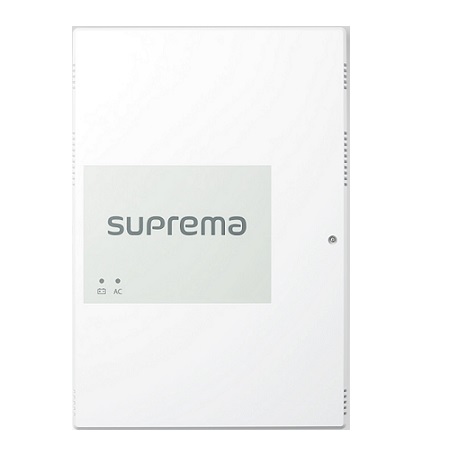

• Tamper - Optional (ENCR-10)
• Certificates - CE, KC, RoHS, REACH, WEEE

Interface

• Wi-Fi - Not supported
• Ethernet - 10/100 Mbps, auto MDI/MDI-X
• RS-485 - 5 ch
• Wiegand - 4 ch
• Relay - 4 relays
• USB - Not supported
• SD Card - Not supported
• PoE - Not supported
• Intercom - Not supported
• RS-485 Communication Protocol - OSDP V2 Compliant
• Supervised Input - 8 ch(TTL input selectable)
• TTL Output - 8 ch
• AUX Input - 2 ch(AC POWER FAIL, TAMPER)

Electrical

• Power - DC 12 V

Connectivity

• Max. Slave Devices (RS-485) - Max. 64 devices (Max. 31 devices per port)
• Max. Wiegand Devices - Max. 132 devices (with DM-20)

CS-40 Specifications PDF
