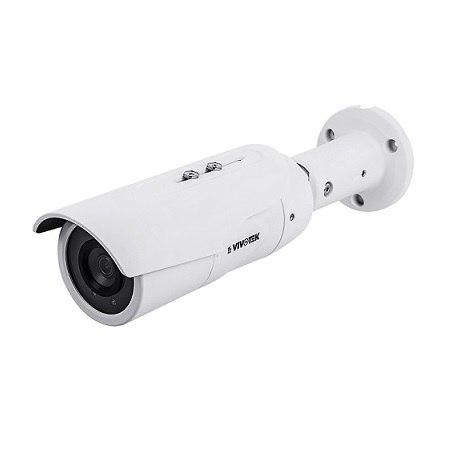

[DISCONTINUED] IB9389-EH Vivotek 3.6mm 30FPS @ 5MP Outdoor IR Day/Night WDR Bullet IP Security Camera PoE

VIVOTEK's IB9389 series is a H.265 bullet network camera equipped with a 5-Megapixel sensor, enabling resolution of 2560 x1920 at 30 fps. Featuring VIVOTEK SNV and WDR Pro technology, the IB9389 series is capable of capturing high-quality imagery in both high-contrast and low-light environments. The IB9389 series offers various lens options for different user scenarios: fixed focus, manual focus, and remote focus lenses

Specifications

Model - IB9389-EH

System Information

• CPU - Multimedia SoC (System-on-Chip)
• Flash - 128MB
• RAM - 512MB

Camera Features

• Image Sensor - 1/2.7"" Progressive CMOS
• Max. Resolution - 2560 x 1920 (5MP)
• Lens Type - Fixed-focal
• Focal Length - 3.6 mm
• Aperture - F2.0
• Iris type - Fixed-Iris
• Field of View - 76° (Horizontal), 56° (Vertical), 100° (Diagonal)
• Shutter Time - 1/5 sec. to 1/32,000 sec
• WDR Technology - WDR Pro
• Day/Night - Yes
• Removable IR-cut filter - Yes
• IR Illuminators - Built-in IR illuminators, effective up to 30 meters with Smart IR
• Minimum Illuminators - 0.06 Lux @ F2.0 (Color), 0.01 lux, F2.0 (B/W) 0 Lux with IR illumination on
• Tilt Range - 90°
• Rotation Range - 180°
• Pan/Tilt/Zoom Functionalities - ePTZ : 48x digital zoom (4x on IE plug-in, 12x built-in)
• On-board Storage - Slot type : MicroSD/SDHC/SDXC card slot Seamless Recording

Video

• Compression - H.265, H.264, MJPEG
• Maximum Frame Rate - 30 fps @ 2560x1920, 60 fps @ 1920x1080
• Maximum Streams - 3 simultaneous streams
• S/N Ratio - 51 dB
• Dynamic Range - 120 dB
• Video Streaming - Adjustable resolution, quality and bitrate, Smart Stream III
• Image Settings - Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, HLC, defog, 3DNR, DIS, video rotation

Network

• Users - Live viewing for up to 10 clients
• Protocols - 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
• Interface - 10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
• ONVIF - Supported, Specification available at www.onvif.org

Intelligent Video

• Smart Motion Detection - Five-window video motion detection, people detection, time filter
• VCA - Standard VCA (optional)
  *Including line crossing detection, field detection, loitering detection
• VADP Package - Genetec Package, Trend Micro IoT Security, Smart Motion Detection*, Stratocast(support) *Smart Motion Detection is only for IB9389-H/EH, IB9389-HT/EHT.

Alarm and Event

• Alarm Triggers - Motion detection, manual trigger, periodical trigger, system boot, recording notification, camera ampering detection, audio detection, MicroSD card life expectancy, shock detection, cybersecurity events (block brute force attack, block cyber attack, quarantine event)
• Alarm Events - Event notification using HTTP, SMTP, FTP, NAS server and MicroSD card File upload via HTTP, SMTP, FTP, NAS server and MicroSD card

General

• Connectors - RJ-45 cable connector for 10/100Mbps Network/PoE connection, Audio line input, Audio line output, AC 24V power input (optional), DC 12V power input, Digital input *1, Digital output *1
• LED Indicator - System power and status indicator
• Power Input - IEEE 802.3af PoE Class 4
• Power Consumption - Max. 19.2 W (Heater on), Max. 8 W (Heater off)
• Dimensions - Ø 86 x 299.5 mm
• Weight - 1005 g
• Casing - IP66, IK10 (Metal Housing)
• Safety Certifications - CE, FCC Class B, UL, LVD, VCCI, C-Tick
• Operating Temperature - Starting Temperature: -40°C ~ 60°C (-40°F ~ 140°F), Working Temperature : -50°C ~ 60°C (-58°F ~ 140°F)
• Humidity - 90%
• Warranty - 36 months

System Requirements

• Operating System - Microsoft Windows 8/7
• Web Browser - Mozilla Firefox 7~43 (streaming only) Internet Explorer 10/11
• Other Players - VLC : 1.1.11 or above, QuickTime: 7 or above

Included Accessories

• Others - Quick installation guide, alignment sticker, screw pack

IB9389-EH Specifications PDF
