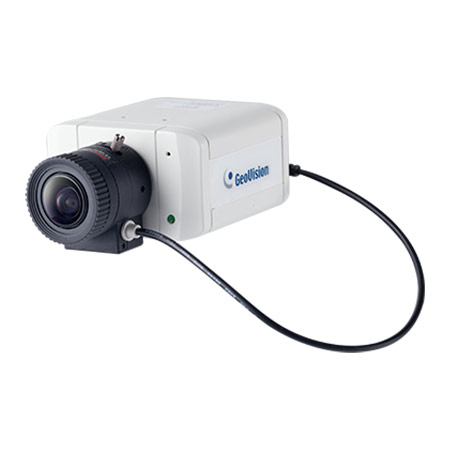

GV-BX8700-FD Geovision 3.6~10mm Varifocal 30FPS @ 8MP Indoor Day/Night WDR Box IP Security Camera 12VDC/PoE

Specifications

Camera

• Image Sensor - 1/2" progressive scan low lux CMOS
• Picture Elements - 3840 (H) x 2160 (V)
• Minimum Illumination - Color: 0.04 Lux , B/W: 0.03 Lux, IR On: 0 Lux
• Shutter Speed - Automatic, Manual (1/30 ~ 1/16,000 sec)
• White Balance -Automatic, Manual (2800 ~ 8500K)
• Gain Control - Automatic
• S/N Ratio - 52 dB
• WDR Pro - Yes
• Dynamic Range - 120 dB

Lens

• Megapixel - Yes
• Day/Night - Yes (with removable IR‐cut filter)
• Lens Type - Varifocal
• Focal Length - 3.6~10mm
• Maximum Aperature - F/1.5
• Mount - CS Mount
• Image Format - 1/1.8"
• Horizontal FOV - 108°~48°
• Operation - Focus: Manual (w/lock), Zoom: Manual (w/lock), Iris: P-Iris

Operation

• Video Compression - H.265, H.264, MJPEG
• Video Streaming - Stream 1 from H.265 or H.264, Stream 2 from H.265, H.264 or MJPEG, Stream 3 from H.265, H.264 or MJPEG
• Frame Rate - 50Hz: 25 fps at 3840 x 2160, 25 fps at 2592 x 1944, 25 fps at 2592 x 1520, 60Hz: 30 fps at 3840 x 2160 (default), 30 fps at 2592 x 1944, 30 fps at 2592 x 1520
• Image Setting - Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker‐less, Image Orientation, Shutter Speed, Backlight Compensation, D/N Sensitivity, WDR, Defog, Low Lux Enhancement, Denoise, Metering
• Audio Compression - G.711
• Audio Support - Two‐Way Audio (external speaker required)
• Sensor Input - 1 Input (Dry Contact)
• Alarm Output - 1 Digital Output (200mA 5V DC)

Face Detection

• Environment - 600 lux
• Detectable Face Angle - Tilt (Up/Down) ± 30°, Swing (Left/Right) ± 60°
• Max. Number of Faces - Up to 32
• Min. Face Image Pixel Requirement - 100 x 100

Video Resolution

• Main Stream - 4:3 - 2048 x 1520, 1600 x 1200, 1280 x 960, 640 x 480, 16:9 - 3840 x 2160 (Default),2592 x 1520, 1920 x 1080 , 1280 x 720, 5:4 - 1280 x 1024
• Sub Stream - 4:3 - 1024 x 768, 640 x 480, 320 x 240, 16:9 - 1280 x 720, 640 x 360 (Default), 448 x 256, 5:4 1280 x 1024, 640 x 512, 320 x 256
• Third Stream (Closed by Default) - 4:3 - 640 x 480, 320 x 240, 16:9 - 640 x 360 (Default), 448 x 256, 5:4 - 640 x 512, 320 x 256

Network

• Interface - 10/100M Ethernet
• Protocol - DHCP, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IPv4, IPv6, Multicast, NTP, ONVIF (Profile S), QoS(DSCP), RTCP, RTSP, SNMP, SMTP, SSL, TCP/IP, UDP, UPnP, 3GPP/ISMA
• Wireless LAN - IEEE 802.11 b/g/n
• Antenna Type - External
• Security - WEP, WPA‐PSK(TKIP), WPA‐PSK(AES), WPA2‐PSK(TKIP), WPA2‐PSK(AES)
• Security Feature - No default ID and Password, 802.1x authentication, HTTPS with a SSL certificate stored in the camera, 256‐bit AES encryption (requires firmware V1.14 or later working with GV‐VMS V18.1 or later)

Mechanical

• Temperature Detector - Yes
• Connectors - Power 2‐pin terminal block, PoE, Ethernet RJ‐45, Audio 1 In (Externally connecting a microphone) 1 Out (Stereo phone jack, 3.5 mm / 0.14"), Digital I/O 3‐pin terminal block, pitch 2.5 mm (0.1"), Auto Iris Yes (with varifocal lens), Local Storage Micro SD card slot (SD/SDHC, SD version 2.0 only, Class 10) *SDXC and UHS‐I card types are not supported, TV‐Out BNC connector, Mini USB GV‐WiFi Adapter or USB hard drive
• LED Indicator - 2 LEDs: Power, Status

General

• Operating Temperature - 32°F ~ 122°F
• Humidity - 10% ~ 90% (non‐condensing)
• Power Source - 12V DC / PoE (IEEE 802.3af)
• Max. Power Consumption - 12V DC: 4.2 W PoE: 6 W
• Dimensions (without lens) - 2.97" x 2.95" x 2.13"
• Weight  - 0.7 lb
• Regulatory - CE, FCC, LVD, RoHS compliant

Power over Ethernet

• PoE Standard - PoE (IEEE 802.3af Power over Ethernet / PD)
• PoE Power Supply Type - End‐Span, Mid‐Span
• PoE Power Output - Per Port 48V DC, 350 mA, Max. 15.4 watts

Web Interface

• Installation Management - Web‐based configuration
• Maintenance - Firmware upgrade through Web Browser or Utility
• Access from Web Browser - Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Text Overlay, Digital PTZ
• Language - Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish

Applications

• Software Supported - GV‐DVR / NVR (V8.7.6 + Patch V8.7.6.2), GV‐VMS (V17.1.0.100 + Patch V17.1.0.17), GV‐Edge Recording Manager Win Version (V1.4.0.0), GV‐Control Center (V3.5.1), GV‐Recording Server (V1.4.2), GV‐Redundant / Failover Server (V1.1.0.0 + Patch V1.1.0.006)
• Smart Device Access -GV‐Eye for iOS and Android
• Live Viewing - Browser (IE, Chrome, Firefox, Safari), Mobile app
