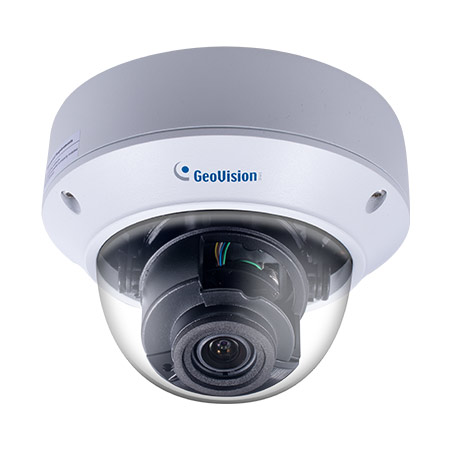

[DISCONTINUED] GV-TVD8710 Geovision 2.8-12mm Motorized 20FPS @ 8MP Outdoor IR Day/Night WDR Vandal Proof Dome IP Security Camera 12VDC/PoE

The Vandal Proof IP Dome is an outdoor camera designed with IK10 vandal resistance and IP67 ingress protection. GV‐TVD8710 supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera is equipped with an automatic IR‐cut filter and IR LEDs for day and night surveillance. Adjustable in 3 axes (pan, tilt and rotate), it offers an entry‐level surveillance solution with all the essential features and excellent image quality. The camera is capable of providing a color live view not only in near darkness but also under contrasting light intensities with its super low lux CMOS image sensor and WDR Pro.

Specifications

Camera

• Image Sensor - 1/2" progressive scan super low lux CMOS
• Picture Elements - 3840 (H) x 2160 (V)
• Minimum illumination - Color - 0.003 Lux (F1.5, AGC ON), IR On - 0 Lux
• Shutter Speed - Automatic, Manual (1/6 ~ 1/100000 sec.)
• White Balance - Automatic, Manual
• Gain Control - Automatic, Manual
• S/N Ratio - 52db
• WDR Pro - Yes
• Dynamic Range - Up to 120 dB

Lens

• Megapixel - 8MP
• Day/Night - Yes (with removable IR-Cut Filter)
• Focal Length - 2.8 ~ 12 mm
• Lens Type - Motorized varifocal lens
• Maximum Aperature - F/1.5
• Mount - Ø14 mm
• Horizontal FOV - 114.8° ~ 47.3°
• Operation - Focus - Automatic / Manual, Zoom - 4.3x Optical Zoom, Iris - Fixed
• IR LED Quantity - 2 IR LEDs
• Max. IR Distance - 98.4 ft.

Operation

• Video Compression - H.265, H.264, MJPEG
• Video Streaming - Triple Streams
• Frame Rate - 20 fps at 3840 x 2160, 30 fps at 2944 x 1656 / 2592 x 1944 / 2560 x 1440 (60 / 50 Hz) *The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes).
• Video Analytics - Motion Detection, Tampering Alarm, Audio Detection, Cross Line, Intrusion, Object Moving, Object Left, Defocus, Scene Change, Face Detection, People Counting *Tampering alarm, audio detection, cross line, intrusion, object moving, object left, defocus, scene change, face detection and people counting are only accessible through the camera's Web interface, which can be used to trigger alerts such as e‐mail and FTP
• Image Setting - Brightness, Contrast, Saturation, Sharpness, Flicker‐less, Image Orientation
• Audio Compression - G.711, AAC (optional)
• Audio Support - Two‐way Audio (external microphone and speaker required)
• Digital I/O - Input: 1 input (Dry Contact), NO / NC, Output: 1 Relay Output (1A 30V DC / 0.3A 125V AC)

Video Resolution

• Main Stream - 3840 x 2160 (Default), 2944 x 1656, 2592 x 1944, 2560 x 1440, 1920 x 1080
• Sub Stream - 1920 x 1080, 1280 x 720, 720 x 576, 704 x 288, 640 x 360 (Default), 352 x 288, Third Stream (Closed by Default) - 720 x 576, 704 x 288, 640 x 360, 352 x 288

Network

• Interface - 10/100 Ethernet
• Ethernet Protocol - 802.1x, ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile G, S, T)

Mechanical

• Temperature Detector - Yes
• Camera Angle Adjustment - Pan - 0° ~ 360°, Tilt - 0° ~ 80°, Rotation - 0° ~ 360°
• Connectors - Power - DC Jack (DV 12V, 1.25A), PoE, Ethernet - RJ-45, Audio - 1 in (Audio In Wire); 1 out (Audio Out Wire) *The Audio In port only supports microphones with power supply, Digital I/O 4‐pin terminal block pitch 3.5 mm (0.14"), Local Storage - Micro SD card slot (SD / SDHC / SDXC / UHS‐I, Class 10) * UHS‐II card type is not supported., TV‐Out - BNC connector

General

• Environment Temperature - -22°F ~ 140°
• Humidity - 0% to 95% (no condensation)
• Power Source - 12V DC / PoE (IEEE 802.3af)
• Max. Power Consumption - 8 W
• Dimensions - 5.8 x 4.4"
• Weight - 1.7 lbs
• Ingress Protection - IP67
• Vandal Resistance - IK10 for metal casing
• Regulatory - CE, FCC, RoHS compliant

Web Interface

• Installation Management - Web‐based configuration
• Maintenance - Firmware upgrade through Web Browser or Utility
• Access from Web Browser - Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Text Overlay, Image Masking
• Language - Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Traditional Chinese

Applications

• Network Storage - GV­DVR / NVR (V8.8.0), GV­VMS (V17.1.0.100), GV­Control Center (V3.5.1), GV‐Edge Recording Manager Windows (V1.4.0), GV‐Recording Server / Video Gateway (V1.4.2), GV­Redundant / Failover Server (V1.1.0.0)
• Smart Device Access - GV‐Eye for iOS and Android
• Live Viewing - Browser (IE, Chrome, Firefox, Safari), Mobile app

GV-TVD8710 Specifications PDF
