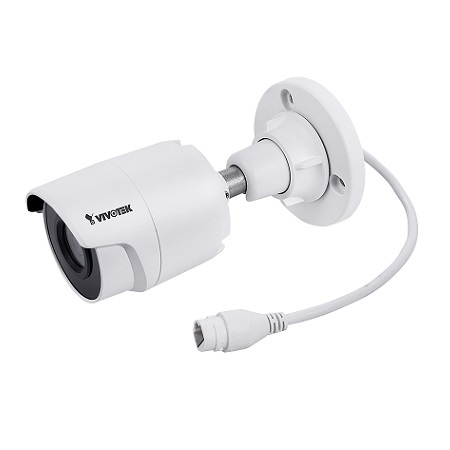

[DISCONTINUED] IB9360-H Vivotek 3.6mm 30FPS @ 1080p Outdoor IR Day/Night WDR Bullet IP Security Camera PoE

VIVOTEK's IB9360-H is a H.265 outdoor bullet network camera equipped with a 2-Megapixel sensor, enabling resolution of 1920x1080 at 30 fps. Featuring VIVOTEK SNV and WDR Pro technology, the IB9360-H is capable of capturing high-quality imagery in both high contrast and low light environments.

Specifications

System Information

• CPU - Multimedia SoC (System-on-Chip)
• Flash - 128MB
• RAM - 256MB

Camera Features

• Image Sensor - 1/2.9" Progressive CMOS
• Max. Resolution - 1920x1080 (2MP)
• Lens Type - Fixed-focal
• Focal Length - f = 3.6 mm
• Aperture - F2.0
• Iris type - Fixed-iris
• Field of View - 81° (Horizontal), 44° (Vertical), 95° (Diagonal)
• Shutter Time - 1/5 sec. to 1/32,000 sec.
• WDR Technology - WDR Pro
• Day/Night - Yes
• Removable IR-cut filter - Yes
• IR Illuminators - Built-in IR Illuminators up to 30 meters with Smart IR, IR LED*2
• Minimum Illumination - 0.065 lux @ F2.0 (Color), <0.005 lux @ F2.0 (B/W), 0 Lux with IR illumination on
• Tilt Range - 90°
• Rotation Range - 180°
• Pan/Tilt/Zoom Functionalities - ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• On-board Storage - Slot type: MicroSD/SDHC/SDXC card slot Seamless Recording

Video

• Compression - H.265, H.264, MJPEG
• Maximum Frame Rate - 30 fps @ @ 1920x1080
• Maximum Streams - 3 simultaneous streams
• S/N Ratio - 68 dB
• Dynamic Range - 120 dB
• Video Streaming - Adjustable resolution, quality and bitrate, Smart Stream III
• Image Settings - Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, HLC, defog, 3DNR, video rotation

Network

• Users - Live viewing for up to 10 clients
• Protocols - 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
• Interface - 10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
• ONVIF - Supported, specification available at www.onvif.org

Intelligent Video

• Video Motion Detection - Five-window video motion detectinon
• VADP Package - Trend Micro IoT Security, Stratocast

Alarm and Event

• Alarm Triggers - Motion detection, periodical trigger, system boot, recording notification, camera tampering detection, manual trigger, SD card life expectancy, cybersecurity events (brute force attack event, cyberattack event, quarantine event)
• Alarm Events - Event notification via email, HTTP, FTP, NAS server, SD card File upload via email, HTTP, FTP, NAS server, SD card

General

• Connectors - RJ-45 cable connector for Network 10/100 Mbps PoE connection*1
• LED Indicator - System power and status indicator
• Power Input - IEEE 802.3af PoE Class 2
• Power Consumption - Max. 6.49 W (IR on), Max. 3.6 W (IR off)
• Dimensions - Ø 91.1 x 176.8 mm
• Weight - 530 g
• Casing - IP66, IK10(Housing)
• Safety Certifications - CE, FCC Class B, UL, LVD, VCCI, C-Tick
• Operating Temperature - Starting Temperature: -10°C ~ 60°C (14°F ~ 140°F), Working Temperature: -30°C ~ 60°C (-22°F ~ 140°F)
• Humidity - 90%
• Warranty - 24 months

System Requirements

• Operating System - Microsoft Windows 8/7, Mac 10.12 (Chrome only)
• Web Browser - Chrome 58.0 or above Internet Explorer 10/11
• Other Players - VLC: 1.1.11 or above QuickTime: 7 or above

Included Accessories

• Others - Quick installation guide, alignment sticker, screw pack, cable gland

IB9360-H Specifications PDF
