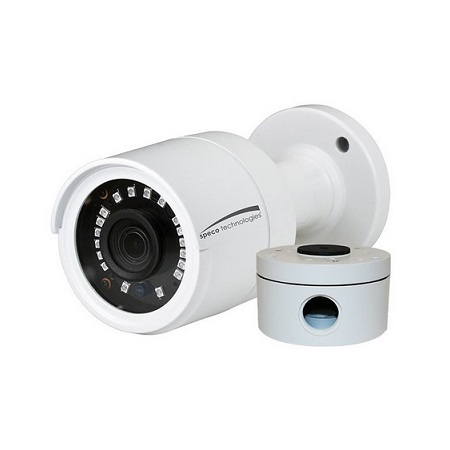

O2VLB7 Speco Technologies 2.8mm 30FPS @ 1920 x 1080 Outdoor IR Day/Night WDR Bullet IP Security Camera 12VDC/PoE

Specifications

Camera Specifications

• Image Sensor - Progressive scan 1/2.7" CMOS, 2MP
• Maximum Resolution - 1920 x 1080
• Minimum Illumination - F1.2, Color: 0.05 lux; BW: 0 lux
• Field of View (H) - 103°
• IR LEDs - 18
• IR Range - 98' (depending on scene reflection)
• White Balance - Auto, Manual
• Compensation - DWDR
• Day/Night - IR Cut filter
• DNR - 3D

Video Specifications

• Main Resolution - 1080P(1920x1080), 960P(1280x960), 720P(1280x720) @ 30fps
• Compression - H.265, H.264
• Bitrate Control - VBR, CBR
• Multiple Streaming - 2 streams

Network Specifications

• Protocols - TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,PPPoE, SMTP,NTP,UPnP,SNMP,HTTPS,FTP
• Security - User ID & Password protection, IP address filtering
• User Access - 10 users max.

Client Specifications

• Web Browser Support - Windows (Internet Explorer 8 and up)
• PC Application - SecureGuard VMS
• Mobile - SecureGuard Client (iPhone and Android) Speco Gray (iPhone and Android)

External Terminal Specifications

• Ethernet - 10/100 Mbps
• Power - DC jack

System Specifications

• PoE - Standard (IEEE 802.3af)
• Analytics - Motion detection
• Alarm Triggers - Analytics
• Alarm Events - Email, alarm, FTP
• Image Settings - Privacy mask

Operating & Unit Specifications

• Power - PoE, 12VDC (power supply not included)
• Power Consumption - 7W max.
• Operating Temperature - -40°F - 131°F
• Operating Humidity - 10% - 90% RH
• Unit Dimensions - 2.48" (Diam.) x 4.5" (length.)
• Unit Weight - 8.0 oz.
• Certifications - FCC, RoHS
• Included in Package - Unit, CD (manual, software), mounting screws
• Country of Origin - China
