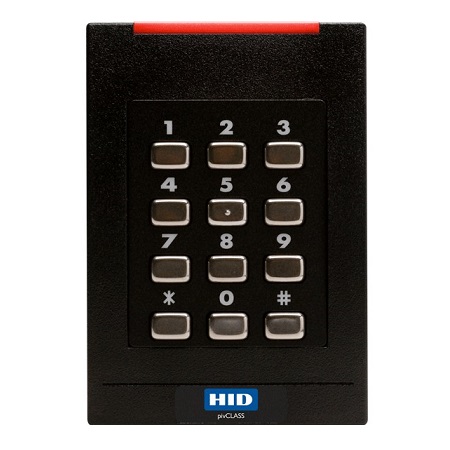

HID-PIVRPK40-001 Kantech Wall Switch with Keypad pivCLASS Reader

HID Global's pivCLASS RK40 wall switch with keypad contactless reader is suitable for use in security areas meeting the FIPS-201 criteria for "Controlled" access and is intended to support the use of a personal identification number (PIN) entered via a keypad and sent directly to a panel or door controller.

Specifications

Typical Maximum Read Range

• Up to 2" for ISO14443 A cards

Dimensions

• 3.3" x 4.8" x 1.1" (8.5 x 12.2 x 2.8 cm)

Legacy cards supported

• Proximity : HID Prox, AWID and EM4102

13.56 MHz contactless smart cards supported

• PKI-based FIPS 201 credentials including PIV, PIV-I, CIV, CAC, TWIC and FRAC
• iCLASS SE, iCLASS SR, standard iCLASS, SE for MIFARE Classic, SE for MIFARE DESFire EV1

Supported outputs in Wiegand mode

• 40 bits
• 64 bits
• 75 bit GSA
• 128 bit UUIDs
• 200 bits full FASCN

Protocol

• Wiegand mode – Wiegand
• PAM mode – HID Global pivCLASS protocol or CoreStreet Reader Protocol

Warranty

• Lifetime

HID-PIVRPK40-001 Specifications PDF

HID-PIVRPK40-001 Manual
