BR700G APC 6 Output Desktop/Tower UPS Battery Backup 120VAC 700VA

SKU: BR700G
Brand: APC
  • LCD (Liquid Crystal Display) gives the status of over 20 different utility and battery backup conditions
  • Automatic Voltage Regulation (AVR) instantly corrects voltage fluctuations so you can work indefinitely through brownouts and over voltages

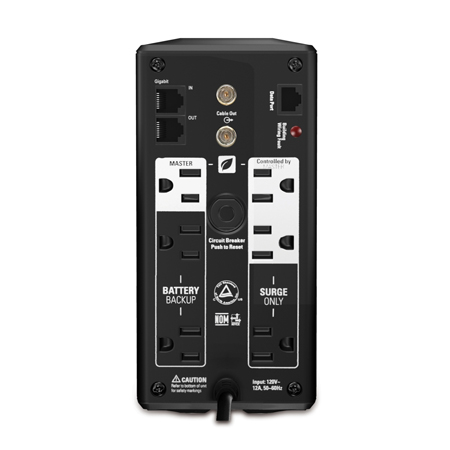

  • 3 Battery Backup & Surge Protected Outlets keep a CPU, monitor and other critical devices running when the power goes out or fluctuates outside safe levels
  • 3 Surge Only Outlets protect printers, faxes or other equipment without reducing battery capacity (Includes two power-saving "Controlled" outlets)
  • Data Line Surge Protection guards against surges and spikes traveling over Ethernet or coax cable lines
  • PowerChute Software lets you use your computer to access additional power protection and management features: Preserves your work, shuts down system during outages, Restarts your system, minimizing work disruptions, Enables customization of your Back-UPS settings, Monitors and displays power and battery status
  • Push Button Circuit Breaker enables quick recovery from overloads
  • Automatic Diagnostic Testing ensures your unit is ready when you need it
More details...
MPN: BR700G
MSRP Price: $149.99
Web Price: $139.99
Add to List

Already a DWG Dealer? - Sign In to view pricing.



Product Details

Specifications


Output

  • Max Configurable Power (Watts) - 420Watts / 700VA
  • Output Frequency (sync to mains) - 50/60Hz +/- 3 Hz
  • Topology - Line Interactive
  • Waveform type - Stepped approximation to a sinewave
  • Transfer Time - 8ms typical : 12ms maximum

Input

  • Input frequency - 50/60 Hz +/- 3 Hz (auto sensing)
  • Input voltage range for main operations - 88 - 143V

Batteries & Runtime

  • Included Battery Modules - 1
  • Typical recharge time - 12hour(s)
  • Replacement Battery - RBC17
  • Expected Battery Life (years) - 3 - 5
  • RBC Quantity - 1
  • Battery Volt-Amp-Hour Capacity - 86
  • Runtime - View Runtime Graph, View Runtime Chart
  • Efficiency - View Efficiency Graph

Communications & Management

  • Interface Port(s) - USB

Surge Protection and Filtering

  • Surge energy rating - 354 Joules
  • Data Line Protection Network line - 10/100/1000 Base-T Ethernet (RJ-45 connector), Coaxial cable for CATV/SATV/modem/Audio-Video (coax connector)
  • Filtering - Full time multi-pole noise filtering :5% of IEEE surge let-through : zero clamping response time: instantaneous

Physical

  • Maximum Height - 7.48inches (190MM, 19.0CM)
  • Maximum Width - 3.58inches (91MM, 9.1CM)
  • Maximum Depth - 12.2inches (310MM, 31.0CM)
  • Net Weight - 15.73lbs. (7.15KG)
  • Color - Black

Environmental

  • Operating Temperature - 32 - 104 °F (0 - 40 °C)
  • Operating Relative Humidity - 0 - 95 %
  • Operating Elevation - 0-10000ft (0-3000meters)
  • Storage Temperature - -15 - 45 °C
  • Storage Relative Humidity - 0 - 95 %
  • Storage Elevation - 0-50000ft (0-15000meters)
  • Audible noise at 1 meter from surface of unit - 45.0dBA
  • Online thermal dissipation - 48.5BTU/hr

Conformance

  • Approvals - ENERGY STAR V2.0 (USA), FCC Part 15 Class B, NOM, TUV, UL 1778
  • Equipment protection policy - Lifetime : $150000
  • Standard warranty - 3 years repair or replace

BR700G Specification PDF
