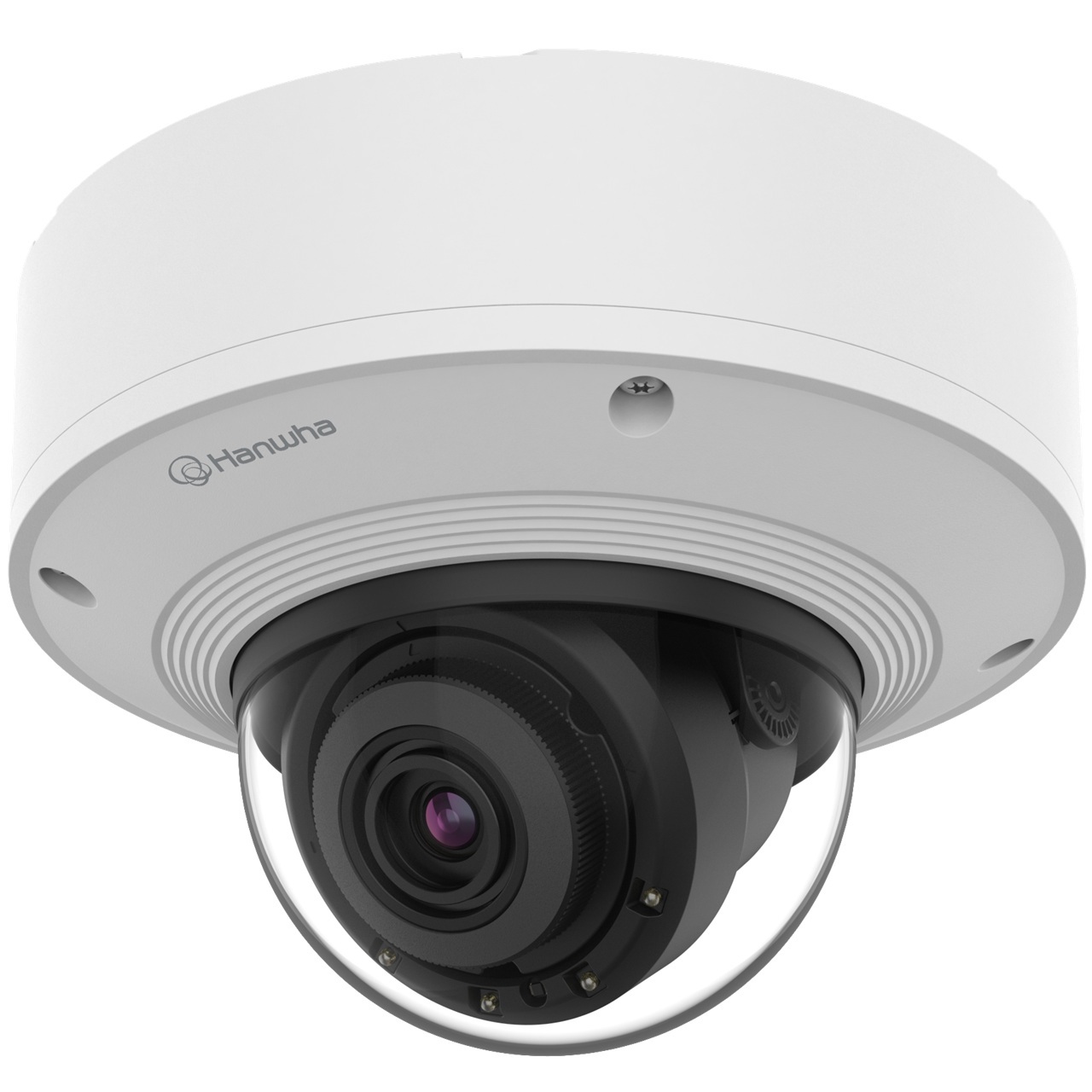

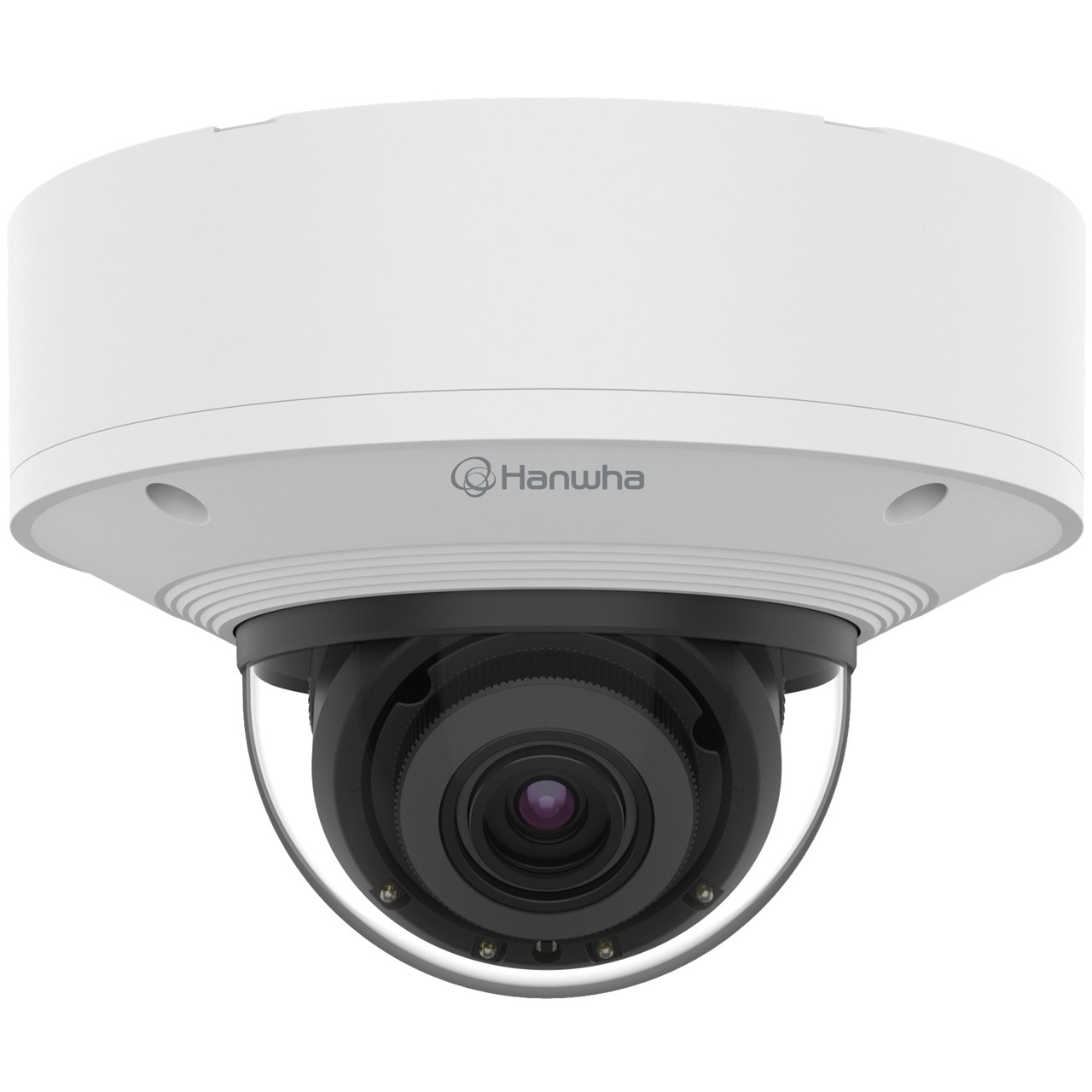

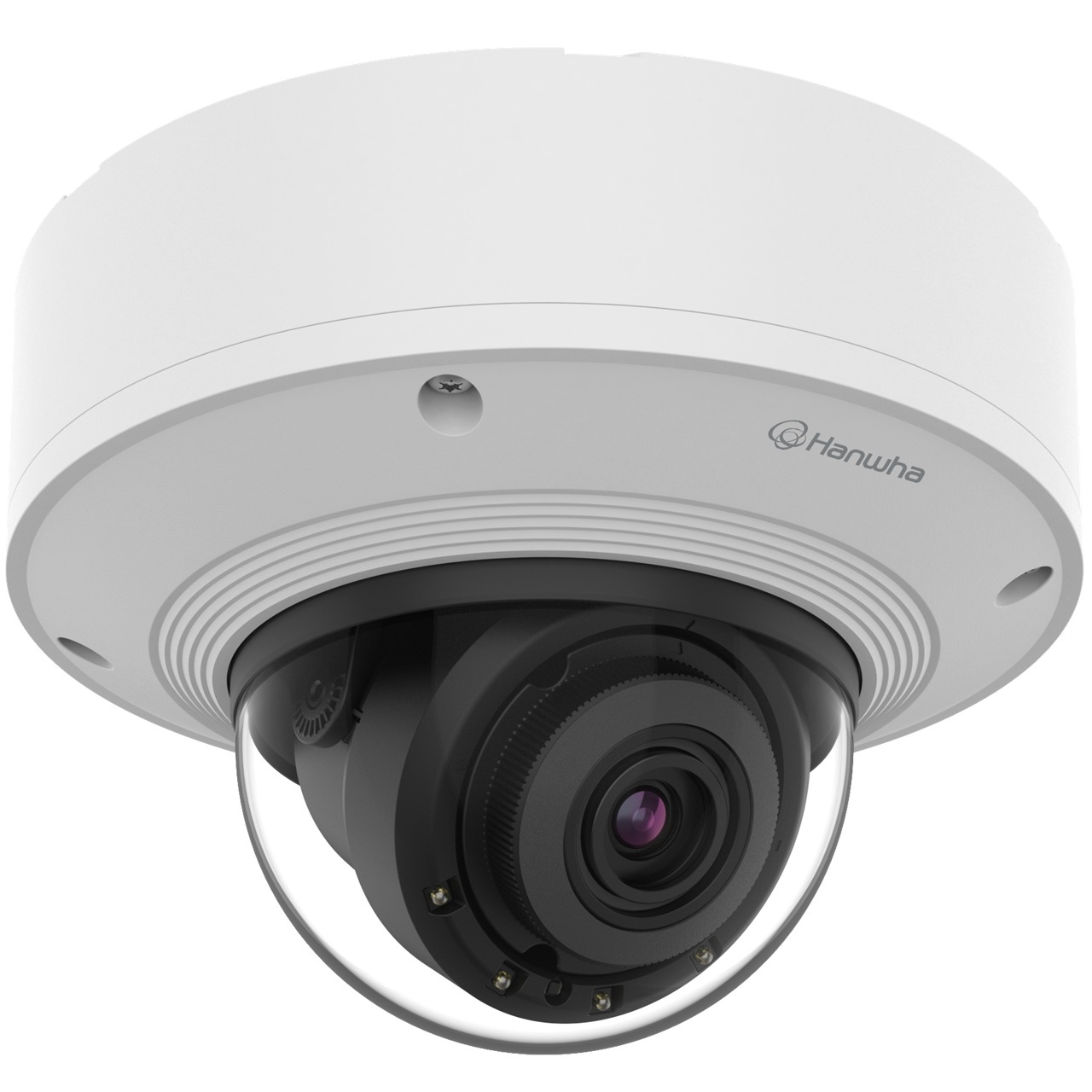

XNV-8081R Hanwha Vision X Series 3.9-9.4mm Motorized 30FPS @ 5MP Outdoor IR Day/Night WDR Dome IP Security Camera 12VDC/24VAC/POE

Specifications

Video

• Imaging Device - 1/1.8" 6MP CMOS
• Effective Pixels - 2616(H)x1976(V)
• Min. Illumination - Color: 0.07Lux(F1.3, 1/30sec) BW: 0Lux(IR LED)
• Video Out - CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation

Lens

• Focal Length (Zoom Ratio) - 3.9~9.4mm(2.4x) motorized varifocal
• Max. Aperture Ratio - F1.3
• Angular Field of View - H: 92.1Ëš(Wide)~38.7Ëš(Tele), V: 67.2Ëš(Wide)~29.0Ëš(Tele), D: 119.9Ëš(Wide)~48.6Ëš(Tele)
• Min. Object Distance - 0.5m(1.64ft)
• Focus Control - Simple focus
• Lens Type - DC auto iris, P-iris

Pan / Tilt / Rotate

• Pan / Tilt / Rotate - 0Ëš~360Ëš / -45Ëš~85Ëš / 0Ëš~355Ëš

Operational

• IR Viewable Length - 50m(164.04ft)
• Camera Title - Displayed up to 85 characters
• Day & Night - Auto(ICR)
• Backlight Compensation - BLC, HCL, WDR, SSDR
• Wide Dynamic Range - (120dB)
• Digital Noise Reduction - SSNRâ…¤
• Digital Image Stabilization - Support(built-in gyro sensor)
• Defog - Support
• Motion Detection - 8ea, 8 Point Polygonal zones
• Privacy Masking - 32ea, polygonal zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic
• Gain Control - Low / Middle / High
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• LDC - Support
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker (2~1/12,000sec)
• Video Rotation - Flip, Mirror, Hallway view(90°/270°)
• Analytics - Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, Shock detection
• Business Intelligence - People counting, Queue management, Heatmap
• Alarm I/O - Input 1ea / Output 1ea
• Alarm Triggers - Analytics, Network disconnect, Alarm input,
• Alarm Events - File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover Audio playback
• Audio In - Selectable(mic in/line in), Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
• Audio Out - Line out, Max.output level: 1Vrms

Network

• Ethernet - RJ-45(10/100BASE-T)
• Video Compression - H.265/H.264: Main/Baseline/High, MJPEG
• Resolution - 2560x1920, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
• Max. Framerate - H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
• Smart Codec - Manual(5ea area), WiseStreamâ…¡
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
• Audio Compression - G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
• Security - HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP)
• Application Programming Interface - ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
• Web Viewer - Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explore11,~MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
• Memory - 1024MB RAM, 256MB Flash

Environmental

• Operating Temperature / Humidity - -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH * Start up should be done at above -35°C
• Storage Temperature / Humidity - -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
• Certification - IP66/IP67/IP6K9K, IK10+, NEMA4X

Electrical

• Input Voltage - PoE(IEEE802.3af, Class3), 24VAC(Optional), 12VDC
• Power Consumption - PoE: Max 12.95W, typical 10.90W 12VDC: Max 11.7W, typical 8.90W 24VAC: Max 14.9W, typical 11.30W

Mechanical

• Color / Material - White / Aluminum
• RAL Code - RAL9003
• Product Dimensions / Weight - Ø180x125mm(7.09x4.92"), 1.75kg(3.86 lb)
