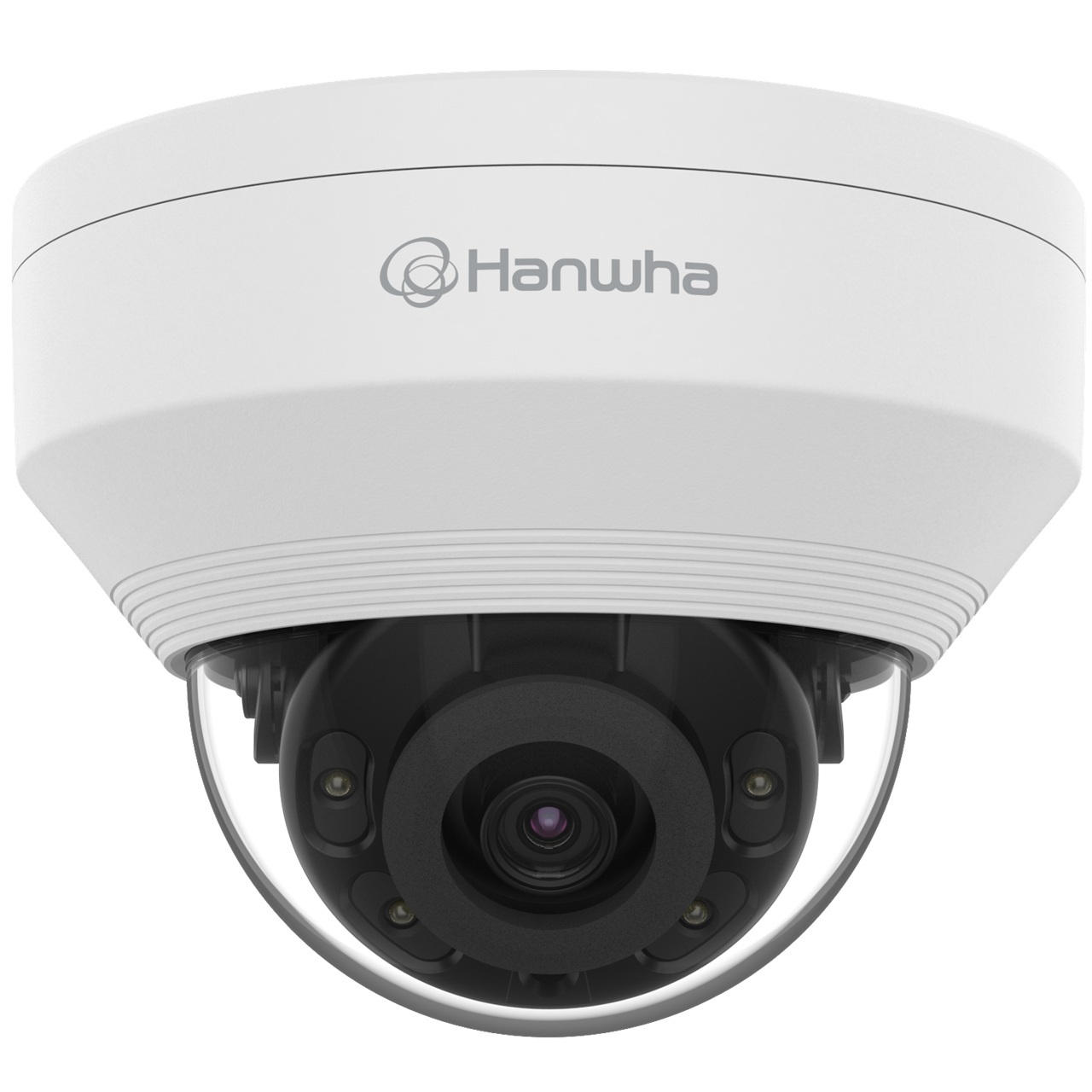

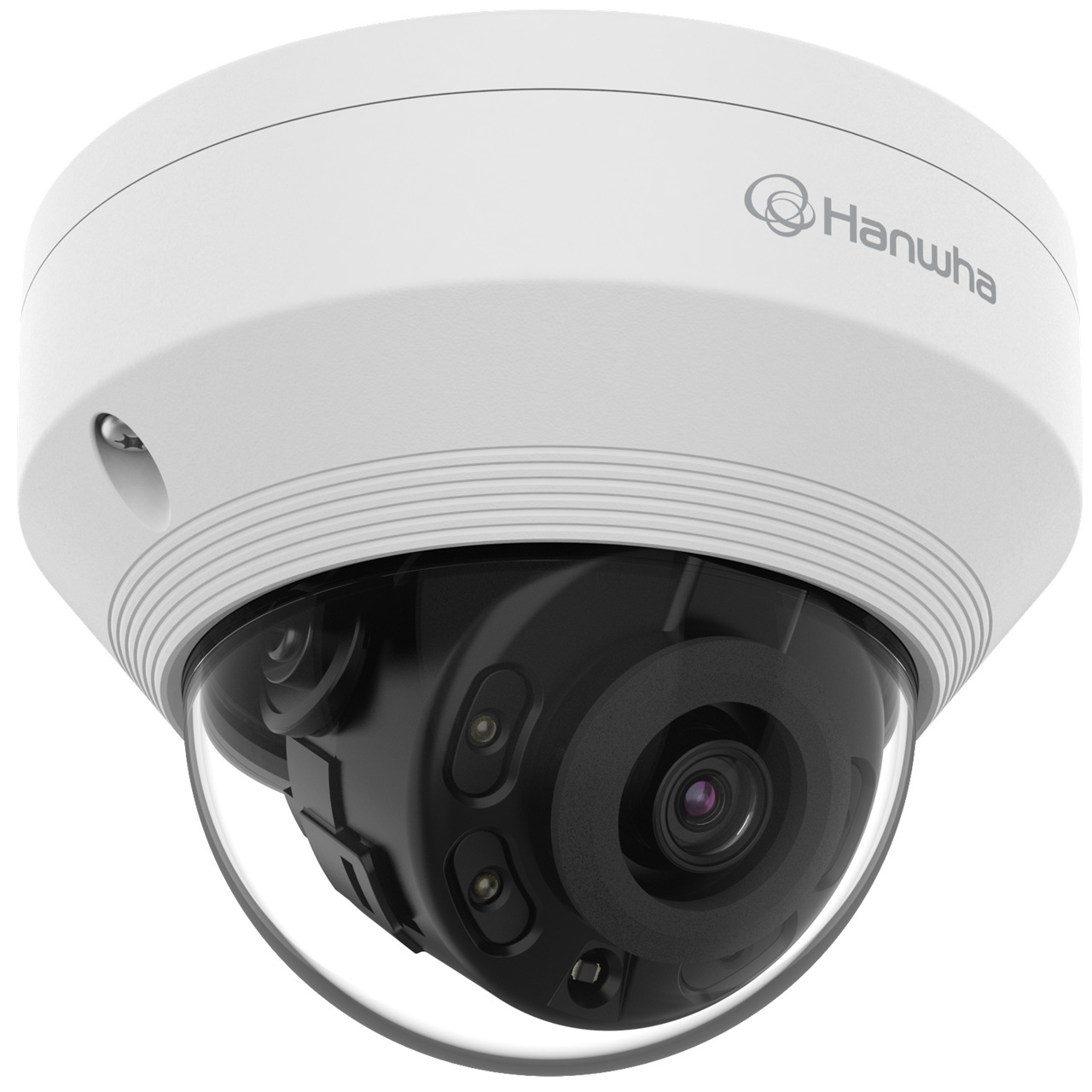

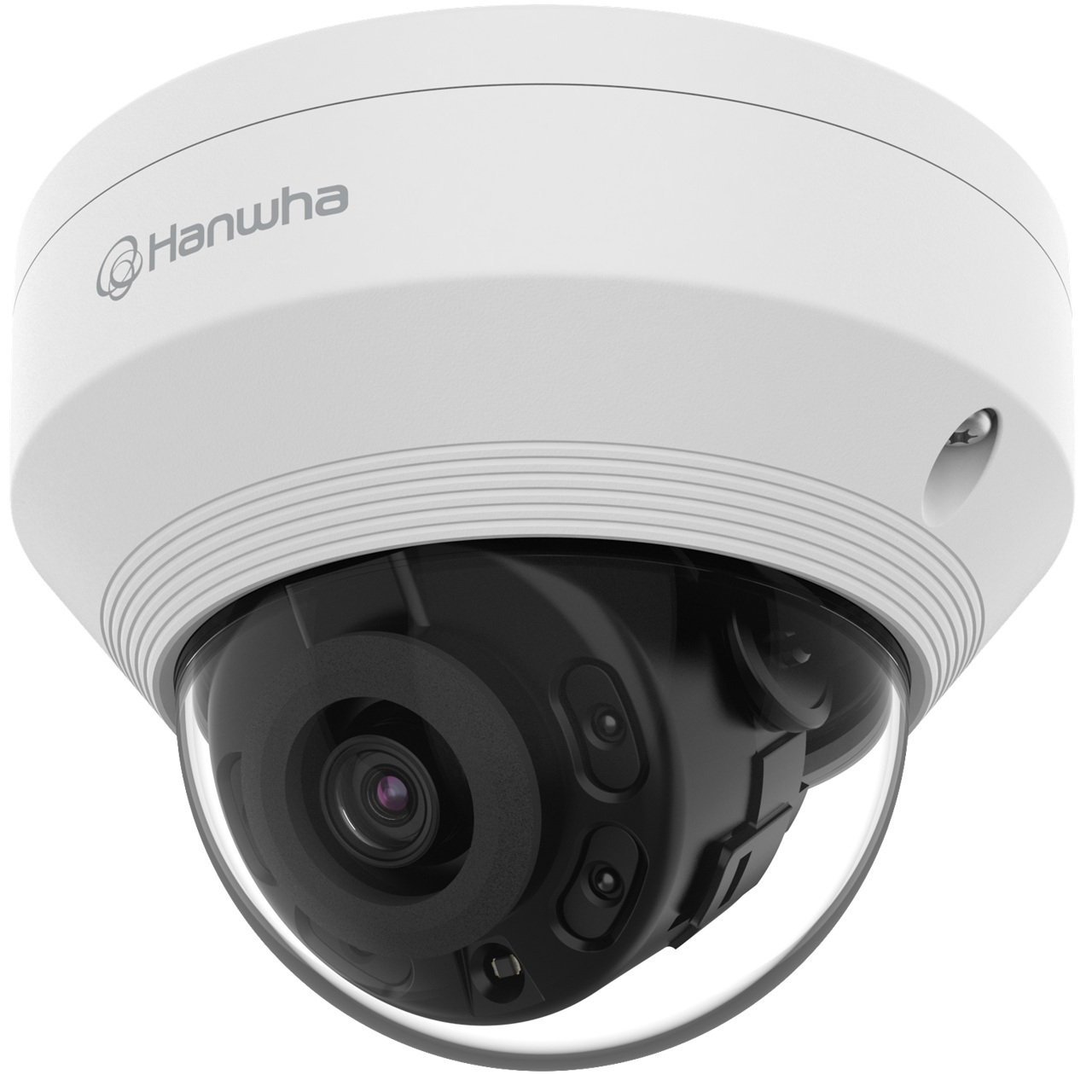

QNV-8010R Hanwha Vision Q Series 2.8mm 30FPS @ 5MP Outdoor IR Day/Night WDR Dome IP Security Camera 12VDC/POE

Specifications

Video

• Imaging Device - 1/2.8" CMOS
• Resolution - 2592x1944, 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600,800x448, 720x576, 720x480,640x480, 640x360, 320x240
• Max. Framerate - H.265/H.264: Max.30fps/25fps(60Hz/50Hz) MJPEG: 15fps(@5MP Max. 2fps)
• Min. Illumination - Color(1/30sec, 30IRE) 0.15, BW(1/30sec, 30IRE) 0.015
• Video Out - CVBS: 1.0 Vp-p / 75Ω composite, for installation

Lens

• Focal Length (mm) - 2.8
• Max Aperture Ratio (F number) Wide - 2.0
• Angular Field of View - H: 105°, V: 77°, D: 136°
• Focus Control - Fixed

Pan/Tilt/Rotate

• Pan/Tilt/Rotate - 0°~350°/0°~64°/0°~355°

Operational

• Camera Title - Displayed up to 85 characters
• Day & Night - Auto(ICR)
• Backlight Compensation - BLC, WDR, SSDR
• Wide Dynamic Range - (120dB)
• Digital Noise Reduction - SSNRV
• Motion Detection - 4ea, 8point polygonal zones
• Privacy Masking - 6a, Rectangular zones
• Gain Control - Low / Middle / High
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• LDC - Support
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker 1/5~1/12,000sec
• Video Rotation - Flip, Mirror, Hallway view(90Ëš/270Ëš)
• Alarm Interface - In/Out Input 1ea, Output 1ea
• Alarm I/O - Input 1ea / Output 1ea
• Alarm Triggers - Analytics, Network disconnect, Alarm input
• Alarm Events When Alarm Trigger Occurred - File upload (image) ; FTP and e-mail, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output Handover: PTZ preset
• Light Type - IR LED
• Light Viewable Length IR - 20m(65.62ft)
• IR Wavelength - 850nm

Analytics

• Analytics Events - Normal Defocus detection, Motion detection, Tampering, Virtual area(Intrusion, Enter/Exit), Virtual line(Crossing, Direction)

Network

• Ethernet - RJ-45(10/100BASE-T)
• Video Compression Format - H.265/H.264: Main/High, MJPEG
• Smart Codec - WiseStreamâ…¡
• Bitrate Control Method - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
• Application Programming Interface - ONVIF Profile S/G/T SUNAPI(HTTP API) Hanwha Vision open platform
• Direct Cloud Connection - Optional (needs gateway)

Security

• OS / Firmware Protect - Encrypted Firmware
• User authentication - Digest Authenticaton, Prevent brute-force attack
• Network authentication - IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
• Secure Communication - HTTPS, WSS(WebSocket Secure), SRTP
• Access Control - IP-based access control
• Data Protect - Encryption Credentials, Encrypt compress for live recording file export
• Audit - Access / System / Event Log management
• Device ID - Device certificate(Hanwha Vision Root CA)
• Secure Storage - SDcard partition encrypt(AES-256)

General

• Edge Storage - Micro SD/SDHC/SDXC Max. 128GB x 1slot
• Memory - 512MB RAM, 256MB Flash

Environmental & Electrical

• Operating Temperature / Humidity/ Others - -30°C~+55°C(-22°F~+131°F)/ 0~90% RH(non-condensing)/ Start up should be done at above -20°C
• Storage Temperature / Humidity - -30°C ~ +60°C(-22°F ~ +140°F) / 0~90% RH(non-condensing)
• Input Voltage - PoE(IEEE802.3af, Class3)
• Power Consumption - PoE: Max 7.50W typical 5.80W

Mechanical

• Color / Material - White / Aluminum
• RAL Code - RAL9003
• Product Dimensions - ø120.3x91.7mm(ø4.74x3.61")
• Weight - 510g(1.12Ib)

Certifications & Standards

• Environment - IEC 60529 IP66, IEC 62262 IK10

DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF) - 40.0m(131.20ft)
• Observe (63PPM/ 19PPF) - 16.0m(52.48ft)
• Recognize (125PPM/ 38PPF) - 8.0m(26.24ft)
• Identify (250PPM/ 76PPF) - 4.0m(13.12ft)
