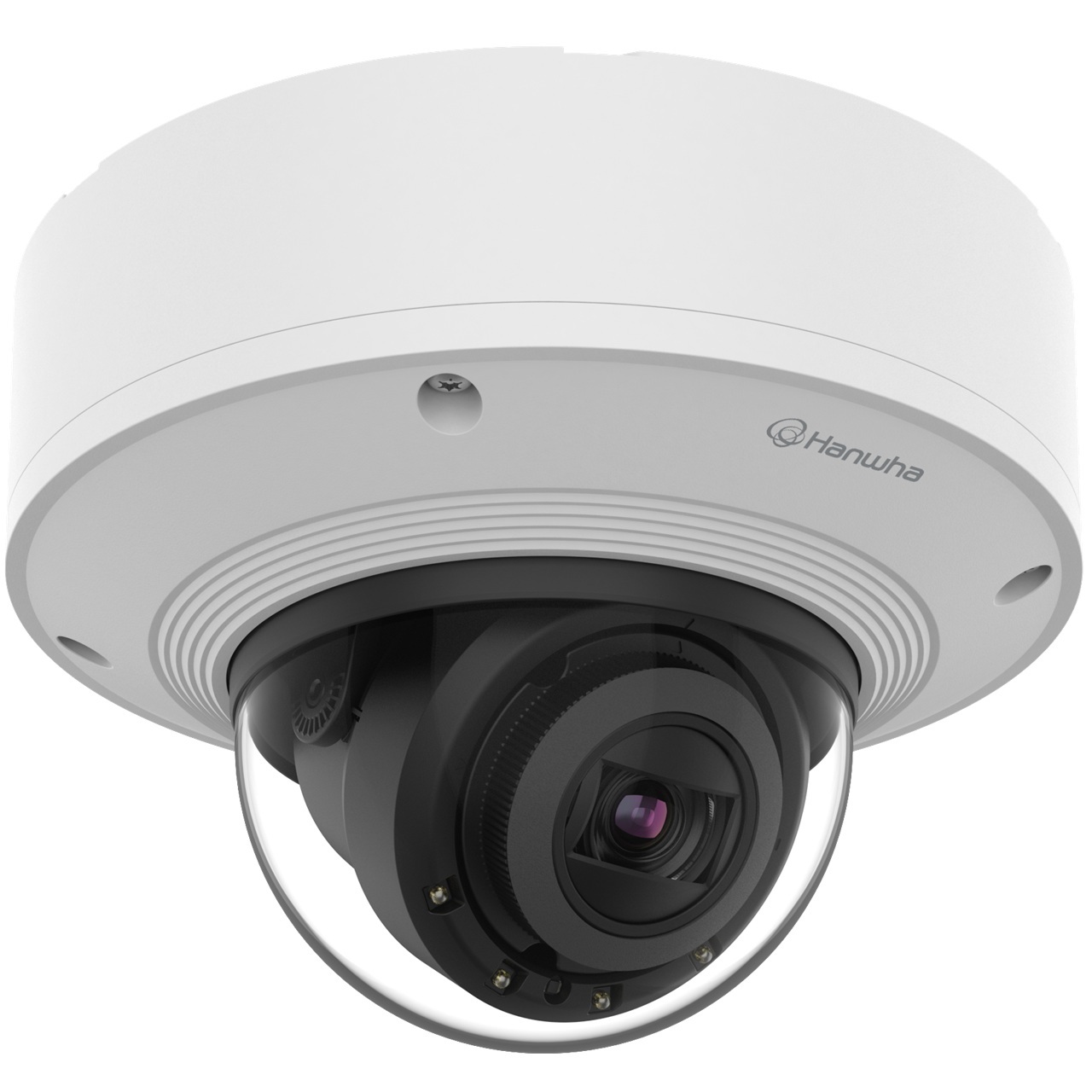

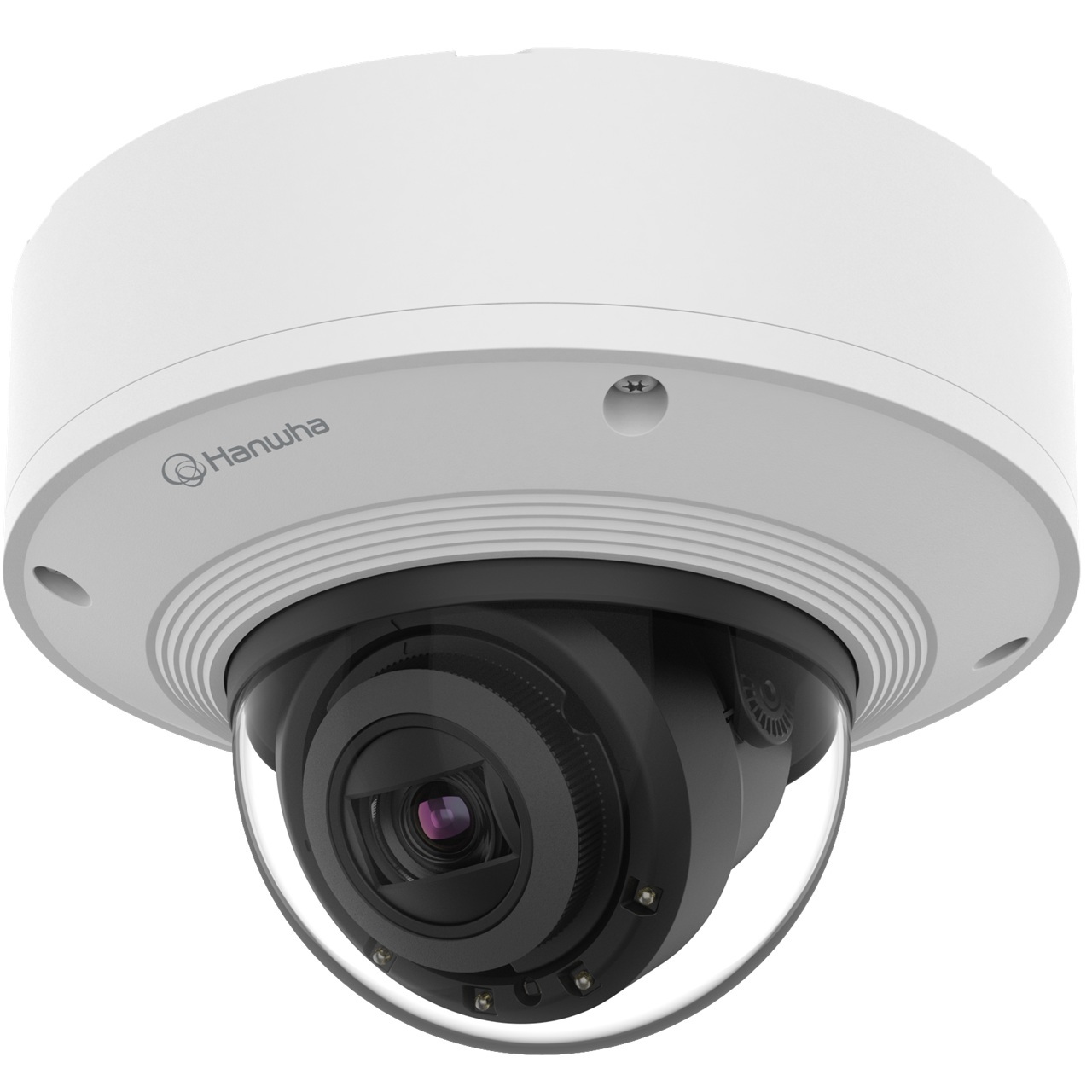

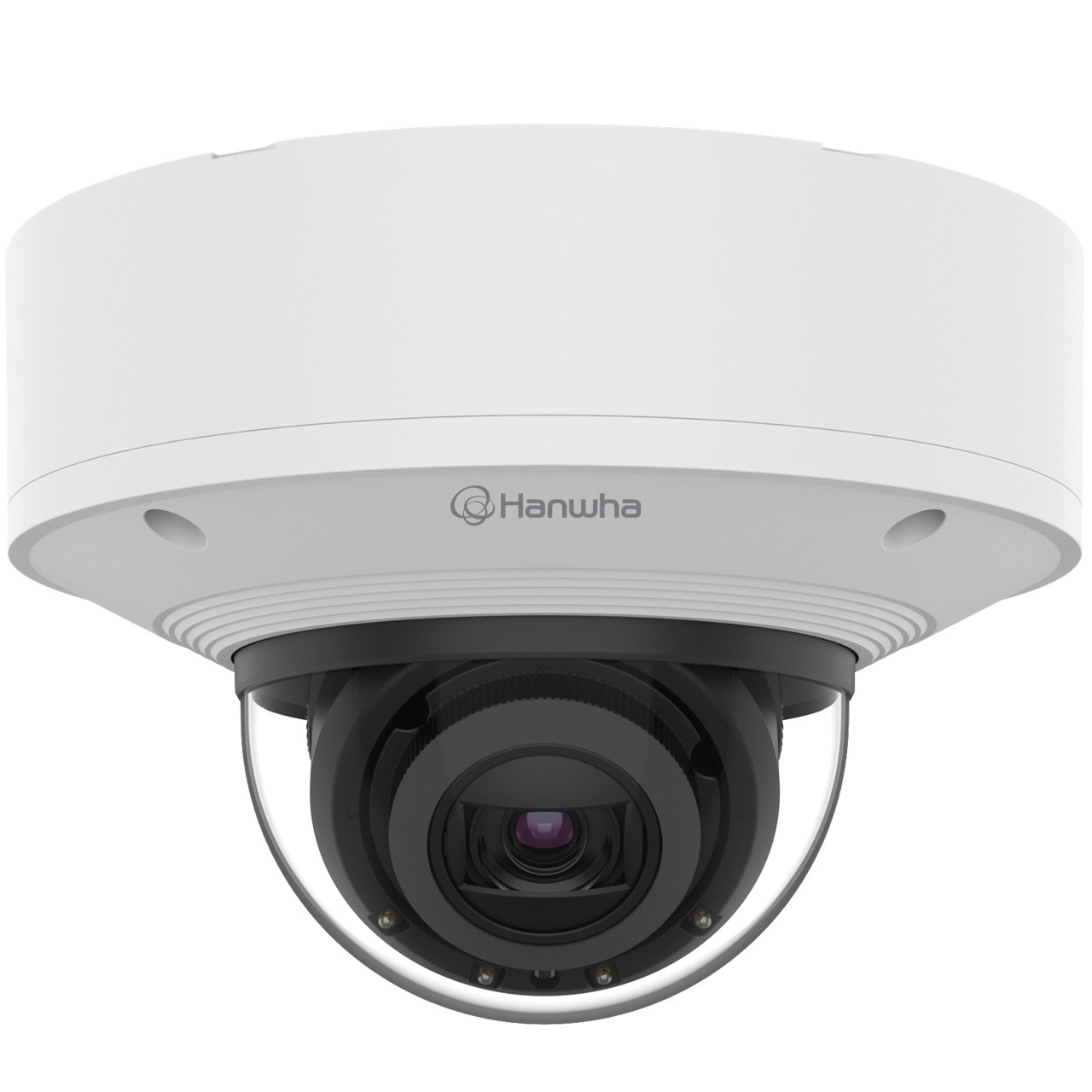

XNV-6081R Hanwha Vision X Series 2.8-12mm Motorized 60FPS @ 2MP Outdoor IR Day/Night WDR Dome IP Security Camera 12VDC/24VAC/PoE

Specifications

Video

• Imaging Device - 1/2.8" 2MP CMOS
• Resolution - 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
• Max. Framerate - H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps
• Min. Illumination - Color: 0.015Color(1/30sec, 30IRE) BW: BW(1/30sec, 30IRE) 0.0015
• Video Out - CVBS: 1.0 Vp-p / 75Ω composite for installation USB: Micro USB Type B

Lens

• Focal Length (Zoom Ratio) - 2.8~12mm(4.3x) motorized varifocal
• Max. Aperture Ratio - F1.4(Wide)~F3.6(Tele)
• Angular Field of View - H: 119.5°(Wide)~27.9°(Tele) / V: 62.8°(Wide)~15.7°(Tele) / D: 142.1°(Wide)~32.0°(Tele)
• Min. Object Distance - 0.5m(1.64ft)
• Focus Control - Simple focus, manual
• Lens Type - DC auto iris, P iris

Pan / Tilt / Rotate

• Pan / Tilt / Rotate Range - 0Ëš~360Ëš / -45Ëš~85Ëš / 0Ëš~355Ëš

Operational

• Camera Title - Displayed up to 85 characters
• Day & Night - Auto(ICR)
• Backlight Compensation - BLC, HCL, WDR, SSDR
• Wide Dynamic Range - (150dB)
• Digital Noise Reduction - SSNRâ…¤
• Digital Image Stabilization - Support(built-in gyro sensor)
• Defog - Support
• Motion Detection - 8ea, 8 Point Polygonal zones
• Privacy Masking - 32ea, Polygonal zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic
• Gain Control - Low, Middle, High
• White Balance - ATW, AWC /Manual /Indoor /Outdoor
• LDC - Support
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker (2~1/12,000sec)
• Video Rotation - Flip, Mirror, Hallway view(90Ëš/270Ëš)
• Alarm I/O - Input 1ea / Output 1ea
• Alarm Triggers - Analytics, Network disconnect, Alarm input
• Alarm Events - File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover PTZ preset,send message by HTTP/HTTPS/TCP Audio playback
• Audio In - Selectable(mic in/line in)
• Audio Out - Line out
• Light Type - IR LED
• IR Viewable Length - 50m(164.04ft)
• IR Wavelength - 850nm

Analytics

• Analytics Events - Defocus detection, Motion detection, Tampering, Fog detection, Face detection, Audio detection, Sound classification, Shock detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction) Digital auto tracking
• Business Intelligence - Normal People counting, Queue management, Heatmap

Network

• Ethernet - RJ-45(10/100BASE-T)
• Video Compression - H.265/H.264: Main/Baseline/High, MJPEG
• Audio Compression - G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
• Smart Codec - Manual, WiseStreamâ…¡
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast), PIM-SM,
• Application Programming Interface - ONVIF Profile S/G/T SUNAPI(HTTP API) Hanwha Vision open platform
• Direct Cloud Connection - Optional (needs gateway)

Security

• OS / Firmware Protect - Encrypted Firmware, Secure boot, Signed Firmware
• User authentication - Digest Authenticaton,
• Network authentication - IEEE 802.1X(EAP-TLS, EAP-LEAP, )
• Secure Communication - HTTPS, WSS(WebSocket Secure), SRTP
• Access Control - IP-based access control
• Data Protect - Encryption Credentials, Encrypt compress for live recording file export
• Audit - Access / System / Event Log management
• Device ID - Device certificate(Hanwha Vision Root CA)
• Secure Storage - SDcard partition encrypt (AES-256)

General

• Edge Storage - Micro SD/SDHC/SDXC 2slot 512GB(Total 1TB)
• Memory - 1GB RAM, 256MB Flash

Environmental & Electrical

• Operating Temperature / Humidity - -50°C ~ +60°C (-58°F ~ +140°F) / 0~90% RH(non-condensing) * Start up should be done at above -35°C
• Storage Temperature / Humidity - -50°C ~ +60°C (-58°F ~ +140°F) / 0~90% RH(non-condensing)
• Input Voltage - PoE+(IEEE802.3at, Class3) 24VAC, 12VDC
• Power Consumption - PoE Max 12.95W, typical 10.30W, 12VDC Max 10.8W, typical 8.40W, 24VAC Max 13.3W, typical 10.40W

Mechanical

• Color / Material - White / Aluminum
• RAL Code - RAL9003
• Product Dimensions / Weight - Ø180x125mm(7.09x4.92"), 1.750g(3.86 lb)

Certifications & Standards

• Environment - IEC 60529 IP66, IEC 60529 IP67, ISO 20653 IP6K9K, IEC 62262 IK10+, NEMA 250 type 4X
