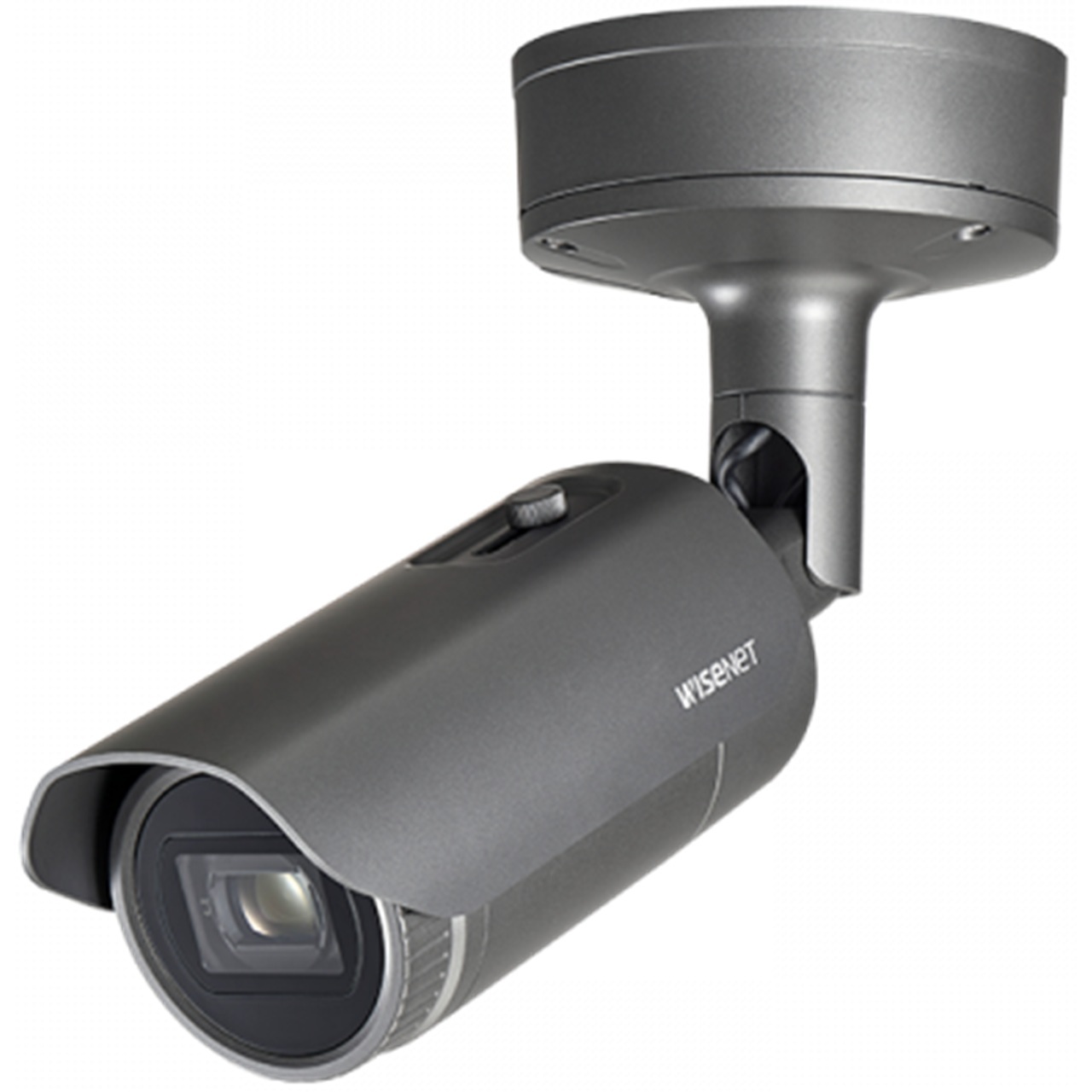

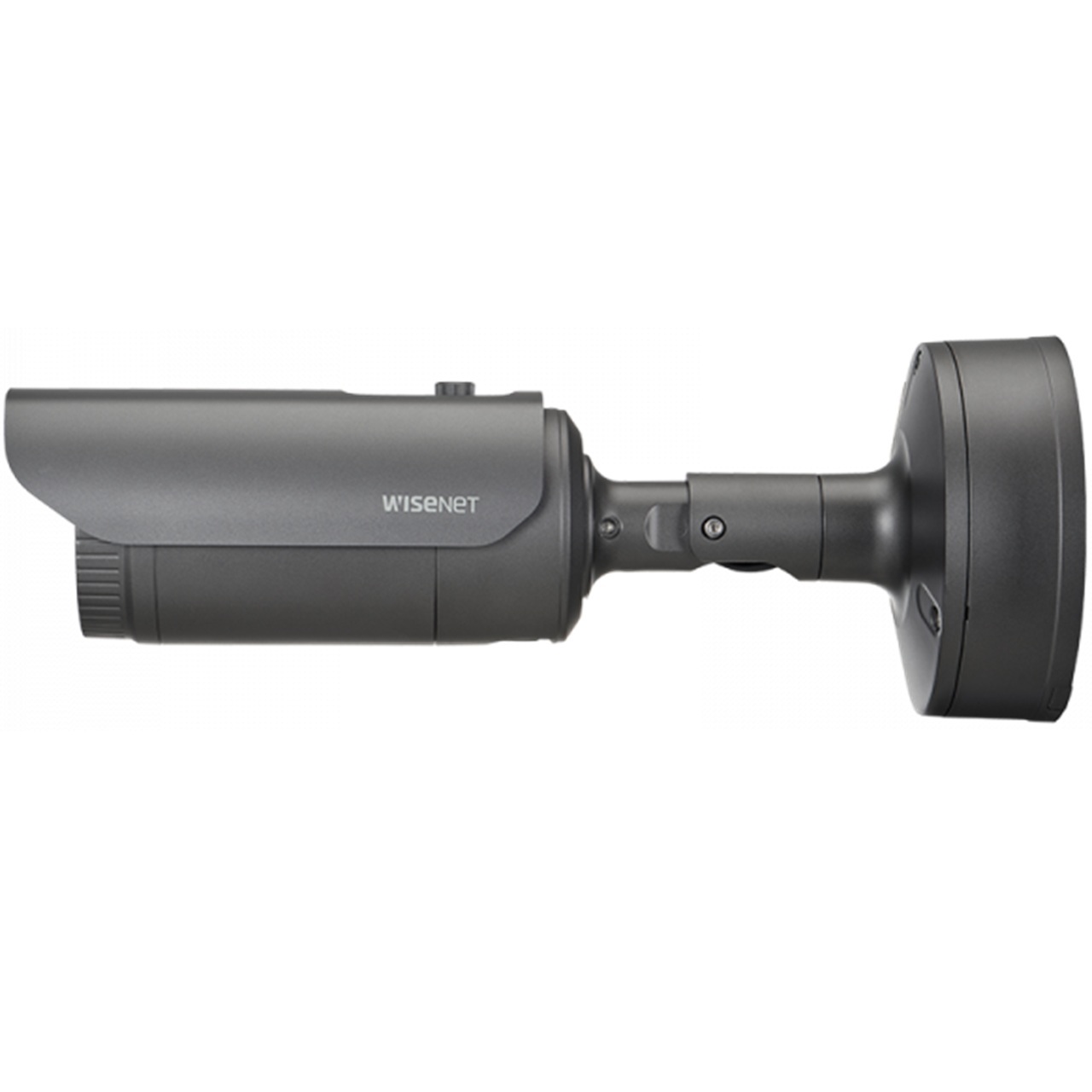

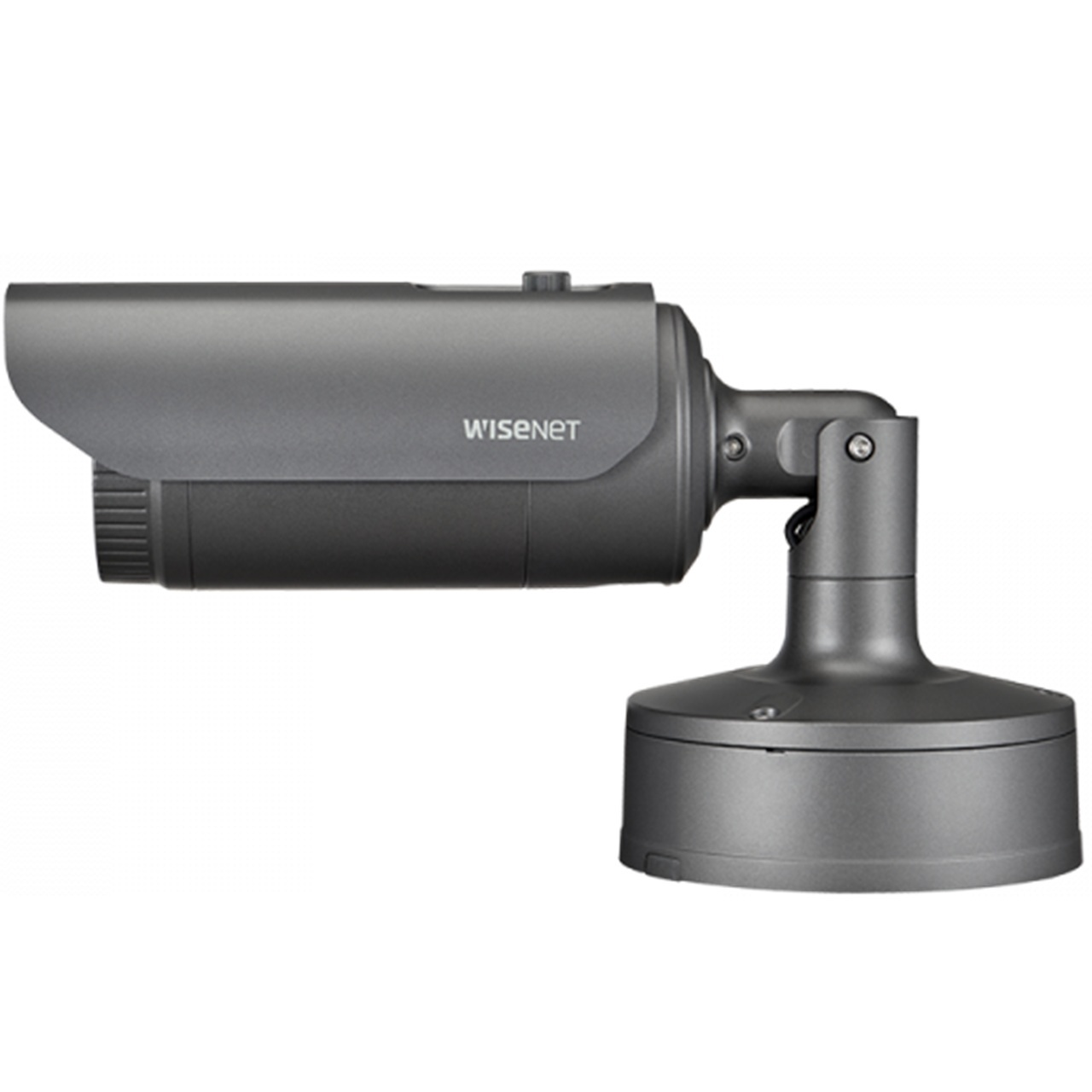

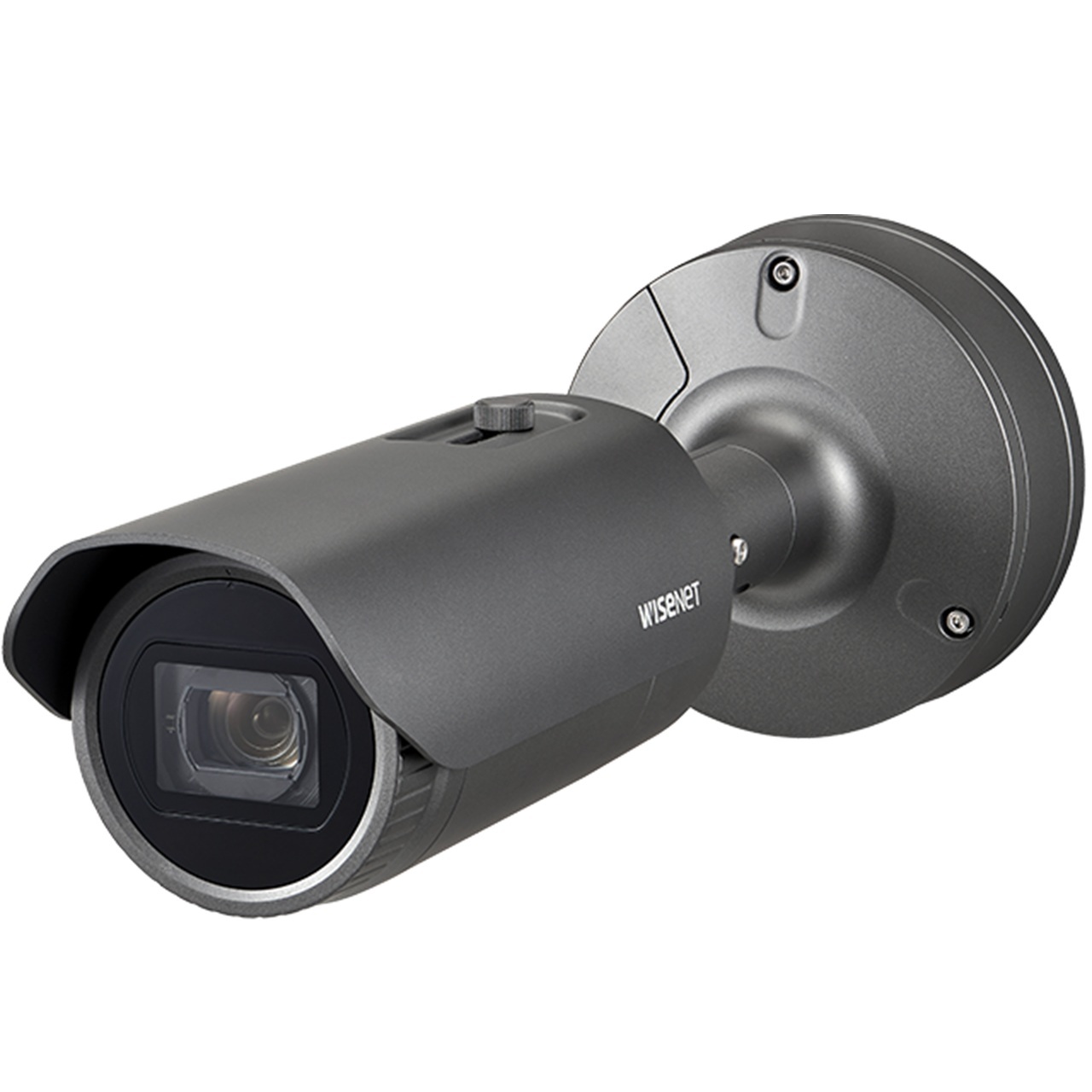

XNO-6120R/LPR Hanwha Vision X Series 5.2-62.4mm 12x Optical Zoom 60FPS @ 2MP Outdoor IR Day/Night WDR LPR IP Security Camera 12VDC/24VAC/PoE

Specifications

Video

• Imaging Device - 1/2.8" 2MP CMOS
• Total Pixels - 1,945(H) x 1,109(V) 2.16MP
• Effective Pixels - 1,945(H) x 1,097(V) 2.13MP
• Scanning System - Progressive
• Min. Illumination - Color : 0.03Lux (F1.6), B/W : 0Lux (IR LED on)
• S / N Ratio - 50dB
• Video Out - CVBS : 1.0 Vp-p / 75Ω Composite, 720 x 480 for Installation USB : Micro USB Type B, 1280 x 720, for Installation

Lens

• Focal Length (Zoom Ratio) - 5.2~62.4mm(Optical 12X)
• Max. Aperture Ratio - F1.6(Wide) - F3.0(Tele)
• Angular Field of View - H : 54.58°(Wide) ~ 5.30°(Tele) / V : 32.19°(Wide) ~ 3.00°(Tele) / D : 61.40°(Wide) ~ 6.06°(Tele)
• Min. Object Distance - 1.5m (4.92ft)
• Focus Control - Auto / Manual /Oneshot AF
• Lens/Mount Type - DC auto iris/ Board-in Type

Operational

• IR Viewable Length - 70m (229.66ft), maximum plate distance for IR 65ft
• Camera Title - Off / On (Displayed up to 85 Characters) - English / Numeric / International / Special Characters - Common : Multi-line (Max. 5), Color (Gray / Green / Red / Blue /Black / White), Transparency, Auto scale by Resolution
• Day & Night - Auto (ICR) / Color / B/W / External / Schedule
• Backlight Compensation - Off / BLC / HLC / WDR
• Wide Dynamic Range - (150dB)
• Contrast Enhancement - SSDR (Off / On)
• Digital Noise Reduction - SSNRV (2D + 3D Noise filter) (Off / On)
• Motion Detection - Off / On (8ea, 8Point polygonal zones), Handover
• Privacy Masking - Off / On (32ea, Rectanglular zones) - Color : Gray / Green / Red / Blue / Black / White - Mosaic
• Gain Control - off/Low / Middle / High
• White Balance - ATW / AWC / Manual / Indoor / Outdoor (Included Mercury & Sodium)
• Contrast - Level Adjusment
• LDC - Off / On (5 Levels with Min / Max)
• Electronic Shutter Speed - Minimum / Maximum / Anti Flicker (2 ~ 1/12,000sec)
• Digital Zoom - 24x
• Preset - 300ea
• Flip / Mirror - Off / On, Hallway : 90° /270°
• Alarm I/O - Input 1ea / Output 1ea
• Alarm Triggers - Alarm Input, Motion detection, Video & Audio Analytics, Network disconnect
• Alarm Events - File Upload Via FTP, E-mail, Notification via e-mail, Local Storage (SD / SDHC / SDXC) or NAS recording at event triggers, External output, Preset
• Pixel Counter - Support

Network

• Ethernet - RJ-45(10/100BASE-T)
• Video Compression Format - H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG
• Max. Framerate - H.265 / H.264 : 60fps at all resolutions, MJPEG : 30fps
• WiseStreamII - Support
• Video Quality Adjustment - H.265 / H.264 : MJPEG : Target bitrate level control
• Bitrate Control - H.265 / H.264 : CBR or VBR, MJPEG : VBR
• Streaming Capability - Multiple streaming (Up to 10 Profiles)
• Audio In - Selectable (Mic in / Line in), Supply Voltage : 2.5V DC (4mA), Input Impedance : Approx. 2K Ohm
• Audio Out - Line Out (3.5mm Mono Jack), Max Output Level : 1 Vrms
• Audio Compression Format - G.711 u-law/G.726 Selectable, G.726 (ADPCM) 8KHz, G.711 8KHz G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps, AAC-LC : 48Kbps at 16KHz
• Audio Communication - Bi-directional (2-way)
• IP - IPv4, IPv6
• Protocol - TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, SRTP (TCP, UDP Unicast)
• Security - HTTPS (SSL) Login Authentication, Digest Login Authentication IP address filtering, User access log, 802.1X Authentication (EAP-TLS, EAP-LEAP)
• Streaming Method - Unicast / Multicast
• Maximum User Access - 20 Users at Unicast Mode
• Application Programming Interface - ONVIF Profile S/G, SUNAPI 2.0 (HTTP API), Wisenet Open Platform

Environmental

• Operating Temperature / Humidity - -40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH * Start up should be done at above -35°C (-31°F)
• Storage Temperature / Humidity - -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
• Ingress Protection / Vandal Resistance - IP67, IP66, NEMA4X / IK10

Electrical

• Input Voltage/ Current - 24V AC, 12V DC, PoE (IEEE802.3af Class3)
• Power Consumption - 24V AC : Max 14.5W, 12V DC : Max 12.5W, PoE : Max 12.95W

Mechanical

• Color / Material - Dark Gray / Aluminum
• Product Dimensions / Weight - Ø91.0 x 368.6mm (3.58" x 14.51")/ 2.18Kg (4.81 lb)
• Gangbox - Single, Double, 4" Octagon
