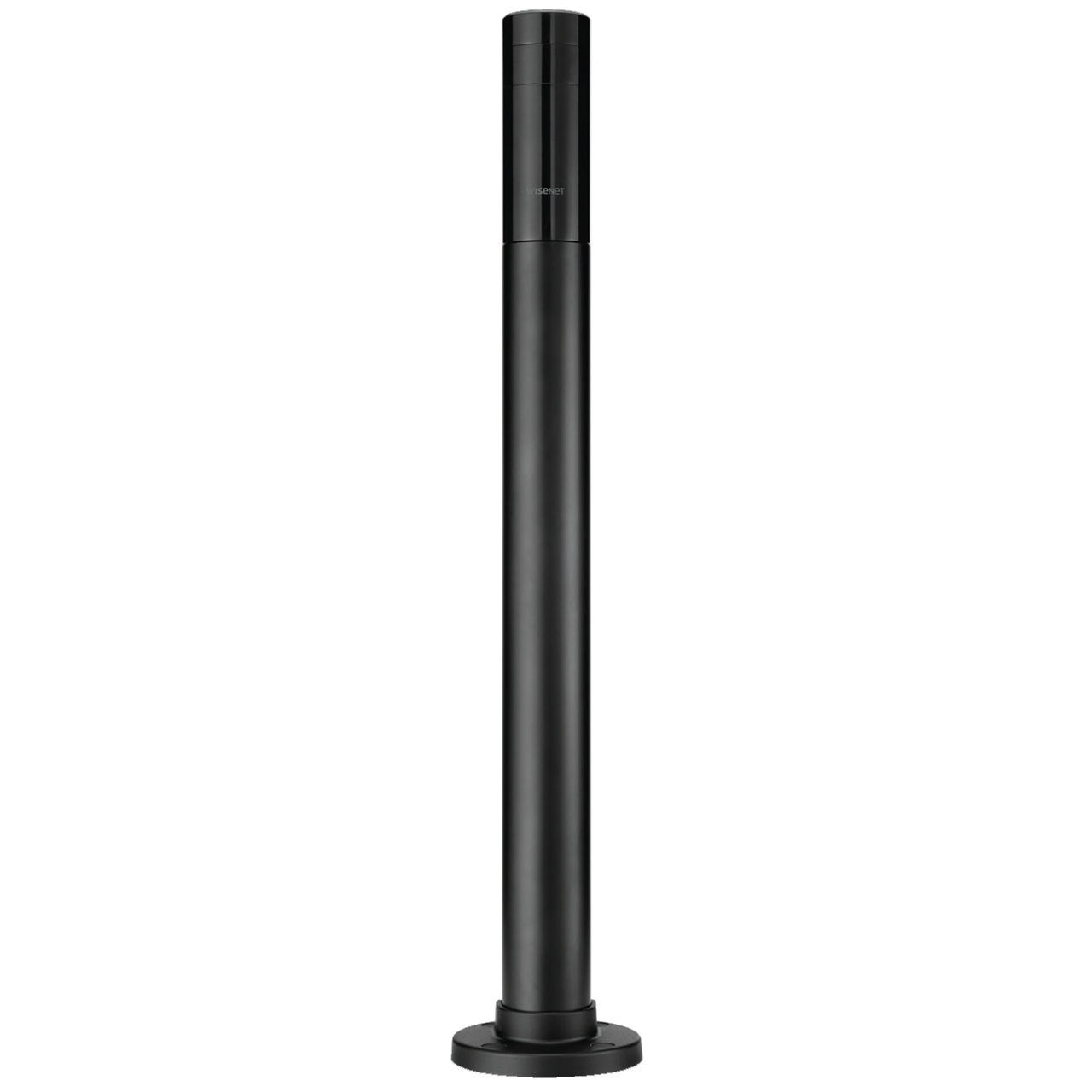

XNB-H6280B Hanwha Vision X Series 2.8mm 60FPS @ 1080p Indoor Day/Night WDR Bandit Barrier IP Security Camera 12VDC/POE

Specifications

Video

• Imaging Device - 1/2.8" 2MP CMOS
• Total Pixels - 1,945(H) x 1,109(V) 2.16MP
• Effective Pixels - 1,945(H) x 1,097(V) 2.13MP
• Scanning System - Progressive Scan
• Min. Illumination - Color : 0.03 Lux (F1.6, 1/30sec)
• S / N Ratio - 50dB
• Video Out - USB : Micro USB Type B, 1280 x 720, for Installation / CVBS : 1.0 Vp-p / 75Ω composite, 720 x 480 for installation

Lens

• Focal length - 2.8 mm Fixed focal
• Max. Aperture ratio - F2.0
• Angular Field of View - H : 107.4Ëš / V : 62.2Ëš / D : 122.0°
• Min. Object Distance - 0.5m (1.64ft)
• Focus Control - Fixed focus
• Lens / Mount Type - Fixed / RJ12 connected to main unit with 1.5m cable

Operational

• Camera Title - Off / On English / Numeric / Special characters / International characters - Multi-line (Maximum 5), Color (Gray / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution
• Day & Night - Auto (Electrical) / Color / B/W / Schedule
• Backlight Compensation - Off / BLC / HLC (Masking / Dimming) / WDR
• Wide Dynamic Range - (120dB)
• Contrast Enhancement - SSDR (Off / On)
• Digital Noise Reduction - SSNRV (2D + 3D Noise filter) (Off / On)
• Digital Image Stabilization - Off / On
• Defog - Off / Auto (input from fog detection) / Manual
• Motion Detection - Off / On (8ea, 8Point polygonal zones), Handover
• Privacy Masking - Off / On (32ea, polygonal zones)- Color : Gray / Green / Red / Blue / Black / White - Mosaic
• Gain Control - Off/Low / Middle / High
• White Balance - ATW / AWC / Manual / Indoor / Outdoor (included Mercury & Sodium)
• Contrast - Level adjustment
• LDC (Lens Distortion Correction) - Off / On (5 Levels with min / max)
• Electronic Shutter Speed - Minimum / Maximum / Anti Flicker (2 ~ 1/12,000sec)
• Digital PTZ - 24x, Digital PTZ (Preset, Group)
• Flip / Mirror - Off / On, Hallway View : 90Ëš/270
• Video & Audio Analytics - Tampering, Loitering, Directional / Virtual Line detection, Defocus detection, Fog detection, Enter / Exit, (Dis) Appear, Audio detection, Face detection, Motion detection, Digital auto tracking, Sound classification, People counting, Heatmap, Queue management
• Alarm Triggers - Motion detection, Video & Audio Analytics, Network disconnect
• Alarm Events - File Upload Via FTP, E-mail, Notification via e-mail, Local Storage (SD / SDHC / SDXC) or NAS recording at event triggers, External output, DPTZ preset
• Alarm I/O - Input 1ea / Output 1ea
• Pixel Counter - Support

Network

• Ethernet - RJ-45 (10/100 BASE-T)
• Video Compression Format - H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG
• Resolution - 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
• Max. Framerate - H.265 / H.264 : Maximum 60fps at all resolutions, MJPEG : Maximum 30fps
• Smart Codec - Manual mode (Area-based : 5ea)
• WiseStreamII - Support
• Video Quality Adjustment - H.265 / H.264 / MJPEG : Target bitrate level control
• Bitrate Control Method - H.265 / H.264 : CBR or VBR, MJPEG : VBR
• Streaming Capability - Multiple streaming (Up to 10 profiles)
• Audio In - Selectable (Mic in / Line in), Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
• Audio Out - Line out, Maximum output level : 1 Vrms
• Audio Compression Format - G.711 u-law/G.726 Selectable, G.726 (ADPCM) 8KHz, G.711 8KHz, G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps, AAC-LC : 48Kbps at 8 / 16 / 32 / 48KHz
• Audio Communication - Bi-directional (2-way)
• IP - IPv4, IPv6
• Protocol - TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
• Security - HTTPS (SSL) Login authentication, Digest login authentication, IP address filtering, User access log, 802.1X Authentication (EAP-TLS, EAP-LEAP)
• Streaming Method - Unicast / Multicast
• Max. User Access - 20 Users at Unicast Mode
• Edge Storage - SD/SDHC/SDXC 1 slot (up to 256GB) - Motion Images recorded in the SD/SDHC/SDXC memory card can be downloaded. NAS(Network Attached Storage), Local PC for Instant Recording
• Application Programming Interface - ONVIF profile S/G, SUNAPI (HTTP API), Open Platform
• Webpage Language - English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Web Viewer - Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 plugin-View Webviewer - Supported Browser: Google Chrome, Edge, Mozilla Firefox (Window 64-bit only), Internet Explorer 11, Apple Safari 10 (Mac OS X only)
• Central Management Software - Wisenet WAVE, SmartViewer, SSM

Environmental

• Operating Temperature / Humidity - -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
• Storage Temperature / Humidity - -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH

Electrical

• Input Voltage/ Current - 12V DC, PoE (IEEE802.3af, Class3)
• Power Consumption - Maximum 6.5W (12V DC), Maximum 6W (PoE)

Mechanical

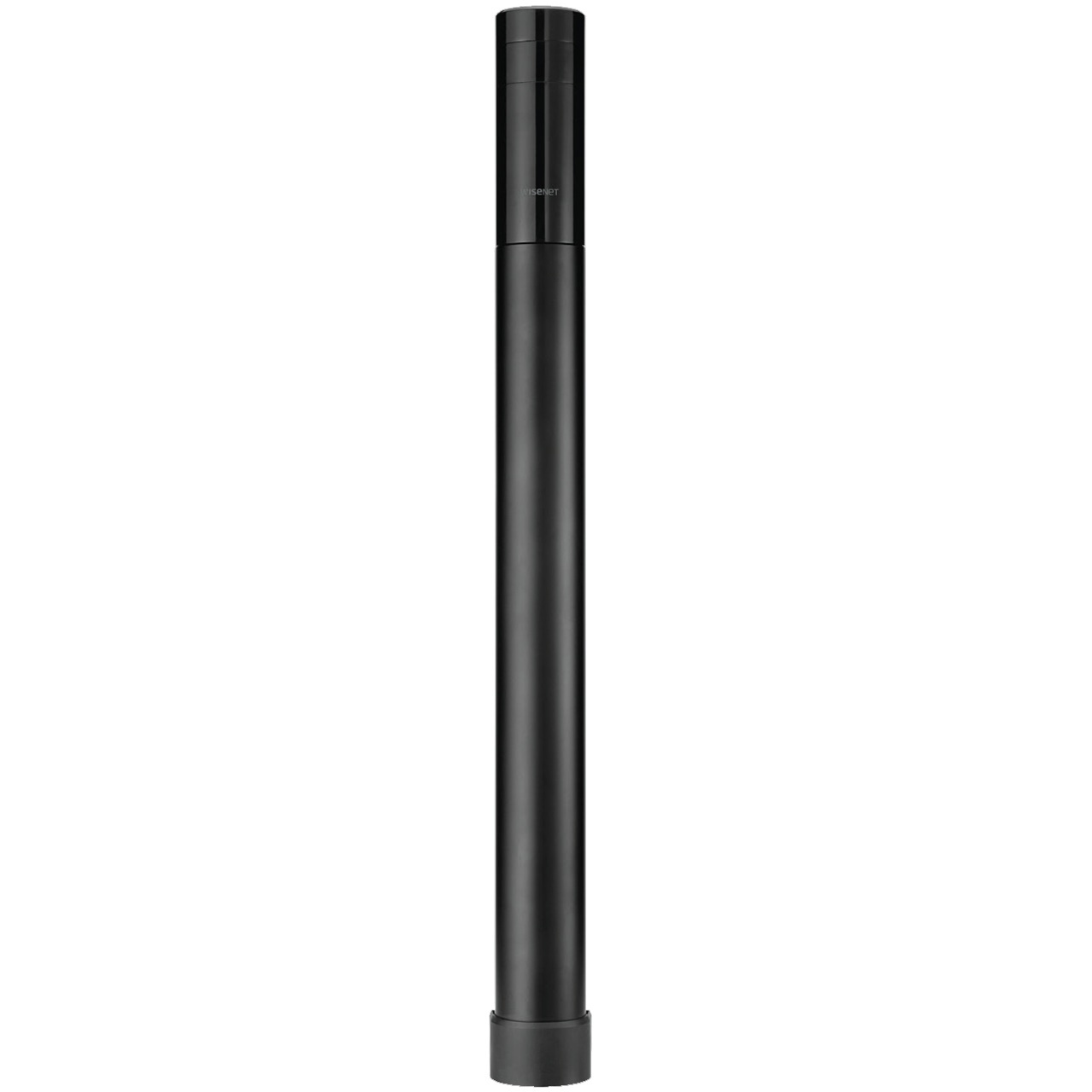

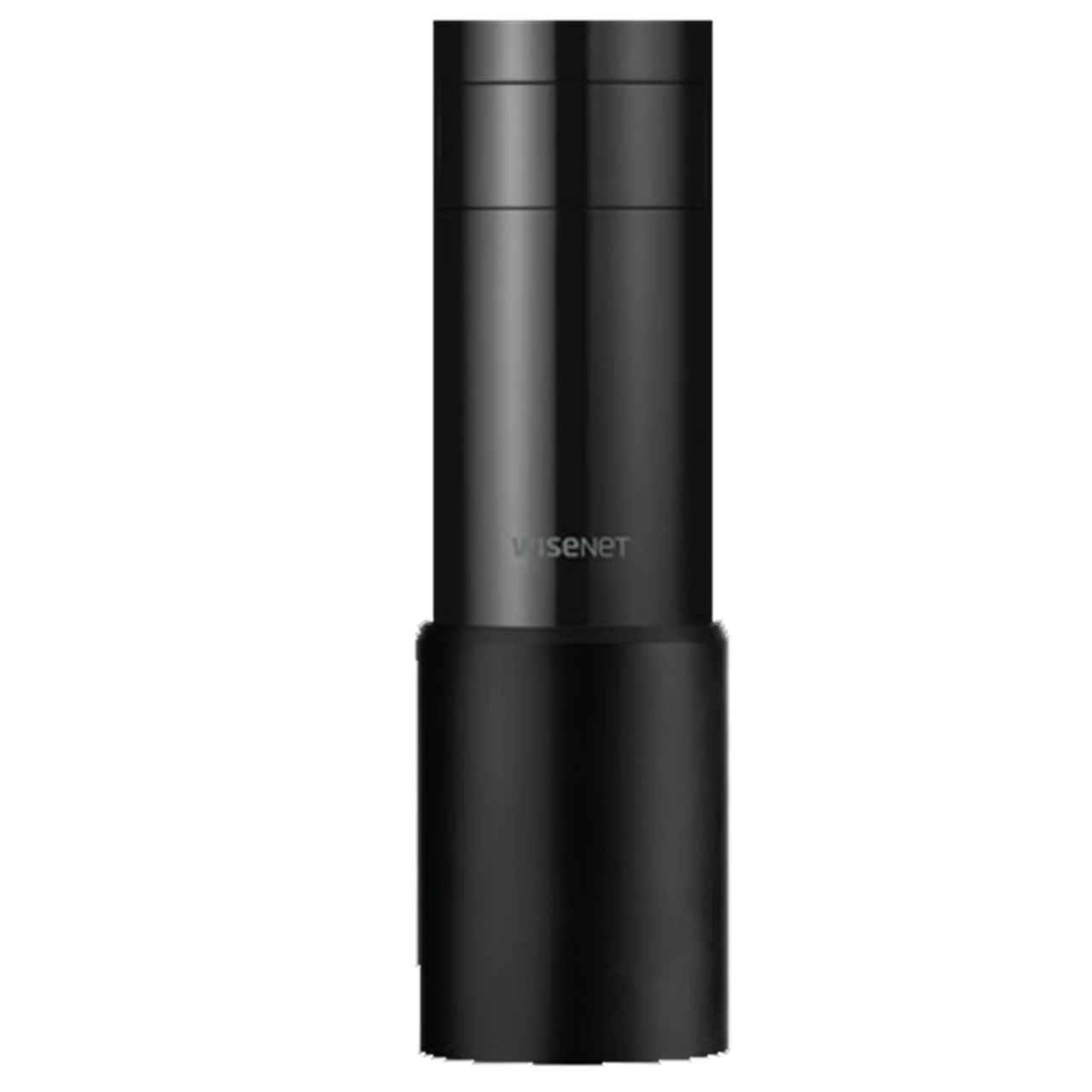

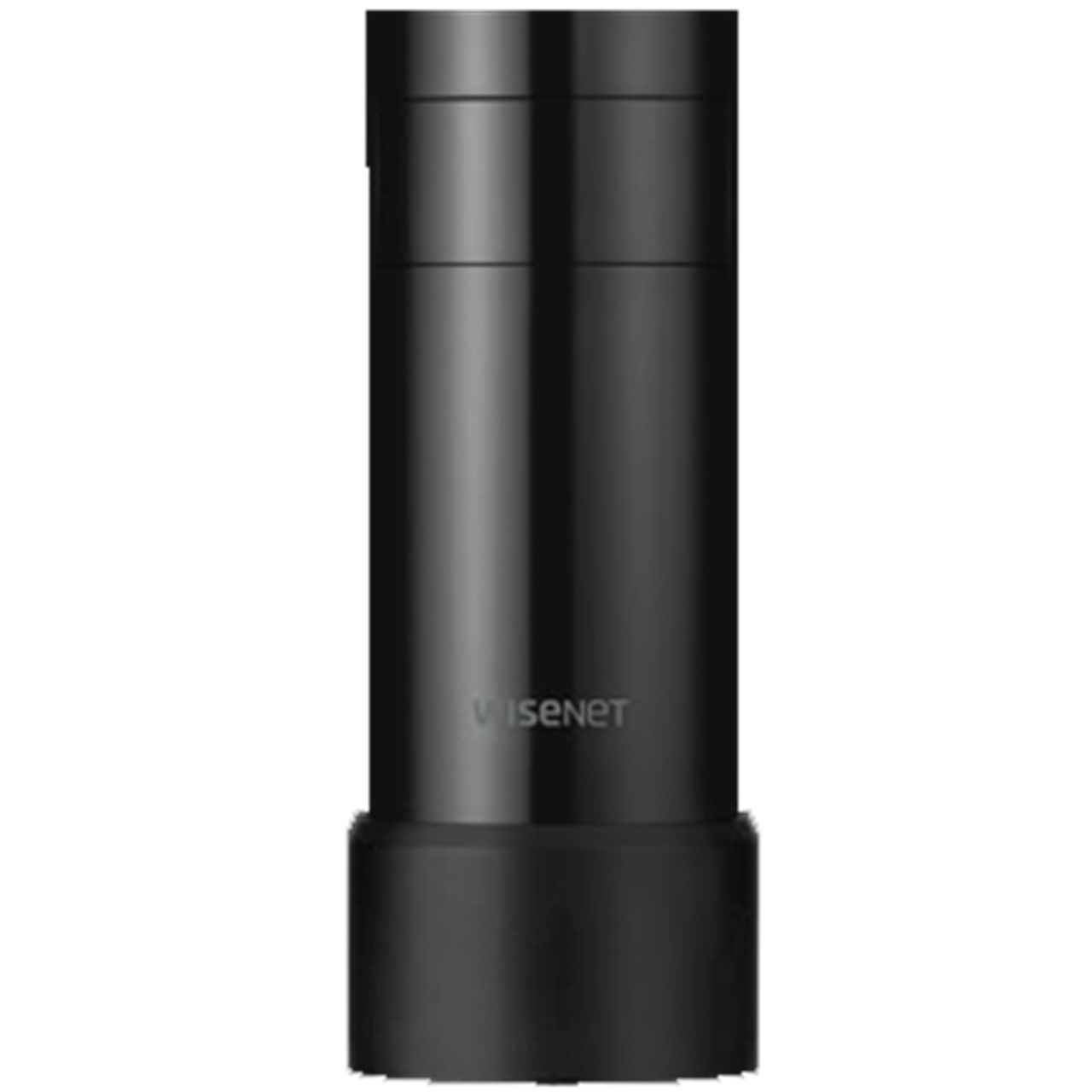

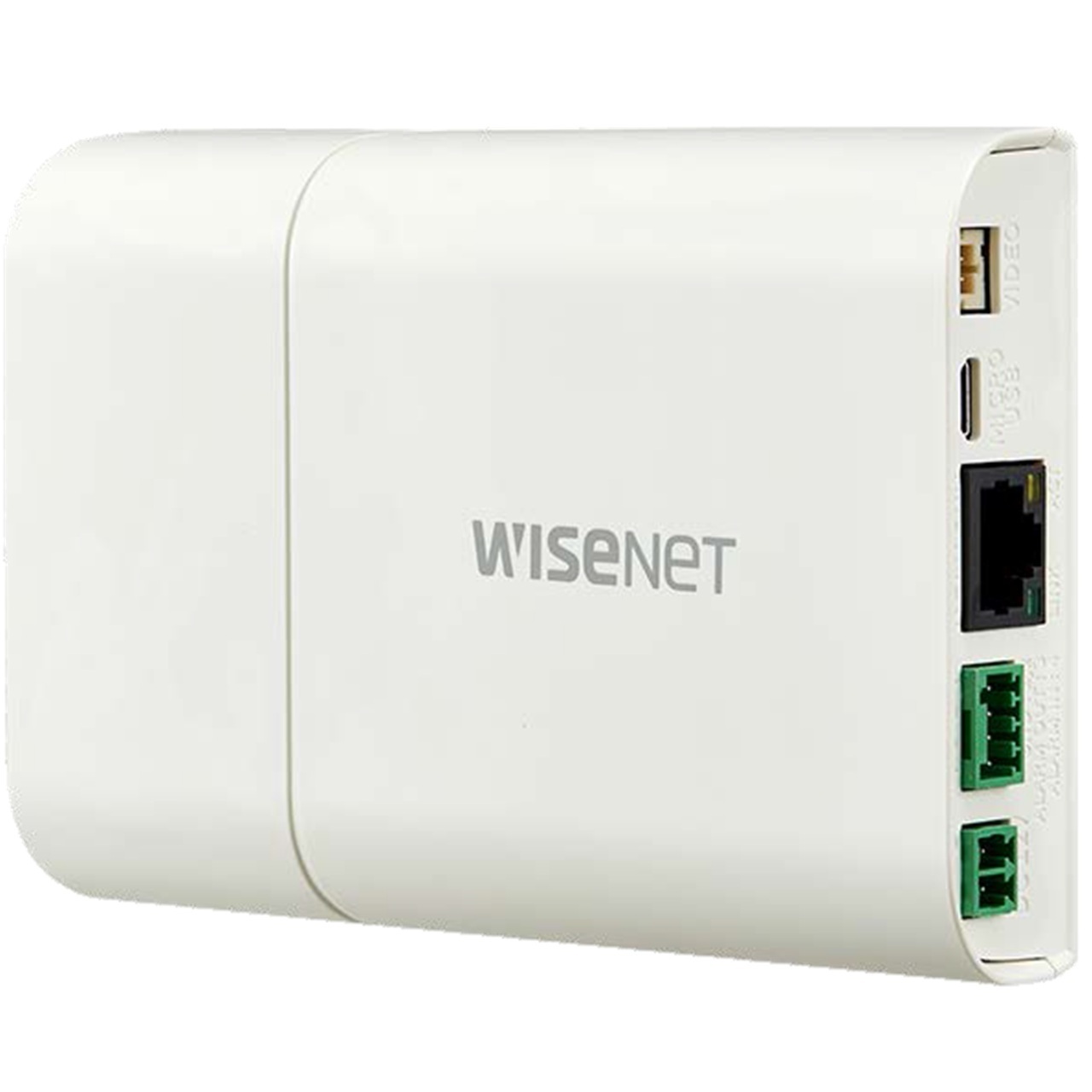

• Color / Material - Bandit Barrier : Black / Plastic & Metal, Main Unit : Ivory / Plastic
• Dimensions (WxH) - Bandit Barrier: 66.5x46x175~737mm (2.6x1.8x6.9~29.0") Main Unit: 131.1 x 28 x 86mm (5.16" x 1.10" x 3.39")
• Weight - Bandit Barrier: 250~1,000g (0.55~2.205 lb) / Camera Body: 245g (0.54 lb)
