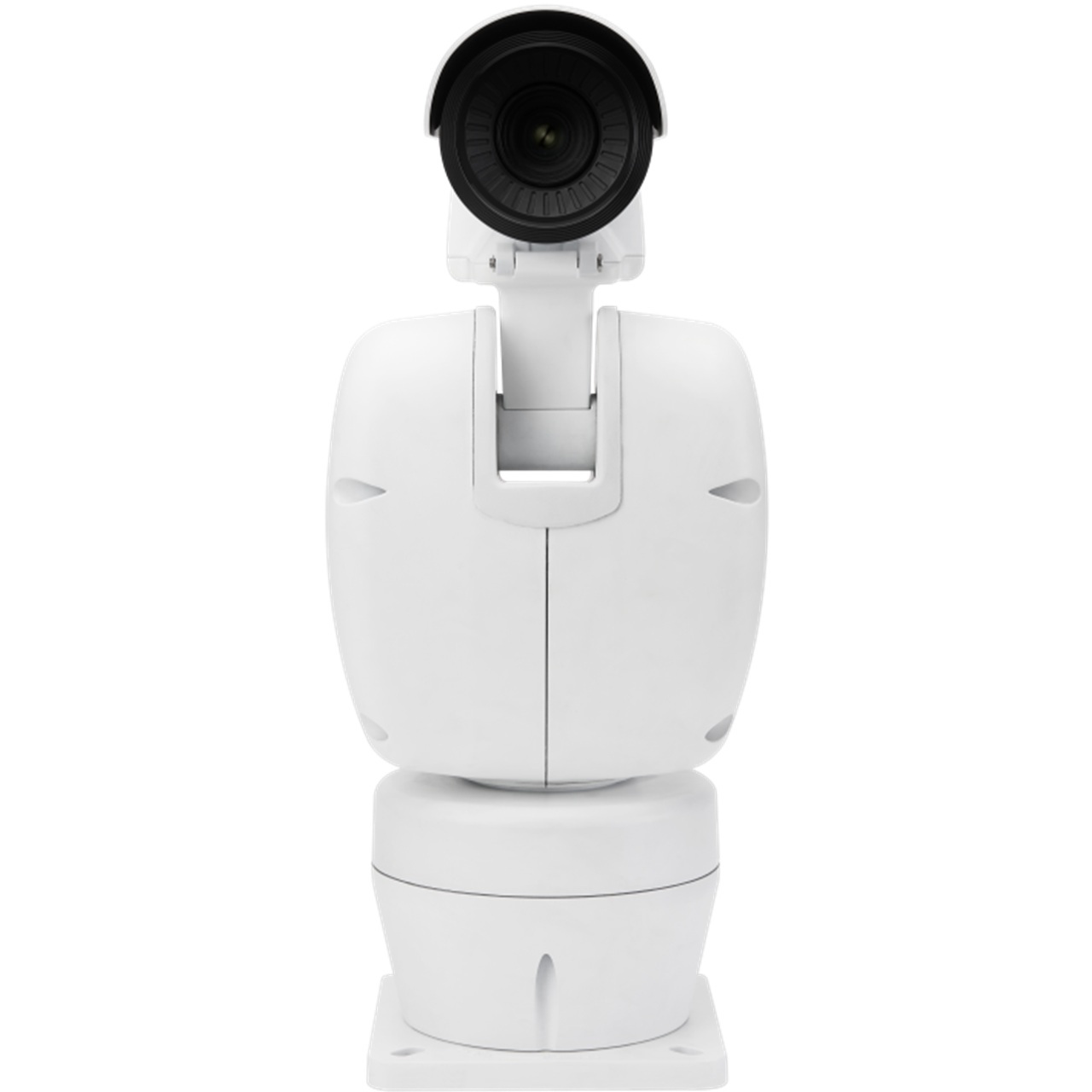

TNU-4041T Hanwha Vison T Series 19mm 30FPS @ 640 x 480 Outdoor Uncooled Thermal IP Security Camera 24VAC/POE

Specifications

Video

• Imaging Device - Uncooled micro bolometer
• Resolution - 640x480, 640x360, 320x240
• Max. Framerate - H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
• NETD - ＜50mK
• Pixel Size - 17㎛
• Video Out - CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
• Video Transmission Distance - CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation

Lens

• Focal Length (Zoom Ratio) - 19mm fixed focal
• Max. Aperture Ratio - F1.0
• Angular Field of View - H: 32° / V: 24.3° / D: 39.2°
• Min. Object Distance - 11m(36.09ft)
• Focus Control - Fixed

Pan / Tilt / Rotate

• Pan Range - 360° Endless
• Pan Speed - 0.025°~120°/sec
• Tilt Range - -90° ~40°
• Tilt Speed - 0.025°~40°/sec
• Sequence - Preset(300ea), Group(6ea)
• Preset Accuracy - ±0.3°

Operational

• Camera Title - Displayed up to 85 characters
• Direction Indicator - Supoort
• Digital Image Stabilization - Support(built-in gyro sensor)
• Motion Detection - 8ea, 8point polygonal zones
• Analytics - Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Temperature change detection, Sound classification, Shock detection
• Alarm Interface In/Out - Input 1ea, Output 2ea
• Alarm Triggers - Analytics, Network disconnect, Alarm input
• Alarm Events - File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output PTZ Preset
• Audio In - Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
• Audio Out - Line out, Max.output level: 1Vrms
• Color Pallettes - Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom

Network

• Ethernet - RJ-45(10/100BASE-T)
• Video Compression - H.265/H.264: Main/Baseline/High, MJPEG
• Audio Compression - G.711 u-law / G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
• Smart Codec - WiseStreamâ…¡
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
• Security - HTTPS(SSL) login authentication Digest login authentication IP address filtering User access log 802.1X authentication(EAP-TLS, EAP-LEAP)
• Application Programming Interface - ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform

General

• Webpage Language - English, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Edge Storage - Micro SD/SDHC/SDXC 1slot 256GB
• Memory - 1024MB RAM, 256MB Flash

Environmental & Electrical

• Operating Temperature / Humidity - -40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH
• Storage Temperature / Humidity - -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
• Certification - IP66, IK10, NEMA4X
• Input Voltage - 24VAC
• Power Consumption - 24VAC: Max 84W(Heater on), Max 62W(Heater off)

Mechanical

• Color / Material - White / Aluminum
• RAL Code - RAL9003
• Product Dimensions / Weight - (W)219×(H)528×(D)335mm(8.62x20.79x13.19"), 11.7Kg(25.79lb)
