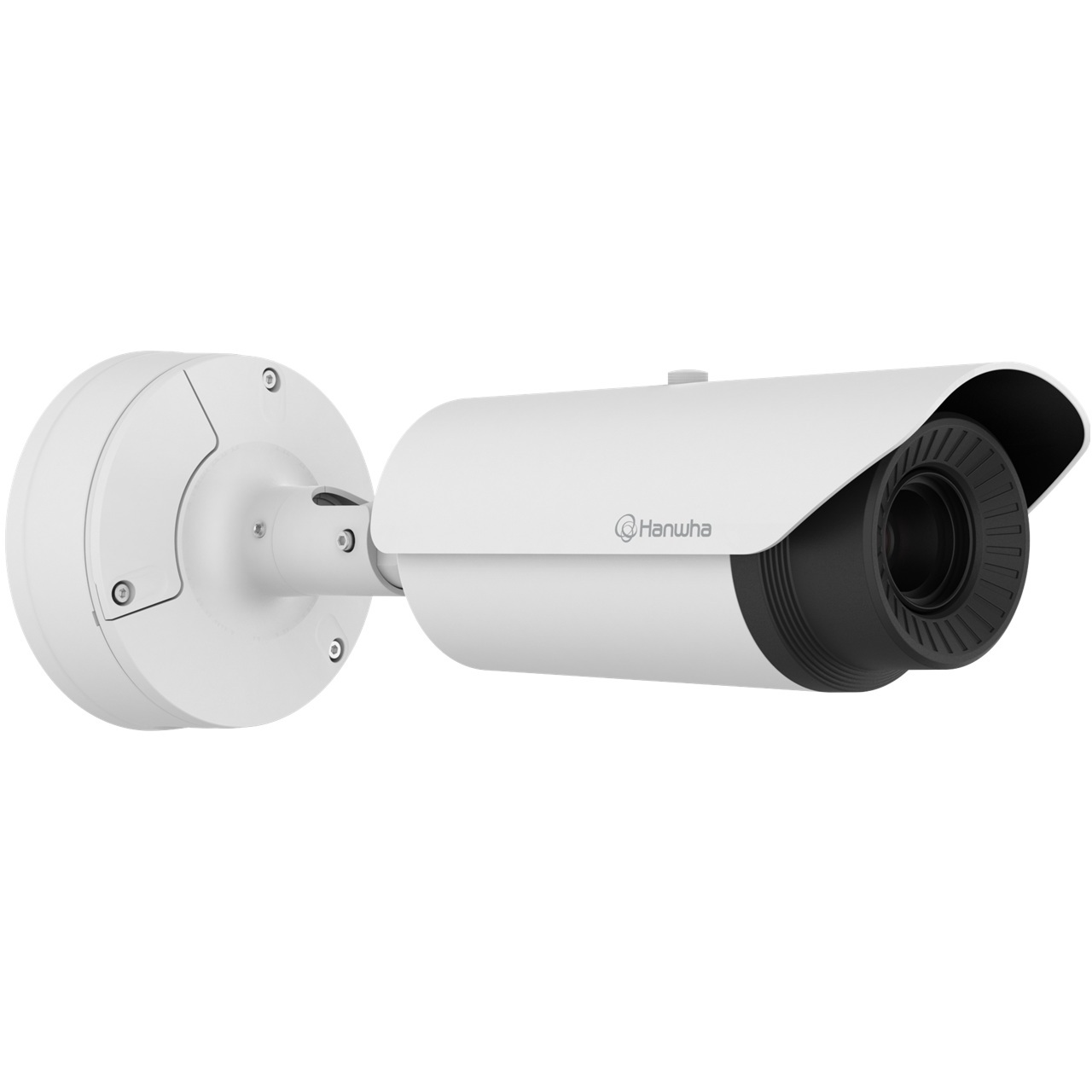

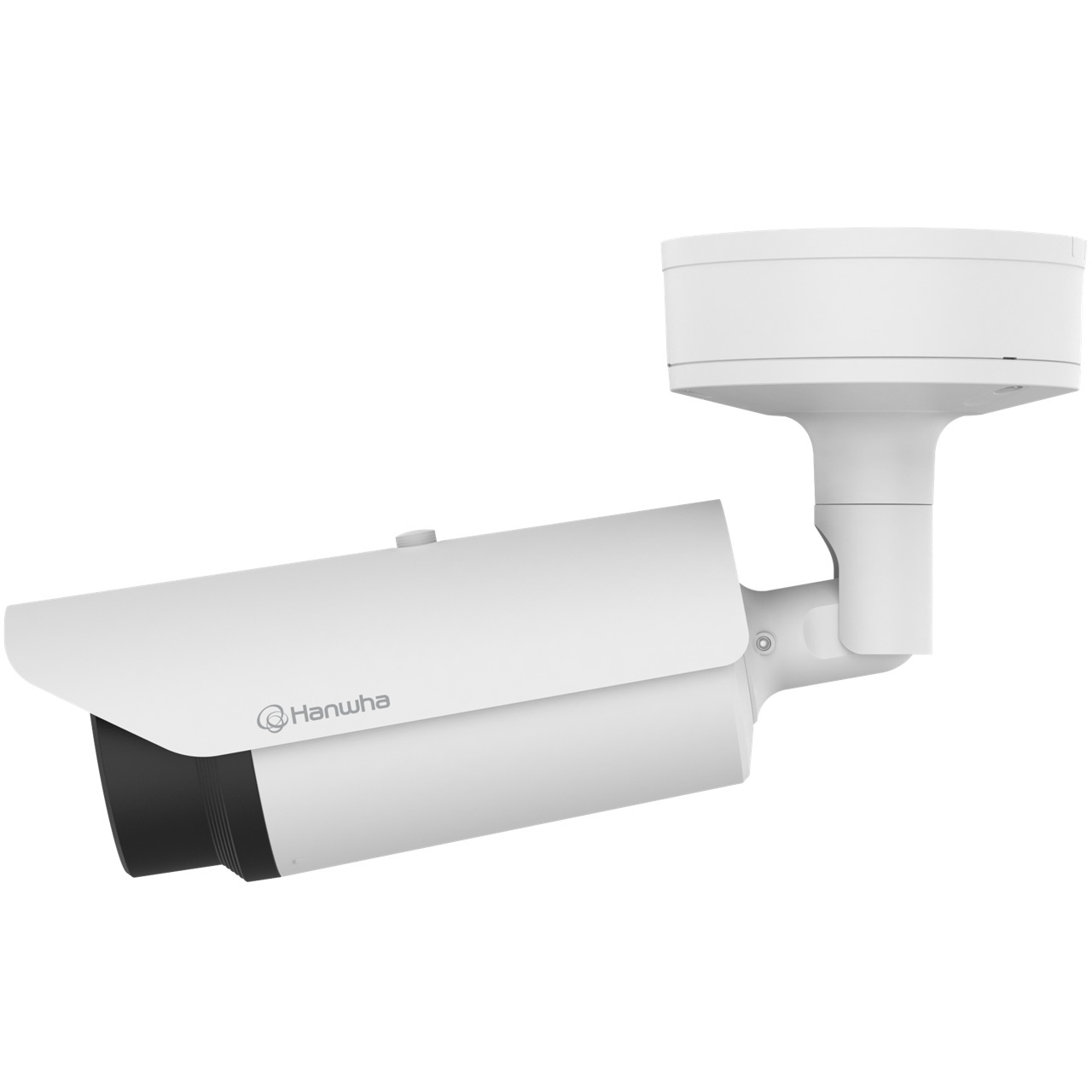

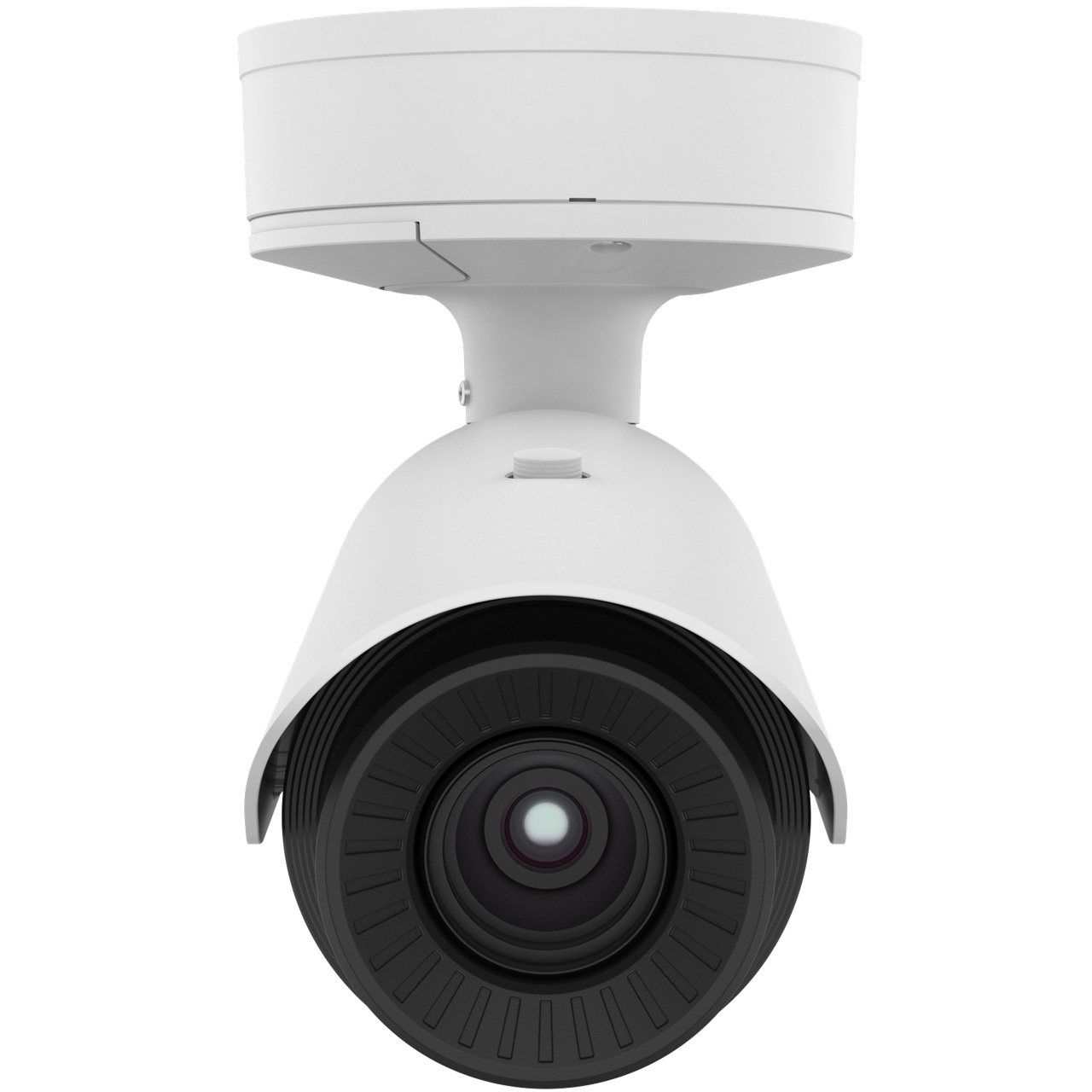

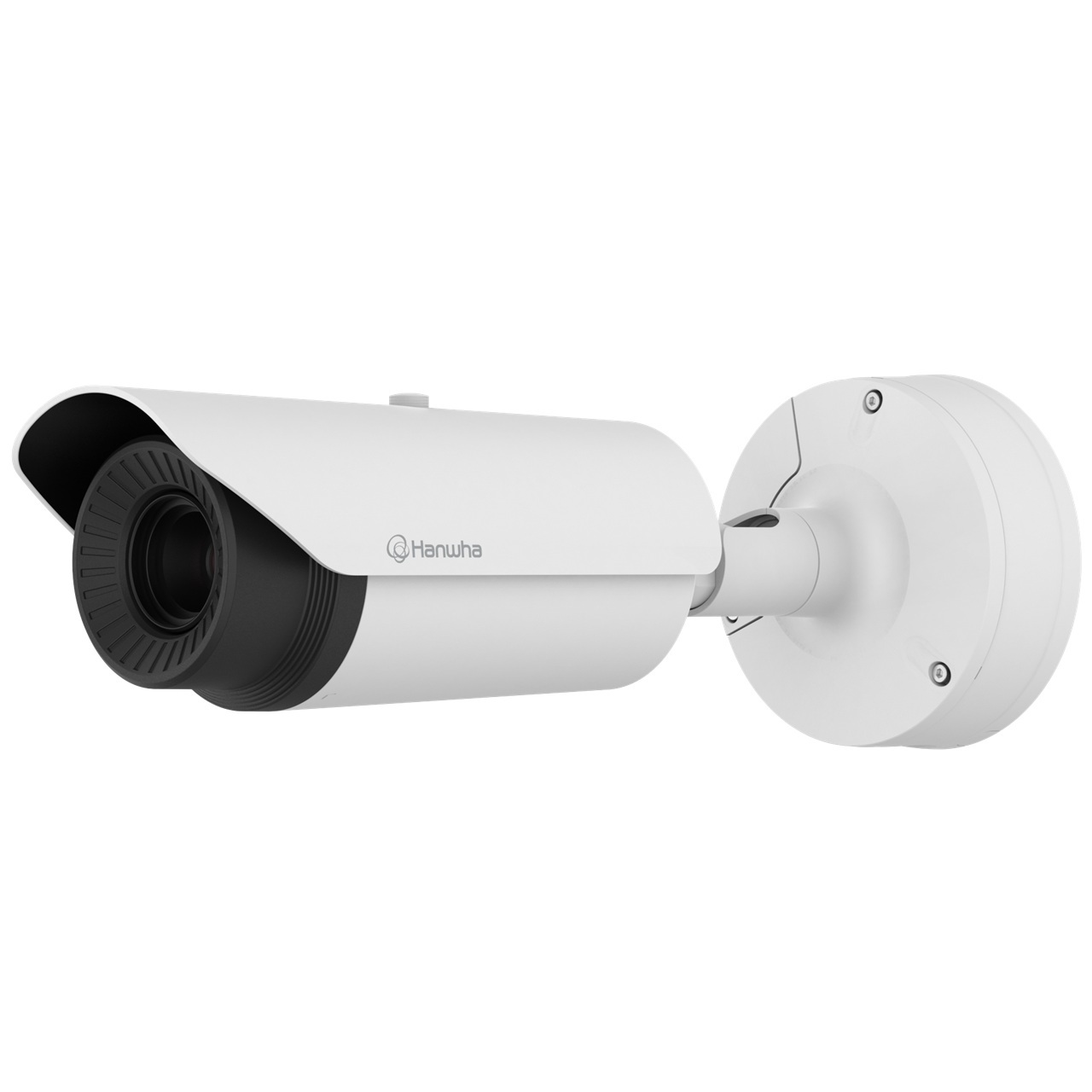

TNO-4030TR Hanwha Vision T Series13mm 30FPS @ 640 x 480 Outdoor Uncooled Thermal IP Security Camera 12VDC/24VAC/POE

Specifications

Video

• Imaging Device - Uncooled micro bolometer
• Resolution - 640x480, 640x360, 320x240
• Max. Framerate - H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
• NETD - ＜50mK
• Pixel Size - 17㎛
• Video Out - CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation

Lens

• Focal Length (Zoom Ratio) - 13mm fixed focal
• Max. Aperture Ratio - F1.0
• Angular Field of View - H: 48.6° / V: 36.4° / D: 61.6°
• Min. Object Distance - 5m(16.40ft)
• Focus Control - Fixed

Operational

• Camera Title - Displayed up to 85 characters
• Digital Image Stabilization - Support(built-in gyro sensor)
• Motion Detection - 8ea, 8point polygonal zones
• Privacy Masking - 24ea, polygonal zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic
• Video Rotation - Flip, Mirror, Hallway view(90Ëš/270Ëš)
• Analytics - Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Temperature change detection, Sound classification, Shock detection
• Alarm Interface In/Out - Input 1ea, Output 2ea
• Alarm Triggers - Analytics, Network disconnect Alarm input, MQTT subscription
• Alarm Events - When alarm trigger occurred - File upload(image): e-mail/FTP - Notification: e-mail - Recording: SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover: PTZ preset - MQTT: publication
• Audio In - Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
• Audio Out - Line out, Max.output level: 1Vrms
• Color Pallettes - Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom

Radiometry

• Temperature Detect Range - -20°C~130°C(-4°F~266°F)
• Temperature Accuracy - ±5°C(≤100°C), ±20%(>100°C)
• Temperature Detection - 6 Quadrangle ROI zones, whole FoV area
• Additional - Hybrid palettes, Spot temperature reading

Network

• Ethernet - RJ-45(10/100BASE-T)
• Video Compression - H.265/H.264: Main/Baseline/High, MJPEG
• Audio Compression - G.711 u-law / G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
• Smart Codec - Manual(5ea area), WiseStreamâ…¡
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP, MQTT
• Security - HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP)
• Application Programming Interface - ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform

General

• Webpage Language - English, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Edge Storage - Micro SD/SDHC/SDXC 1slot 256GB
• Memory - 1024MB RAM, 256MB Flash

Environmental & Electrical

• Operating Temperature / Humidity - -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
• Storage Temperature / Humidity - -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
• Certification - IP66, IK10, NEMA4X
• Input Voltage - PoE(IEEE802.3af, Class3), 24VAC, 12VDC
• Power Consumption - PoE: Max. 10W, typical 8.6W 12VDC: Max. 9W, typical 7.5W 24VAC: Max. 10.5W, typical 8.9W

Mechanical

• Color / Material - White / Aluminum
• RAL Code - RAL9003
• Product Dimensions / Weight - Φ101.97x401.8mm(4.01x15.82") / 3,124g(6.89 lb)
