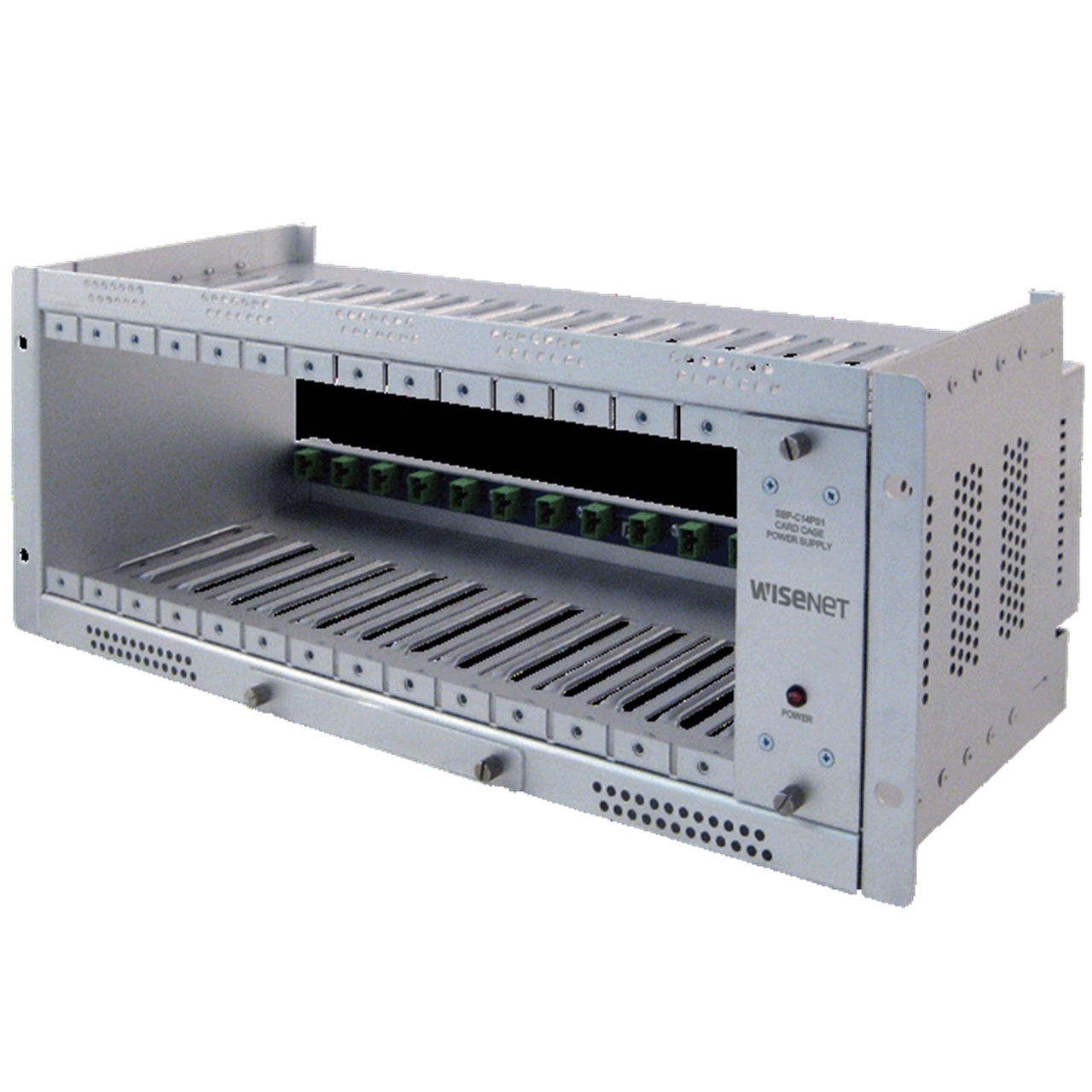

SBP-C14 Hanwha Vision Rack Mount Card Cage With Power Supply

There are currently no active sales or promotions related to this item.

SKU: SBP-C14

Brand: Hanwha Vision

Rack Mount Card Cage With Power Supply

Features:

Automatic electronic current limiting feature
Voltage transient protection on all power and signal input/output lines provides unconditional protection from power surges and other voltage transient events.
(14) Fourteen 1-inch rack slots available
All modules located within the chassis rack are hot-swappable

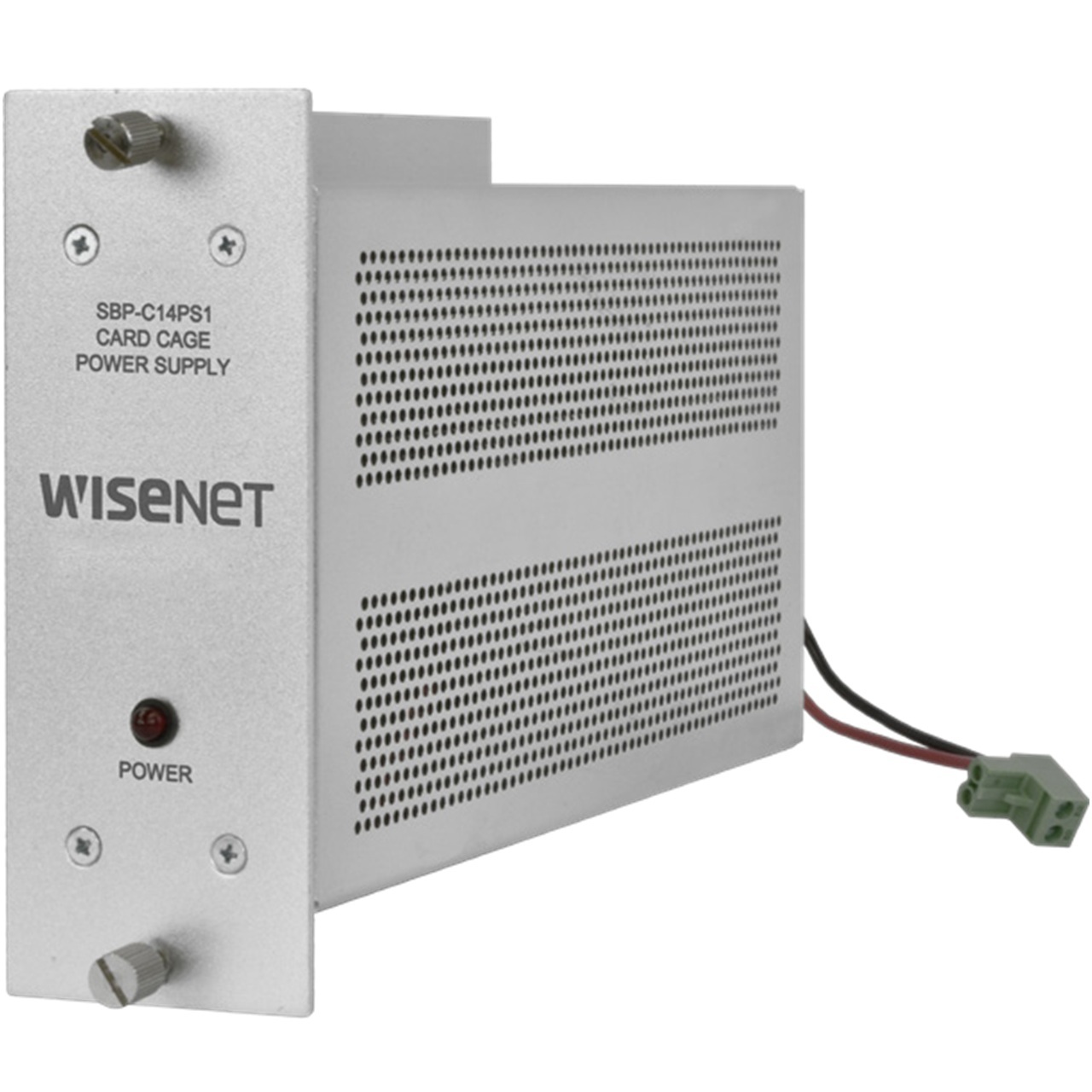

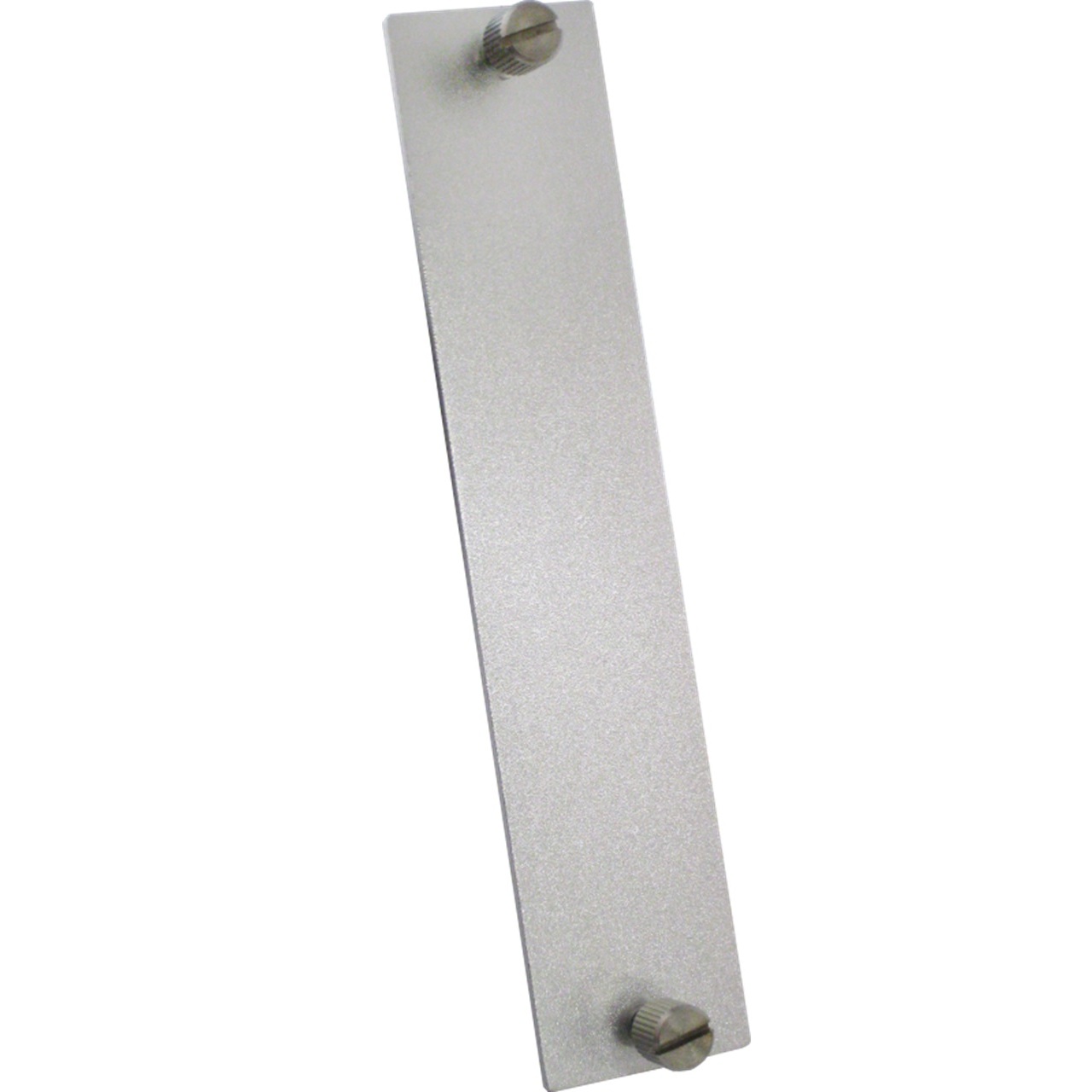

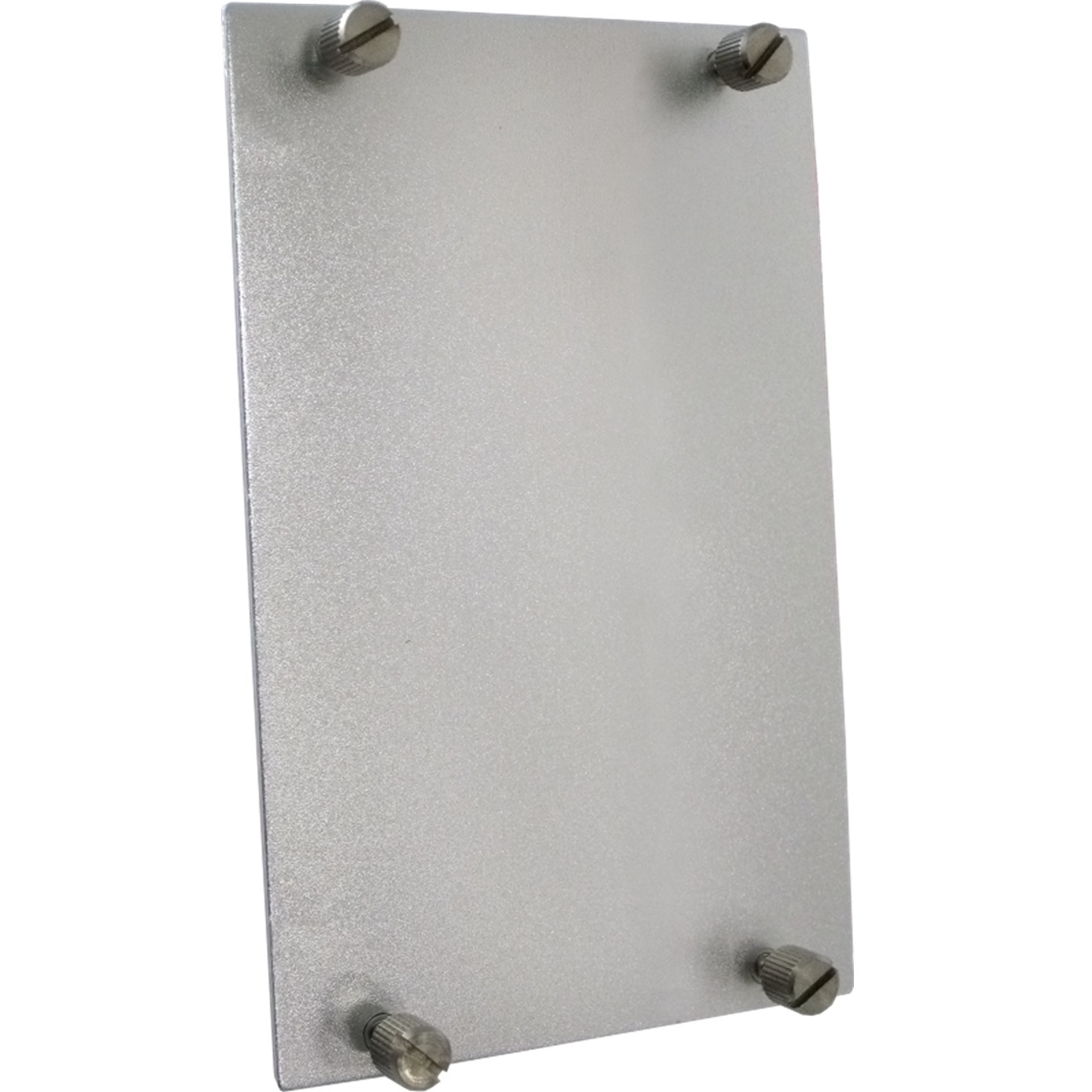

Available replaceable modular power supply & blank panels

More details...

There are currently no active sales or promotions related to this item.

MPN: SBP-C14
EAN: 849688012208

MSRP Price: $1,025.00

Web Price: $1,025.00

Quantity:

Add to List

Already a DWG Dealer? - Sign In to view pricing.

Product Details

Specifications

Electrical

Input Voltage - 90-264 VAC @ 70 W Maximum
Output Voltage - 9 VDC +/- 5% @ 6.5 Amps @ 75˚C
Fusing - 1.25 A slow blow 5x20mm (rack power supply) Plug-in modules individually electronically fused. Each power supply unit is individually fused.
Power Indicator - Red LED
AC Line Cord - Detachable, IEC-connected. Allows easy field replacement or exchange for various worldwide AC power plug configurations.

Mechanical

Size (L × W × H) - 19.0 × 7.5 × 6.9 in. (48.2 × 19 × 17.5 cm)
Rack Slots: - (14) 1-inch slots available
Shipping Weight - <5 lbs./2.15 kg

Environmental

MTBF - >100,000 hours
Operating Temp - -40˚ C to +75˚ C
Storage Temp - -40˚ C to +85˚ C
Heat Generation - 240 BTU

SBP-C14 Specifications PDF
