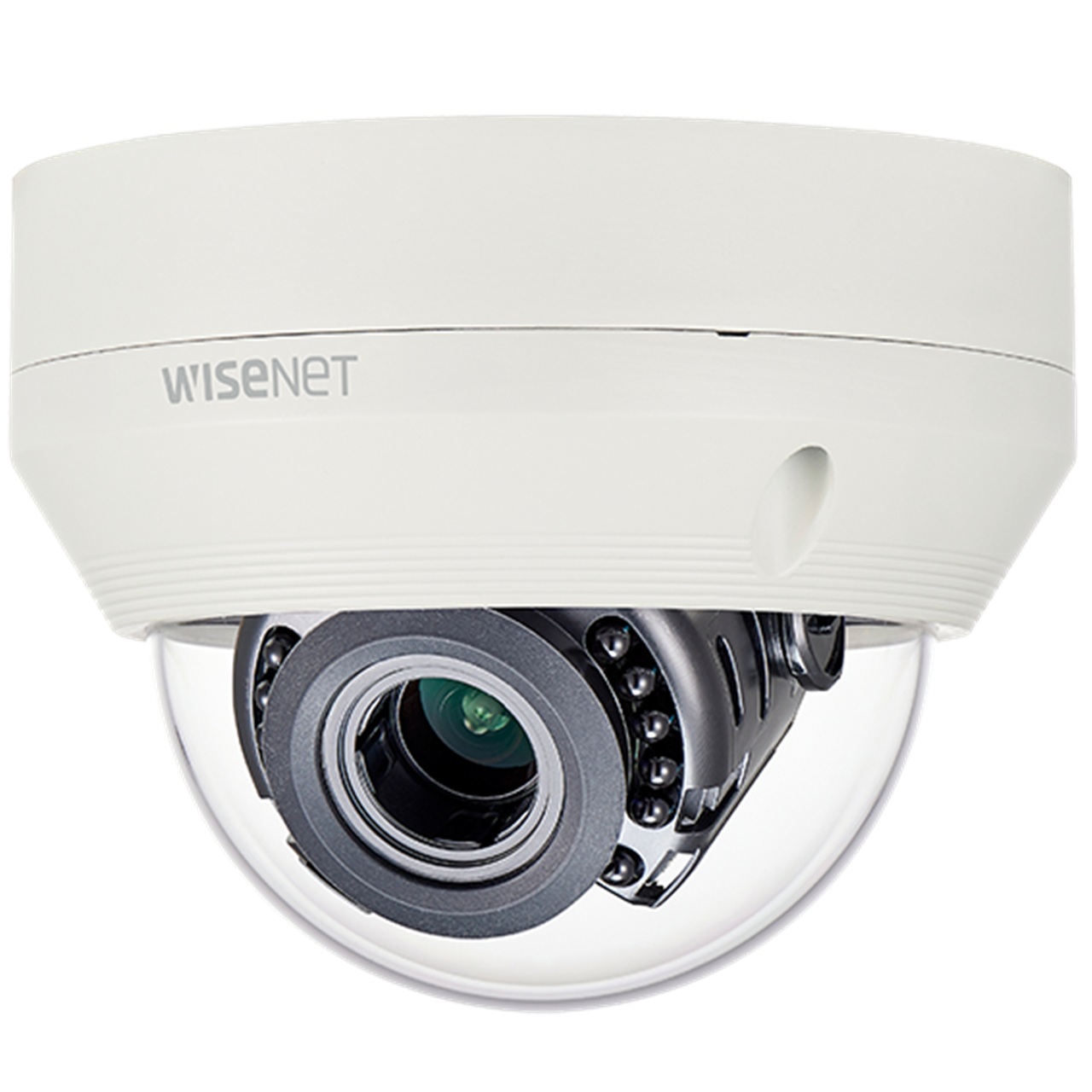

HCV-7070RA Hanwha Vision 3.2-10mm Varifocal 30FPS @ 4MP Outdoor IR Day/Night Dome AHD/Analog Security Camera 12VDC/24VAC

Specifications

Video

• Imaging Device - 1/3" 4MP CMOS
• Effective Pixels - 2688(H)x1520(V)
• Min. Illumination - Color: 0.16Lux(F1.6, 1/30sec) BW: 0Lux(IR LED on)
• Video Out - BNC(AHD), additional CVBS for installation(2Pin connector type)

Lens

• Focal Length (Zoom Ratio) - 3.2~10mm(3.1x) manual varifocal
• Max. Aperture Ratio - F1.6
• Angular Field of View - H: 93.48˚(Wide)~29.44˚(Tele), V: 50.47˚(Wide)~16.64˚(Tele), D: 112.53˚(Wide)~33.7˚(Tele)
• Min. Object Distance - 0.5m(1.64ft)
• Focus Control - Manual
• Lens Type - DC auto iris

Pan / Tilt / Rotate

• Pan / Tilt / Rotate Range - 0˚~350˚ / 0˚~63˚ / 0˚~355˚

Operational

• IR Viewable Length - 30m(98.43ft)
• Day & Night - Auto(ICR)
• Backlight Compensation - UserBLC, HLC, DWDR
• Digital Noise Reduction - 2DDNR
• Motion Detection - 4 zones
• Privacy Masking - 2 zones
• Gain Control - Low / Middle / High / Very High
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• Electronic Shutter Speed - 1/30 ~ 1/12,000sec(N), 1/25~ 1/12,000sec(P)
• Video Rotation - H-Rev/V-Rev
• Analytics - Motion detection
• Alarm I/O - MD Output 1ea
• Coaxial Protocol - ACP(AHD Coax Protocol), CVBS: Pelco-C(Coaxitron)
• Video Transmission Distance - 500m(5C2V Coaxial Cable)

Network

• Resolution - 2560x1440
• Max. Framerate - 30fps@4M(N), 25fps@4M(P)

Environmental

• Operating Temperature/Humidity - -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
• Certification - IP66, IK10

Electrical

• Input Voltage - 24VAC, 12VDC
• Power Consumption - Max 5.8W

Mechanical

• Color/Material - Ivory / Aluminum
• Product Dimensions/Weight - Ø137.0x106.1mm(Ø5.39”x4.18”), 715g(1.58 lb)
• Hanging mount(Dome) - SBP-301HM5
• Skin cover(Dome) - SPB-VAN4, SPB-VAN72

HCV-7070RA Specifications PDF
