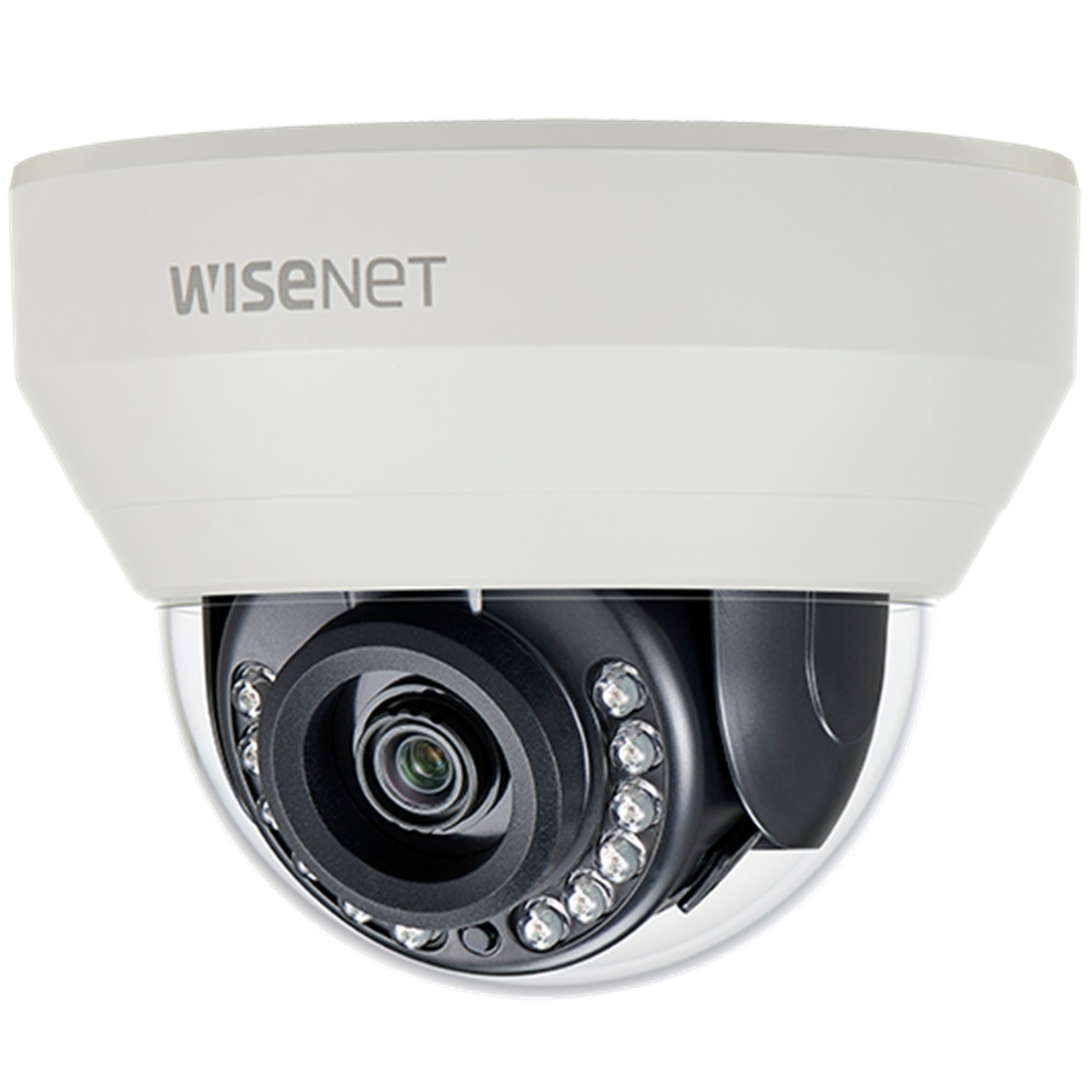

HCD-7010RA Hanwha Vision 2.8mm 30FPS @ 4MP Indoor IR Day/Night WDR Dome AHD/Analog Security Camera 12VDC

Specifications

Video

• Imaging Device - 1/3" 4MP CMOS
• Effective Pixels - 2688(H)x1520(V)
• Min. Illumination - Color: 0.26Lux(F1.8, 1/30sec) BW: 0Lux(IR LED on)
• Video Out - BNC(AHD), additional CVBS for installation(2Pin connector type)

Lens

• Focal Length (Zoom Ratio) - 2.8mm fixed
• Max. Aperture Ratio - F1.8
• Angular Field of View - H: 107.48˚, V: 59.67˚, D: 122.01˚
• Min. Object Distance - 0.5m(1.64ft)

Pan / Tilt / Rotate

• Pan / Tilt / Rotate Range - 0˚~350˚ / 0˚~67˚ / 0˚~355˚

Operational

• IR Viewable Length - 20m(65.62ft)
• Day & Night - Auto(ICR)
• Backlight Compensation - UserBLC, HLC, DWDR
• Digital Noise Reduction - 2DDNR
• Motion Detection - 4 zones
• Privacy Masking - 2 zones
• Gain Control - Low / Middle / High / Very High
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• Electronic Shutter Speed - 1/30 ~ 1/12,000sec(N), 1/25~ 1/12,000sec(P)
• Video Rotation - H-Rev/V-Rev
• Analytics - Motion detection
• Coaxial Protocol - ACP(AHD Coax Protocol), CVBS: Pelco-C(Coaxitron)
• Video Transmission Distance - 500m(5C2V Coaxial Cable)

Network

• Resolution - 2560x1440
• Max. Framerate - 30fps@4M(N), 25fps@4M(P)

Environmental

• Operating Temperature/Humidity - -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH

Electrical

• Input Voltage - 12VDC
• Power Consumption - Max 5W

Mechanical

• Color/Material - Ivory / Plastic
• Product Dimensions/Weight - Ø110.1 x 86.1mm(Ø4.33”x3.39”), 240g(0.53 lb)
• Hanging mount(Dome) - SBP-300HM7
• Skin cover(Dome) - SPB-IND12
