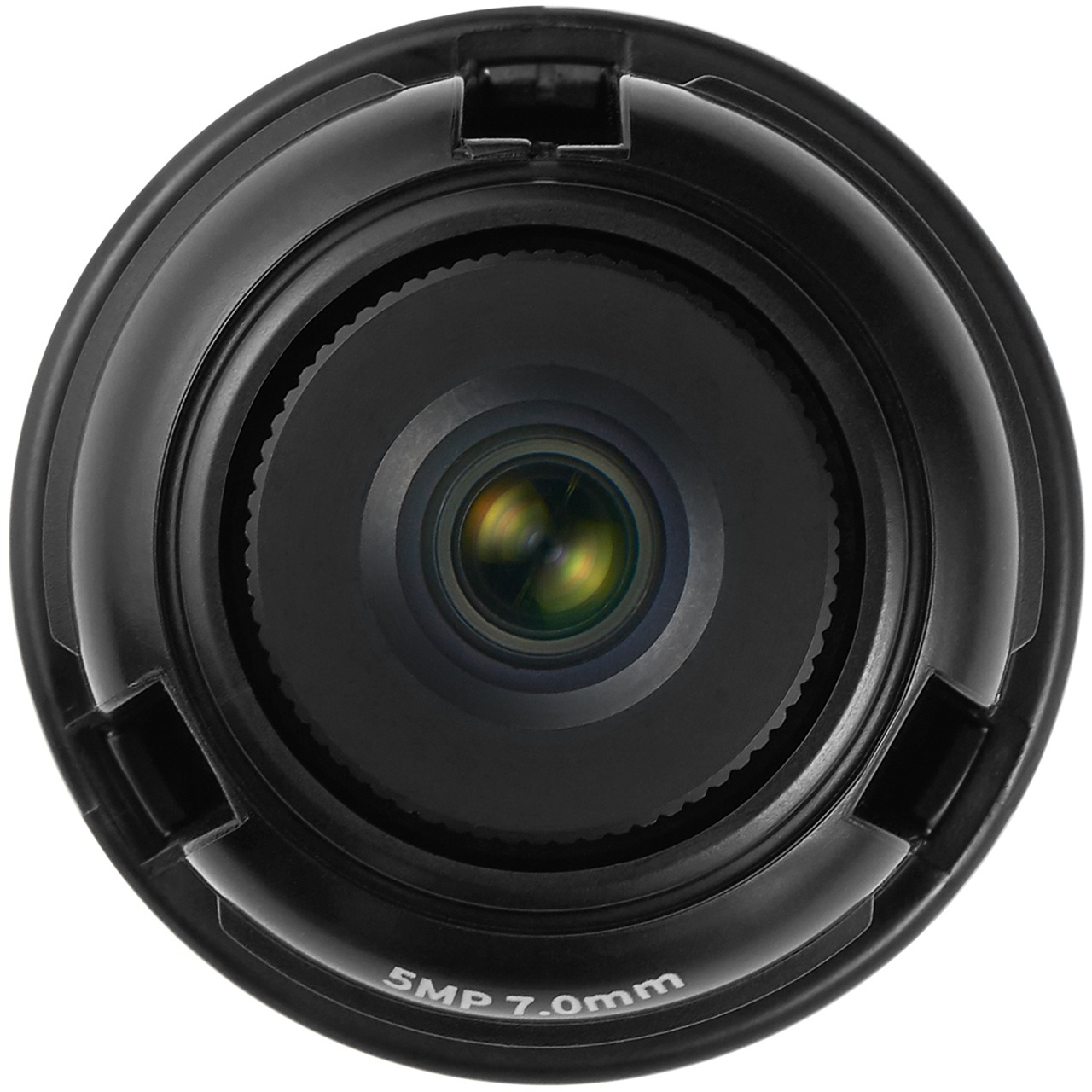

SLA-5M7000D Hanwha Vision 7mm PNM-9000VD Lens Module

SLA-5M7000D Hanwha Vision 7mm PNM-9000VD Lens Module	SLA-5M7000D Hanwha Vision 7mm PNM-9000VD Lens Module
(Click to see larger image and other views)

SLA-5M7000D Hanwha Vision 7mm PNM-9000VD Lens Module	SLA-5M7000D Hanwha Vision 7mm PNM-9000VD Lens Module
(Click to see larger image and other views)

There are currently no active sales or promotions related to this item.

SKU: SLA-5M7000D

Brand: Hanwha Vision

PNM-9000VD Lens module

Features:

0.16Lux@F1.6 Color, B/W (5MP lenses)
Selectable lens options: 3.7 / 4.6 / 7.0mm fixed lens (5MP)

More details...

There are currently no active sales or promotions related to this item.

MPN: SLA-5M7000D
EAN: 8801089173478

MSRP Price: $250.00

Web Price: $250.00

Quantity:

Add to List

Already a DWG Dealer? - Sign In to view pricing.

Product Details

Specifications

Video

Imaging Device - 1/1.8" 5MP CMOS
Effective Pixels - 2616 (H) x 1976 (V)
Min. Illumination - Color : 0.16Lux(F1.6, 1/30sec, 30IRE) B/W : 0.16Lux(F1.6, 1/30sec, 30IRE)

Lens

Focal Length (Zoom Ratio) - 7.0mm fixed focal
Max. Aperture Ratio - F1.6
Angular Field of View - H: 50.7°, V: 37.8°, D: 63.8°
Lens Type - Fixed Focal

Pan / Tilt / Rotate

Pan / Tilt / Rotate Range - -90°~+90° / +36~+73° / -180°~+180°

Operational

Wide Dynamic Range - 120dB
Day & Night - Auto(Elctrical)

Mechanical

Color/ Material - Black / Plastic
Product dimensions / weight - Ø35.5x35.9mm(1.40x1.41") / 35g(0.08 lb)

SLA-5M7000D Specifications PDF

Check out some additional items that you may need to purchase with this product:

Check the check boxes next to the additional products that you would like to add to the shopping cart, then click on the "Add to Cart" button above. A check box is not shown if a product requires that you select an option or fill out a field. (

) indicates a required accessory.

PNM-9000VD Hanwha Vision 30FPS @ 10MP Outdoor Day/Night WDR Multi-Sensor IP Security Camera PoE - No Lens

MSRP Price: $1,100.00

Web Price: $1,100.00
