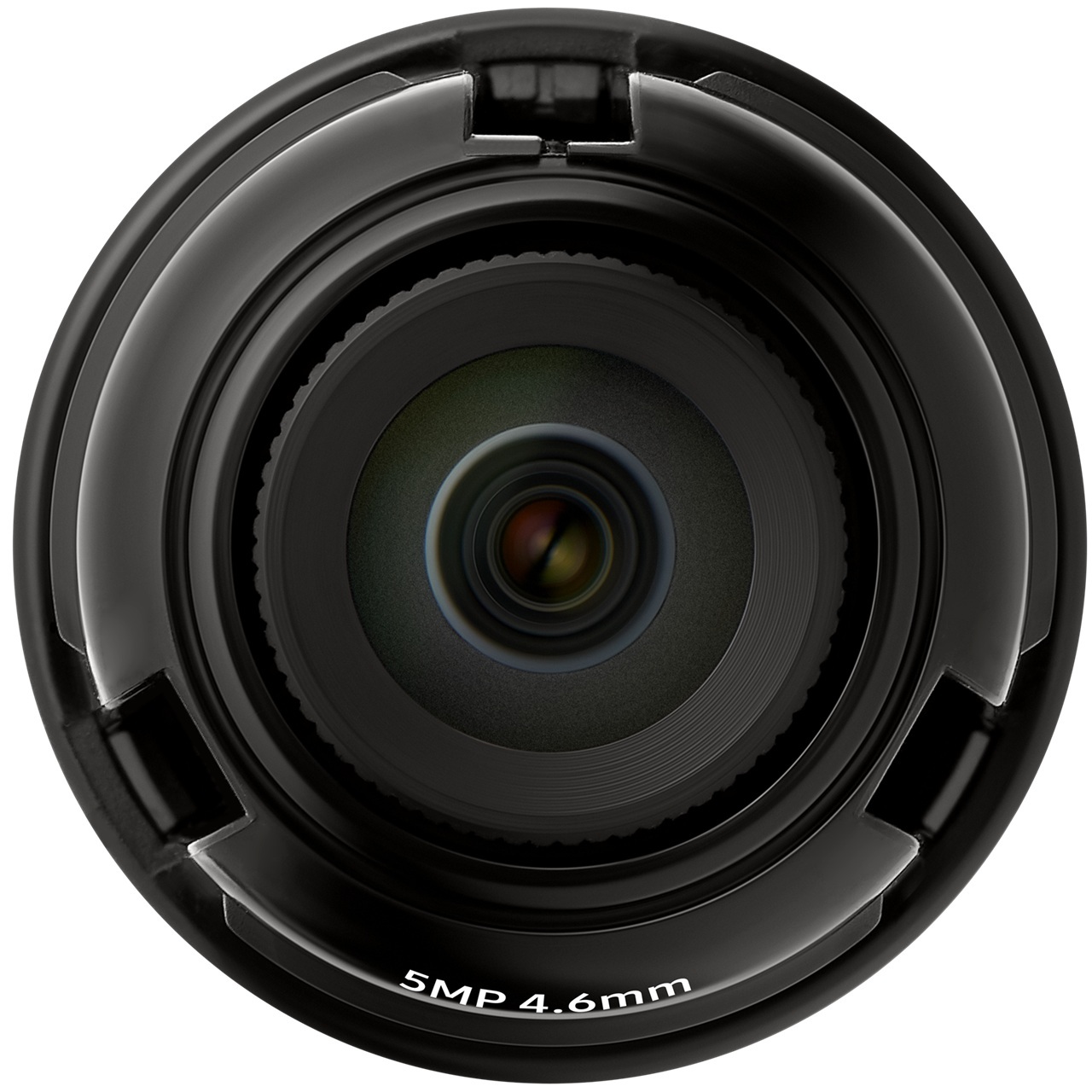

SLA-5M4600D Hanwha Vision 4.6mm PNM-9000VD Lens Module

SLA-5M4600D Hanwha Vision 4.6mm PNM-9000VD Lens Module	SLA-5M4600D Hanwha Vision 4.6mm PNM-9000VD Lens Module
(Click to see larger image and other views)

SLA-5M4600D Hanwha Vision 4.6mm PNM-9000VD Lens Module	SLA-5M4600D Hanwha Vision 4.6mm PNM-9000VD Lens Module
(Click to see larger image and other views)

There are currently no active sales or promotions related to this item.

SKU: SLA-5M4600D

Brand: Hanwha Vision

PNM-9000VD Lens module

Features:

0.16Lux@Color, B/W ? WDR 120dB, Day & Night (Electrical) ? 4.6mm fixed lens

More details...

There are currently no active sales or promotions related to this item.

MPN: SLA-5M4600D
EAN: 8801089173454

MSRP Price: $250.00

Web Price: $250.00

Quantity:

Add to List

Already a DWG Dealer? - Sign In to view pricing.

Product Details

Specifications

Video

Imaging Device - 1/1.8" 5MP CMOS
Effective Pixels - 2616 (H) x 1976 (V)
Min. Illumination - Color : 0.16Lux(F1.6, 1/30sec, 30IRE) B/W : 0.16Lux(F1.6, 1/30sec, 30IRE)

Lens

Focal Length (Zoom Ratio) - 4.6mm fixed focal
Max. Aperture Ratio - F1.6
Angular Field of View - H: 77.9°, V: 57.9°, D: 98.7°
Lens Type - Fixed Focal

Pan / Tilt / Rotate

Pan / Tilt / Rotate Range - -90°~+90° / +36~+73° / -180°~+180°

Operational

Wide Dynamic Range - 120dB
Day & Night - Auto(Elctrical)

Mechanical

Color/ Material - Black / Plastic
Product dimensions / weight - Ø35.5x35.9mm(1.40x1.41") / 35g(0.08 lb)

SLA-5M4600D Specifications PDF
