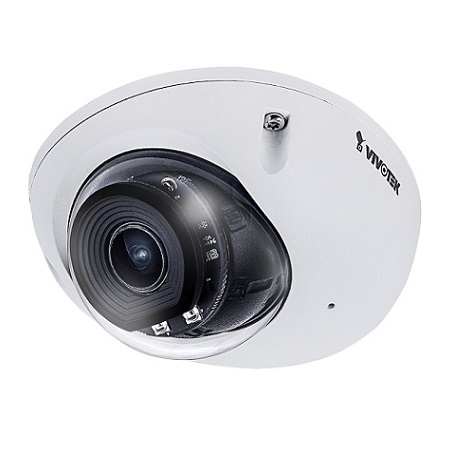

MD9561-HF2 Vivotek 2.8mm 60FPS @ 1080p Outdoor IR Day/Night WDR Dome IP Security Camera PoE

Specifications

Model - MD9561-H(2.8mm))

System Information

• CPU - Multimedia SoC (System-on-Chip)
• Flash - 256MB
• RAM - 512MB

Camera Features

• Image Sensor - 1/2.8" Progressive CMOS
• Max. Resolution - 1920x1080 (2MP)
• Lens Type - Fixed Focal
• Focal Length - MD9561-H(2.8mm): f = 2.8 mm
• Aperture - MD9561-H(2.8mm): F1.8
• Iris type - Fixed-iris
• Field of View - 110° (Horizontal), 63° (Vertical), 129° (Diagonal)
• Shutter Time - 1/5 sec. to 1/32,000 sec.
• WDR Technology - WDR Pro
• Day/Night - Yes
• Removable IR-cut filter - Yes
• IR Illuminators - Built-in IR illuminators, effective up to 20 meters with Smart IR, IR LED*2
• Minimum Illumination - 0.07 Lux @ F1.8 (Color), 0.01 Lux @ F1.8 (B/W), 0 Lux with IR illumination on
• Pan Range - ±30°
• Tilt Range - 90°
• Rotation Range - ±180°
• Pan/Tilt/Zoom Functionalities - ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• On-board Storage - Slot type: MicroSD/SDHC/SDXC card slot Seamless Recording

Video

• Compression - H.265, H264, MJPEG
• Maximum Frame Rate - 60 fps @ 1920x1080
• Maximum Streams - 4 simultaneous streams
• S/N Ratio - 60 dB
• Dynamic Range - 120 dB
• Video Streaming - Adjustable resolution, quality and bitrate, Smart Stream III
• Image Settings - Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, 3DNR, video rotation, defog

Audio

• Audio Capability - One-way Audio
Compression - G.711, G.726
• Interface - Built-in microphone, External line input
• Effective Range - 5 meters

Network

• Users - Live viewing for up to 10 clients
• Protocols - 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
• Interface - 10Base-T/100 BaseTX Ethernet (M12, Female, 4pin D-coded)
• ONVIF - Supported, specification available at www.onvif.org

Solution Integration

• Video Motion Detection - Five-window video motion detection
• VADP Package - Trend Micro IoT Security, Stratocast

Alarm and Event

• Alarm Triggers - Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, SD card life expectancy, cybersecurity events (brute force attack event, cyberattack event, quarantine event)
• Alarm Events - Event notification via digital output, email, HTTP, FTP, NAS server, SD card File upload via email, HTTP, FTP, NAS server, SD card

General

• Connectors - M12 for Network/PoE connection*1, Audio input*1, Digital input*1 (30V, 1A) Digital output*1 (12V, 50mA)
• LED Indicator - System power and status indicator
• Power Input - IEEE 802.3af PoE Class 2
• Power Consumption - Max. 6 W (IR on), Max. 3.3 W (IR off)
• Dimensions - 98 x 54 x 110.8 mm
• Weight - 400 g
• Casing - IP66, IP67, IK10, NEMA 4X
• Safety Certifications - CE, LVD, FCC Class B, VCCI, C-Tick, UL, NEMA 4X, EN50155 2017 OT1/ST1, IEC60571, EN61373, EN50121-3-2, EN50121-4, EN50132-7, EN45545 HL1, IEC62236-3-2, IEC62236-3-2, EN60068-2-1, EN60068-2-2, ECE R118, E-Mark
• Operating Temperature
  • Starting Temperature - -40°C ~ 55°C (-40°F~ 131°F)
  • Working Temperature - -40°C ~ 60°C (-40°F~ 140°F) (IR off), 40°C ~ 55°C (-40°F~ 131°F) (IR on)
  • Maximum (intermittent) - 70°C (158 °F)
• Humidity - 98%
• Warranty - 36 months

System Requirements

• Operating System - Microsoft Windows 8/7, Mac 10.12 (Chrome only)
• Web Browser - Chrome 58.0 or above, Internet Explorer 10/11
• Other Players - VLC: 1.1.11 or above QuickTime: 7 or above

Included Accessories

• Others - Quick installation guide, screwdriver, alignment sticker, desiccant bag
