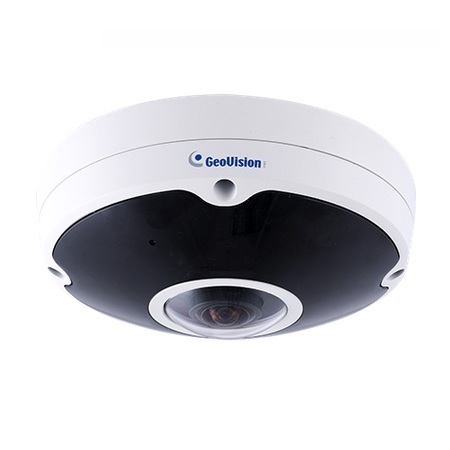

[DISCONTINUED] GV-FER12700 Geovision 1.2mm 20FPS @ 12MP Outdoor IR Day/Night WDR Fisheye IP Security Camera 12VDC/PoE

GV‐FER12700 is a 12 MP outdoor fisheye camera allowing you to monitor all angles of a location and can be installed to the ceiling and the wall. GV‐FER12700 supports H.265 video codec to achieve better compression ratio while maintaining high video quality at reduced network bandwidths. Equipped with automatic IR‐cut filter and IR LEDs, GV‐FER12700 is capable of day and night surveillance.

Specifications

System Requirements

• CPU - Intel Core i5‐4670, 3.40 GHz
• Memory - DDR3 8 GB RAM
• On Board Graphics - Intel HD Graphics 4600 (Version of driver from year 2014 or later required)

Camera

• Image Sensor - 1/1.7" progressive scan CMOS
• Picture Elements - 4000 (H) x 3000 (V)
• Minimum Illumination - Color - 0.1 Lux, B/W - 0.05 Lux, IR On - 0 Lux
• Shutter Speed - Automatic, Manual (1/5 ~ 1/16000 sec)
• White Balance - Automatic, Manual (2800K ~ 8500K)
• Gain Control - Automatic
• S/N Ratio - 52 dB
• WDR - Yes
• Dynamic Range - Up to 72 dB

Optics Lens

• Megapixel - Yes
• Day/Night - Yes (with removable IR‐cut filter)
• Lens Type - Fixed
• Focal Length - 1.2 mm
• Maximum Aperture - F/2.2
• Mount - M12
• Image Format - 1/1.7™
• Horizontal FOV - 180°
• Operation - Focus - Fixed, Zoom - Fixed, Iris - Fixed
• IR LED Quantity - 6 IR LEDs
• Max. IR Distance - 30 m (100 ft)

Operation

• Video Compression - H.265, H.264, MJPEG
• Video Streaming - Stream 1 from H.265 or H.264, Stream 2 from H.265, H.264 or MJPEG, Stream 3 from H.265, H.264 or MJPEG
• Frame Rate - 25/30 fps at 4000 x 3000 or 3160 x 3000 (50/60 Hz) *The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes).
• Image Setting - Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker‐less, Image Orientation, Shutter Speed, D/N Sensitivity, Backlight Compensation, WDR, Defog, Low Lux Enhancement, Denoise, Metering
• Audio Compression - G.711
• Audio Support - Two‐way Audio (external speaker required)
• Sensor Input - 1 input (Dry Contact)
• Sensor Output - 1 digital output (200mA 5V DC)

Video Resolution

• Main Stream - 4:3 - 4000 x 3000 (Default), 20:19 - 3160 x 3000
• Sub Stream - 4:3 - 1024 x 768 (Default), 640 x 480, 20:19 - 960 x 912, 640 x 608
• Third Stream (Closed by Default) - 4:3 - 640 x 480, 20:19 - 640 x 608

Network

• Interface - 10/100/1000 Ethernet
• Protocol - DHCP, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IPv4, IPv6, Multicast, NTP, ONVIF (Profile S), QoS (DSCP), RTCP, RTSP, SNMP, SMTP, SSL, TCP/IP, UDP, UPnP, 3GPP/ISMA
• Wireless LAN - IEEE 802.11 b/g/n
• Antenna Type - External
• Security - WEP, WPA‐PSK(TKIP), WPA‐PSK(AES), WPA2‐PSK(TKIP), WPA2‐PSK(AES)
• Security Feature - No default ID and Password, 802.1x authentication, HTTPS with a SSL certificate stored in the camera, 256‐bit AES encryption (requires working with GV‐VMS V18.1 or later)

Mechanical

• Temperature Detector - Yes
• Connectors
  • Power - 2‐pin terminal block (DC 12V, 3.5A), PoE
  • Ethernet - RJ‐45
  • Audio - 1 In (Built‐in or external microphone), 1 Out (Stereo phone jack, 3.5 mm / 0.14")
  • Digital - I/O 3‐pin terminal block
  • Auto Iris - None
  • Local Storage - Micro SD card slot (SD/SDHC/SDXC/UHS‐I, Class 10) *UHS‐II card type is not supported.
  • USB - GV‐WiFi Adapter or USB hard drive

General

• Operating Temperature
  • Start‐up - ‐20°C ~ 50°C (‐4°F ~ 122°F)
  • Operation - ‐30°C ~ 50°C (‐22°F ~ 122°F)
• Humidity - 10% to 90% (no condensation)
• Power Source - 12V DC / PoE+ (IEEE 802.3at)
• Max. Power Consumption - 17 W
• Dimension - Ø 160.59 x 59.40 mm m (Ø 6.22" x 2.33")
• Weight - 700 g (1.54 lb)
• Ingress Protection - IP67
• Vandal Resistance - IK10+ for metal casing
• Regulatory - CE, FCC, LVD, RoHS, TAICS (IoT Cyber Security) compliant

Power over Ethernet

• PoE Standard - PoE+ (IEEE 802.3at Class 4 Power over Ethernet / PD)
• PoE Power Supply Type - End‐Span and Mid‐Span
• PoE Power Output - Per Port 48V DC, 600mA. Max. 30 watts

Web Interface

• Installation Management - Web‐based configuration
• Maintenance - Firmware upgrade through Web Browser or Utility
• Access from Web Browser - Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Text Overlay, Digital PTZ
• Language - Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian / Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish

Applications

• Software Supported - GV‐DVR / NVR (V8.8.0), GV‐VMS (V17.3.0), GV‐Control Center (V3.6.0), GV‐Edge Recording Manager Windows Version (V1.4.0), GV‐Recording Server / Video Gateway (V1.4.2), GV‐Redundant / Failover Server (V1.1.0.0), GV‐Mobile Server (V1.5.0.0)
• Smart Device Access - GV‐Eye for iOS and Android
• Live Viewing - Browser (IE, Chrome, Firefox, Safari), Mobile App
• CMS Server support - GV‐Control Center, GV‐Center V2, GV‐Vital Sign Monitor
