DWC-EXTIR100 Digital Watchdog Outdoor Infra-red Iluminator for Panoramic Bullet Camera - Up to 100ft Max Distance 12VDC/24VAC

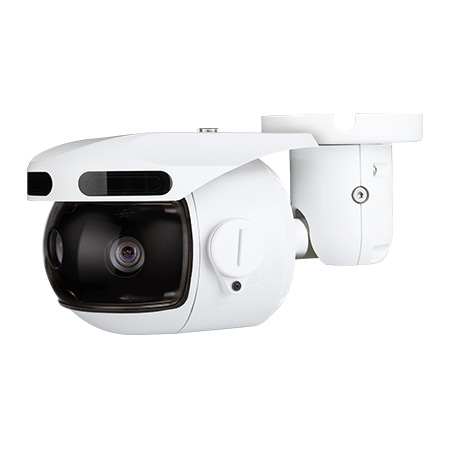

The DWC-EXTIR100 is a weather and tamper resistant infra-red (IR) illuminator for DW's MEGApix PANO three-sensor panoramic bullet cameras. The accessory allows the camera to deliver high-quality monochromatic images in extreme low light environments up to 100ft (30m).

Specifications


• High power LED - High power LED X 6ea ( =2 X 3 )
• Horizontal angle - 180°
• IR distance - 100ft
• IR CONT' synchronization - EXTERNAL INPUT_HIGH => LED ON, EXTERNAL INPUT_LOW => LED OFF
• Supported cameras - DWC-PB6M4T - MEGApix PANO 6MP IP bullet camera
• Operating humidity - Less than 90% (non-condensing)
• Power consumption - DC12V : Max 11.0W, AC24V : Max 11.0W (Note: external power supply needed)
• Operating temperature - -40°F ~ 122°F (-40°C ~ 50°C)
• IP rating - IP66 certified weather and tamper resistant
• Other certifications - FCC, CE, ROHS
• Power requirements - DC12V/AC24V dual voltage
• Dimensions - 5.06" x 6.28" x 1.45" (128.6 x 159.6 x 39mm

DWC-EXTIR100 Specifications PDF
