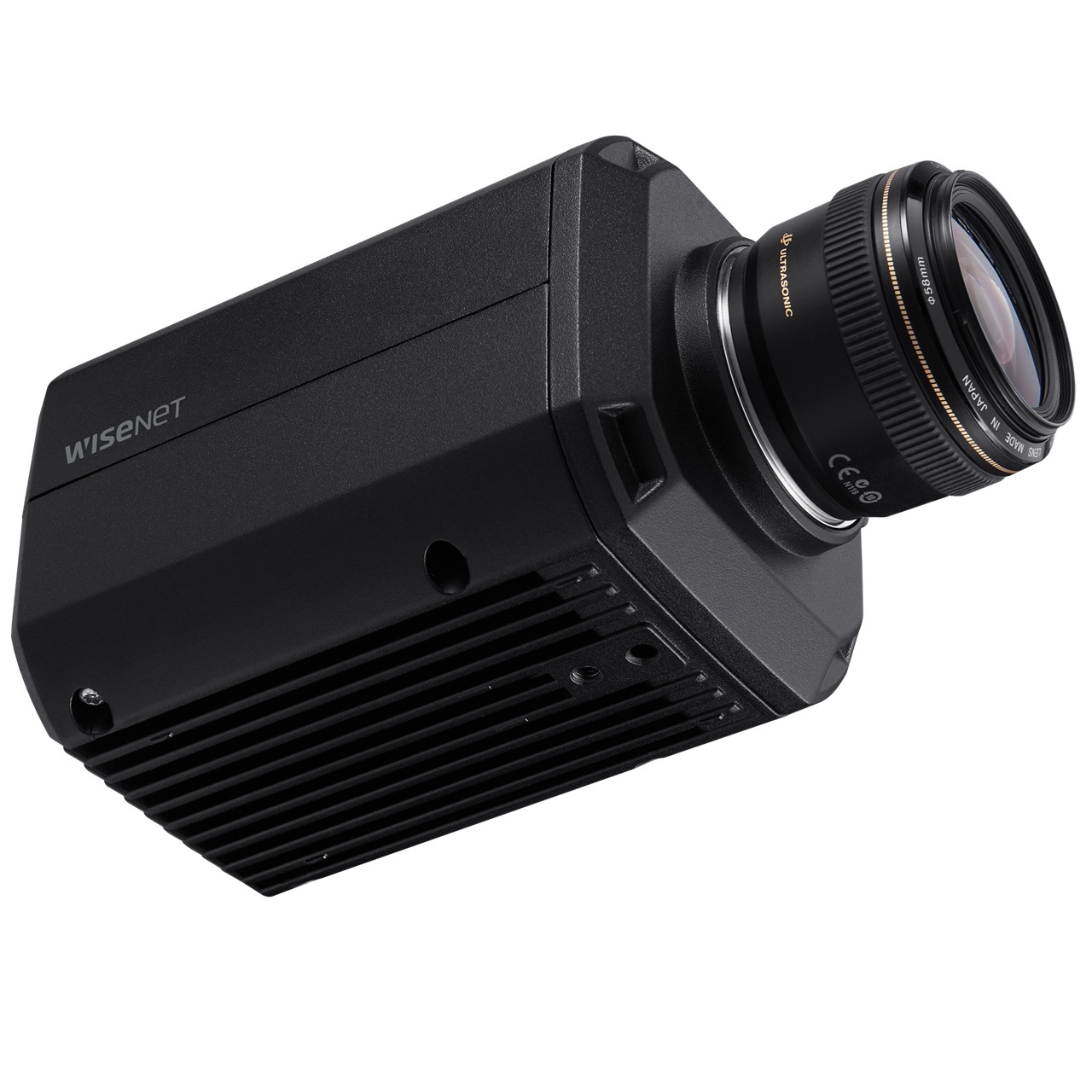

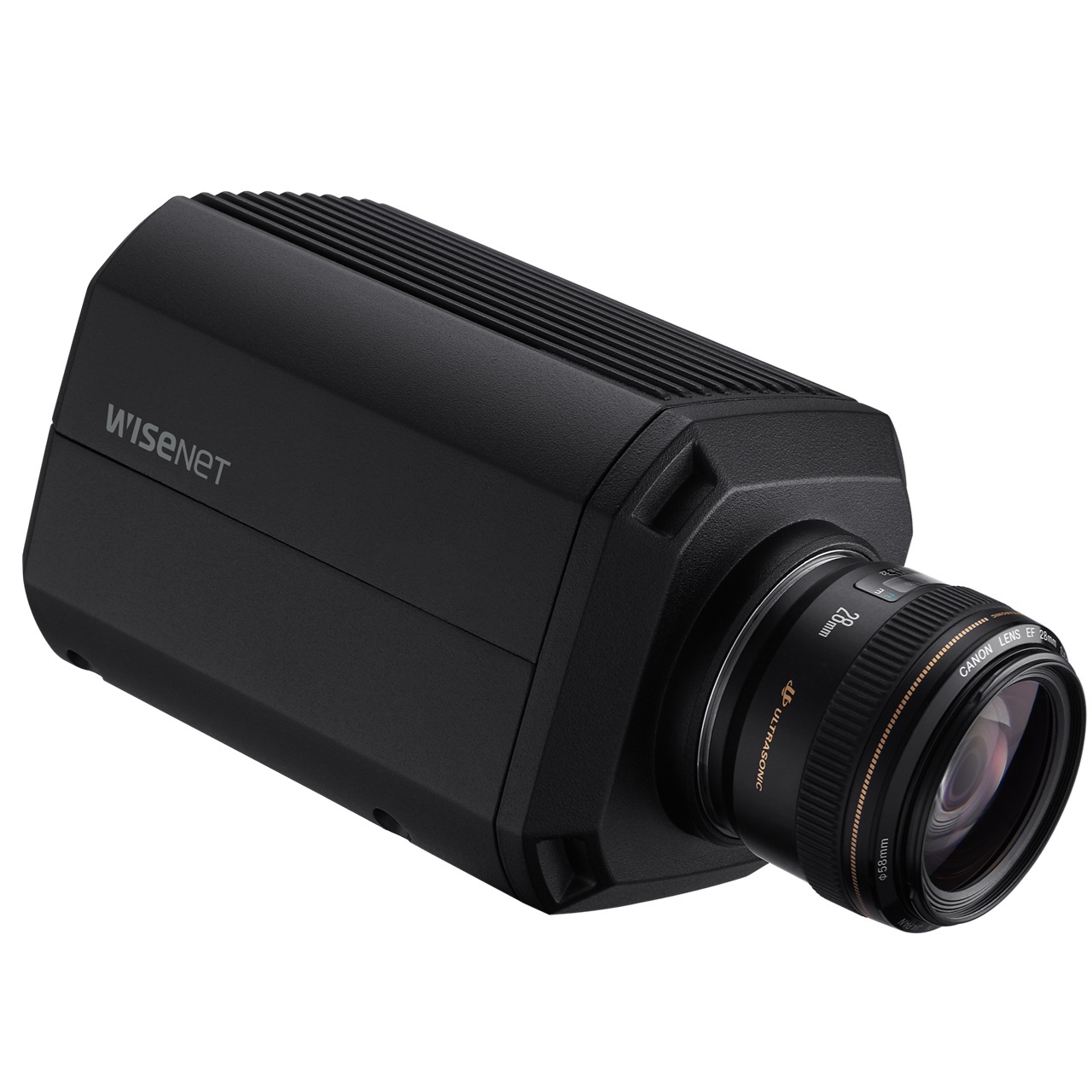

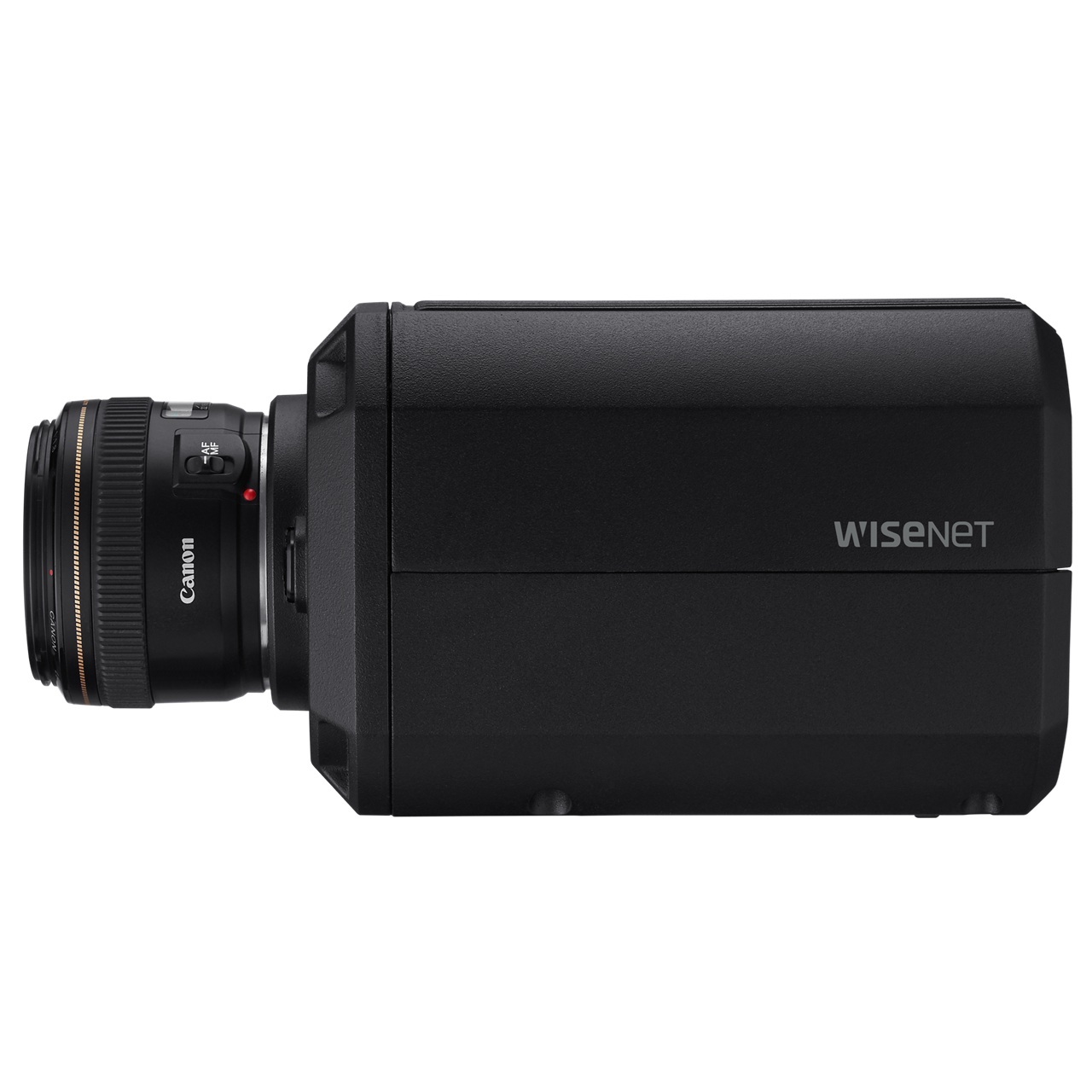

TNB-9000 Hanwha Vision 43.3mm Varifocal 30FPS @ 1080p Outdoor IR Day/Night WDR Box IP Security Camera 12VDC/POE

Specifications

Video

• Imaging Device - Size: Diagonal 43.3mm Full-frame Type: CMOS
• Resolution - 7680x4320, 7360x4128, 6016x3384, 6016x4008, 5472x3648, 4768x3184, 4608x2592, 3840x2160, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
• Max. Framerate - H.265/H.264: 32MP(8K) @ Max. 15fps (Mode 0) 24MP @ Max. 20fps (Mode 1) 15MP @ Max. 30fps (Mode 2) 8MP(4K) @ Max. 60fps (Mode 3)
• Min. Illumination - Color : 0.015Lux(F1.4, 1/30sec) B/W : 0.0015Lux(F1.4, 1/30sec)
• Video Out - HDMI: 1080p@30/25fps (60/50Hz)

Lens

• Focus Control - Simple focus
• Lens Type - Canon EF mount Lens

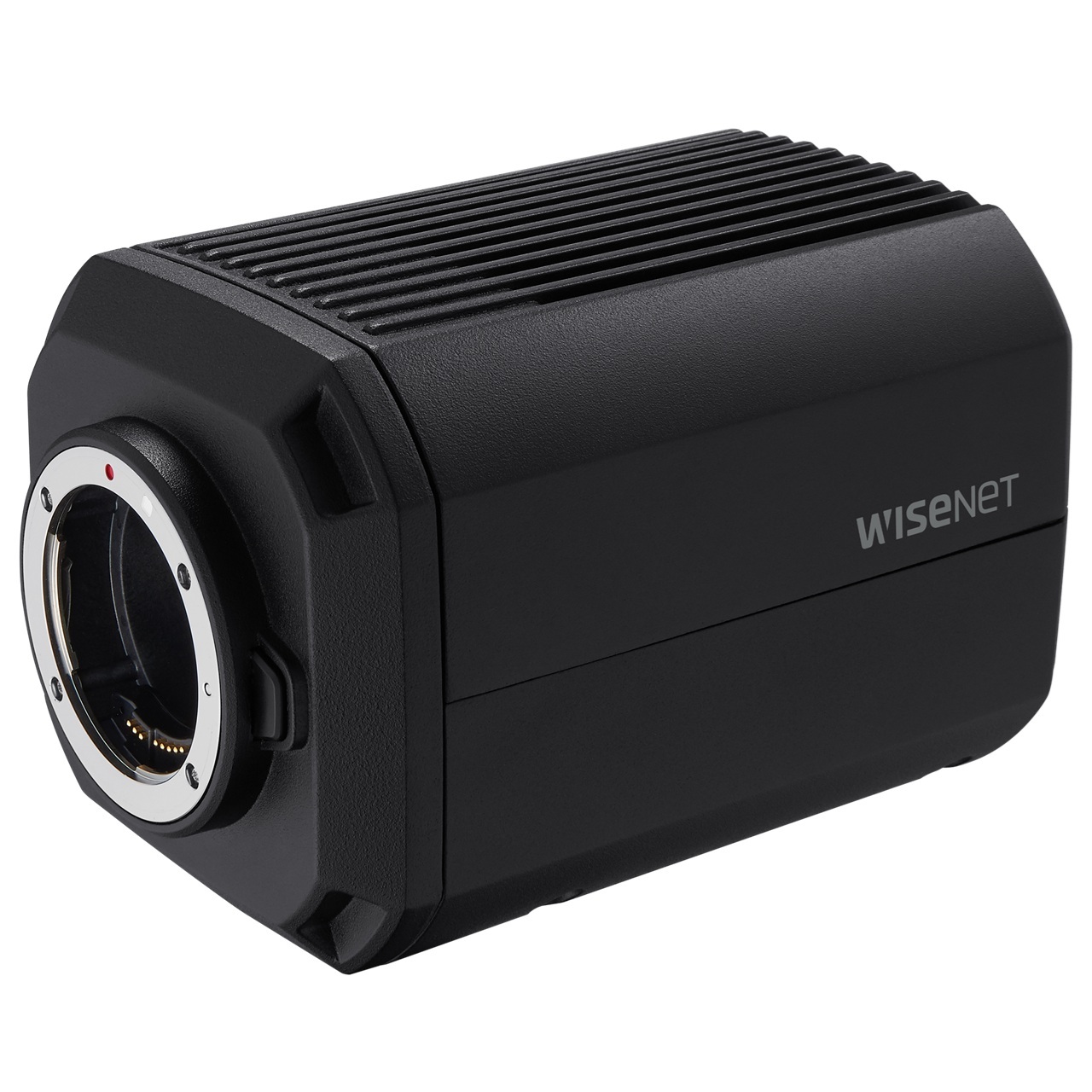

• Mount Type - Canon EF mount

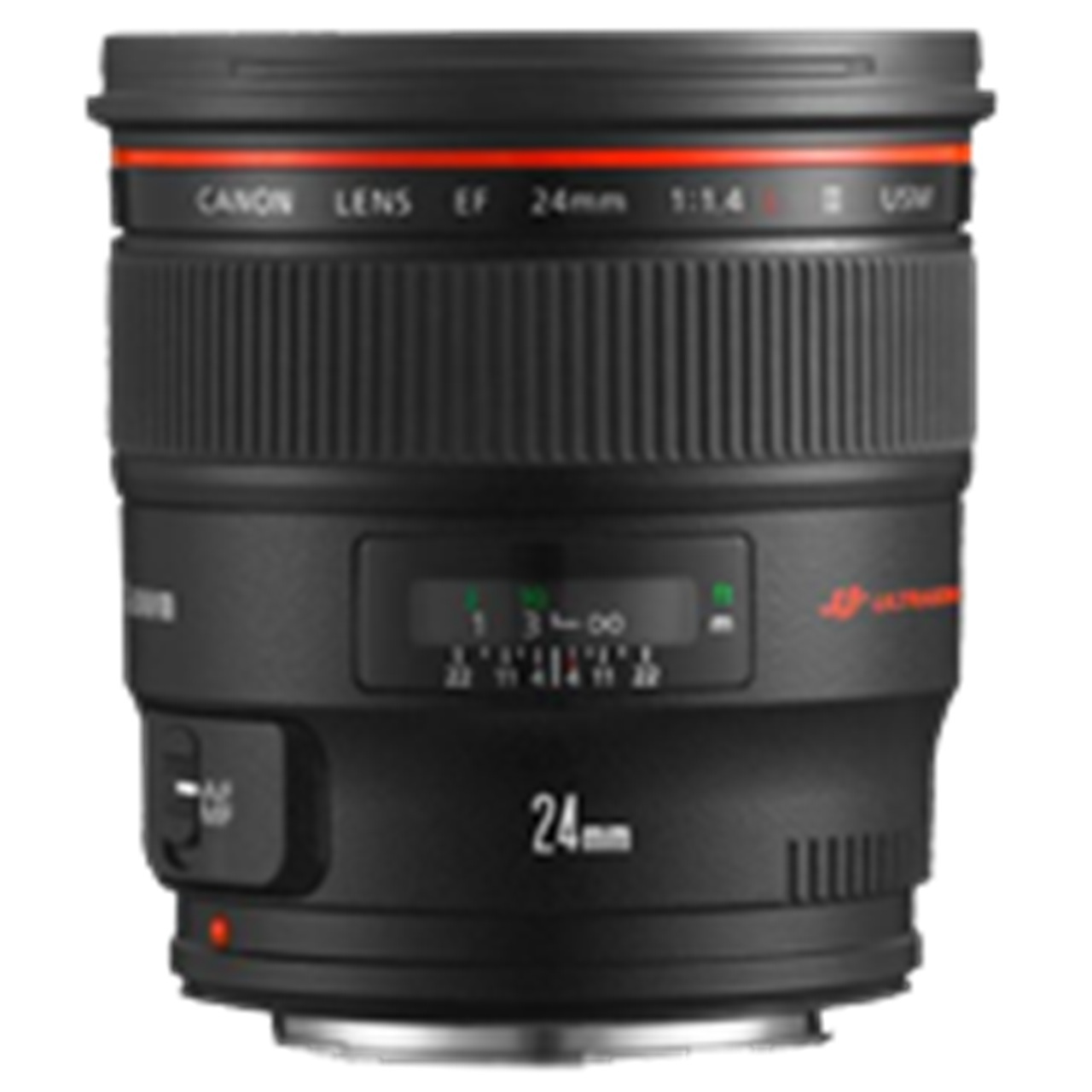

• Optional Lens - Canon 24mm f1.4L, Auto-Iris (EF 24mm f/1.4L II USM) Canon 35mm f1.4L, Auto-Iris (EF 35mm f/1.4L II USM) Canon 50mm f1.4, Auto-Iris (EF 50mm f/1.4 USM) Canon 85mm f1.2L, Auto-Iris (EF 85mm f/1.2L II USM) Canon 100mm f2.0, Auto-Iris (EF 100mm f/2 USM) Canon 70-200mm f2.8L, Auto-Iris, Vari Focal (EF 70-200mm f/2.8L USM)

Operational

• Day & Night - Auto(ICR)
• Backlight Compensation - BLC, DWDR
• Digital Noise Reduction - SSNRâ…¤
• Motion Detection - Quantity: 8ea, Shape : 8point polygonal zones
• Privacy Masking - Quantity: 6ea, Shape : Rectangular Zones, Color/Option : Grey/Black/White
• Gain Control - Low / Middle / High
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• Electronic Shutter - Mode : Minimum / Maximum / Anti flicker, Speed range : (1/5 ~ 1/12,000sec)
• Digital PTZ - Support
• Alarm Interface - In/Out : Input 1ea, Output 1ea
• Alarm Triggers - Analytics, Network disconnect, Alarm input
• Alarm Triggers - Analytics, Network disconnect, Alarm input
• Alarm Events When Alarm Trigger Occurred
  • File upload(image): - e-mail/FTP
  • Notification: - e-mail
  • Recording: - SD/SDHC/SDXC or NAS recording at event triggers, Alarm output
  • Handover: - PTZ present
• Audio In - Selectable(mic in/line in)
• Audio Out - Line out

Network

• Ethernet - Metal shielded RJ-45(10/100/1000BASE-T), SFP
• Video Compression - H.265/H.264: Main/High, MJPEG
• Audio Compression - G.711 u-law /G.726 selectable,G.726(ADPCM) 8kHz,G.711 8kHz, G.726: 16kbps,24kbps,32kbps,40kbps, AAC-LC: 48kbps at 16kHz
• Smart Codec - Manual, WiseStream II
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast (6 users) / Multicast Support/ Multiple streaming(Up to 3 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
• Application Programming Interface - ONVIF S/T/G, Others: SUNAPI(HTTP API)

Security

• User authentication - Digest Authenticaton
• Network authentication - IEEE 802.1X(EAP-TLS, EAP-LEAP)
• Secure Communication - HTTPS
• Access Control - IP-based access control
• Data Protect - Encryption Credentials
• Audit - Access / System / Event Log management
• Device ID - Device certificate(Hanwha Vision Root CA)

General

• Webpage Language - English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Memory - 8GB RAM, Flash: 512MB
• Edge Storage - Micro SD/SDHC/SDXC : Max 256GB x 1 Slot

Environmental & Electrical

• Operating Temperature / Humidity - 0°C ~ +45°C(32°F ~ +122°F) / 0~90% RH(non-condensing)
• Storage Temperature / Humidity - -40°C ~ +65°C(-40°F ~ +140°F) / 0~90% RH(non-condensing)
• Certification - Safety(UL 60950-1), EMC(FCC, CE, KC) EN 50130-4, EN 55032 Class A, EN 61000-6-3, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, FCC Part 15 Subpart B Class A, IC ICES-003 Class A
• Input Voltage - HPoE(IEEE802.3bt, Class5), 12VDC
• Power Consumption - PoE: Max 30W, typical 20W 12VDC: Max 26W, typical 18W

Mechanical

• Color - Black
• Material - Aluminum
• Product Dimensions - 120(W)x118.1(H)x179(D)mm
• Product Weight - 2,100g(4.55lb)
