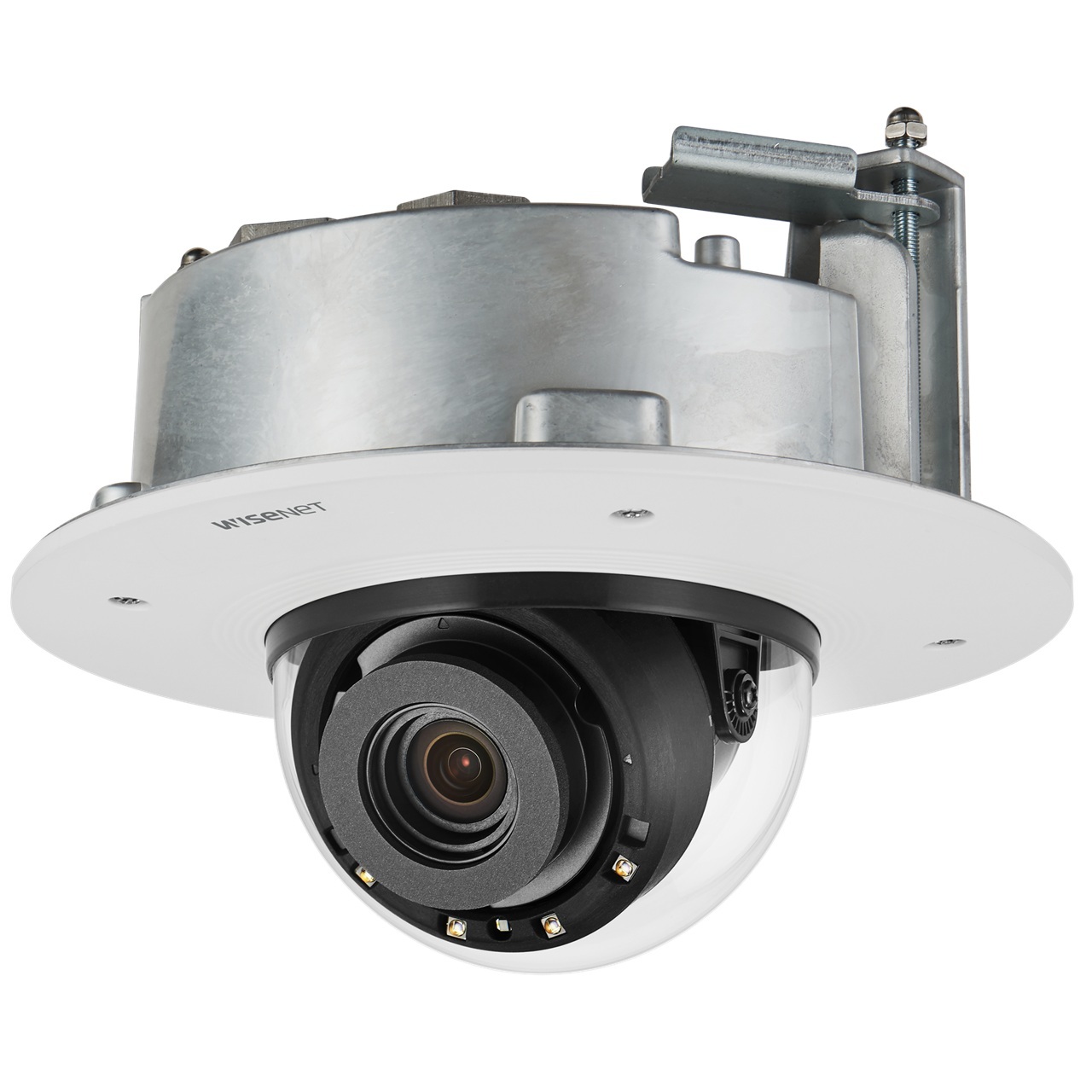

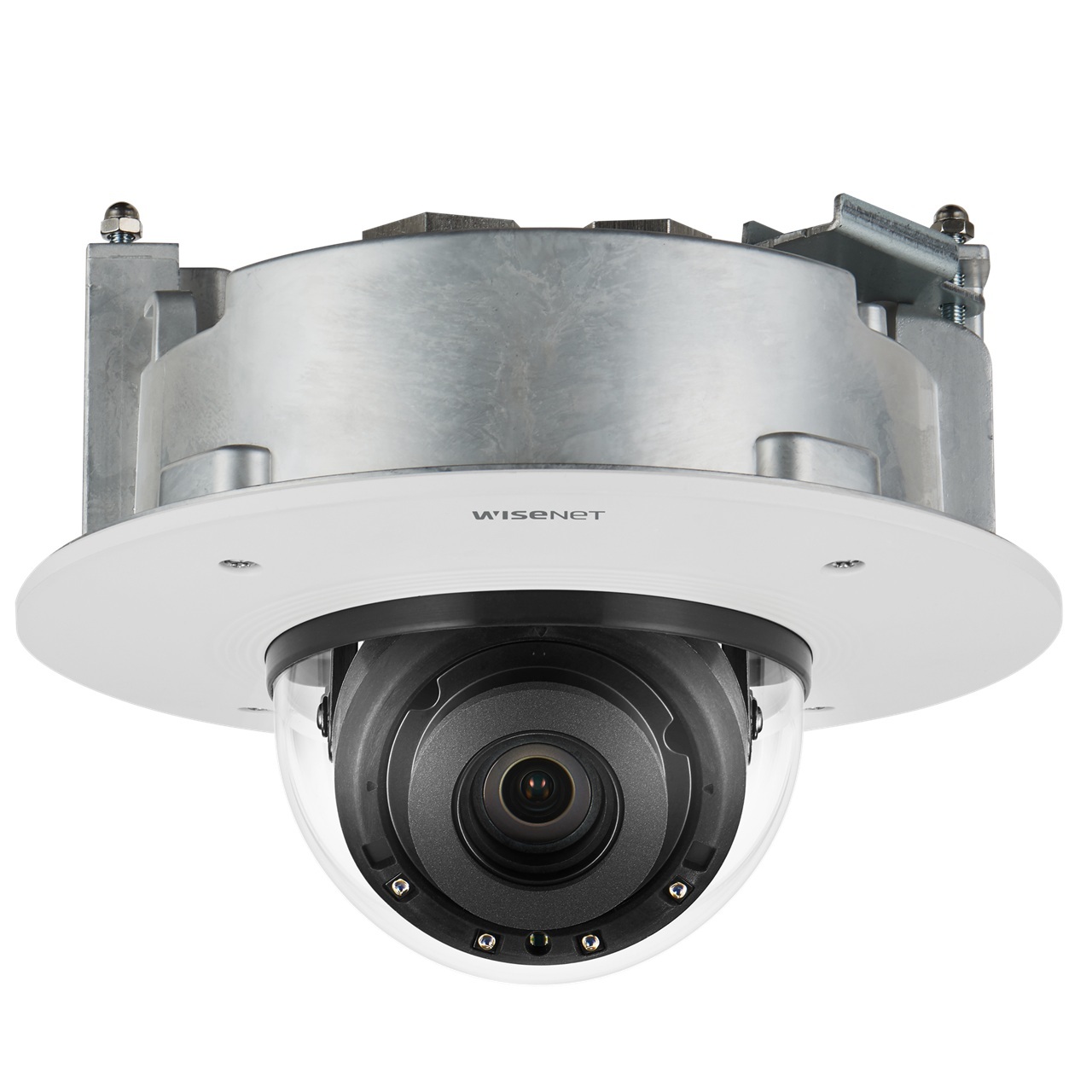

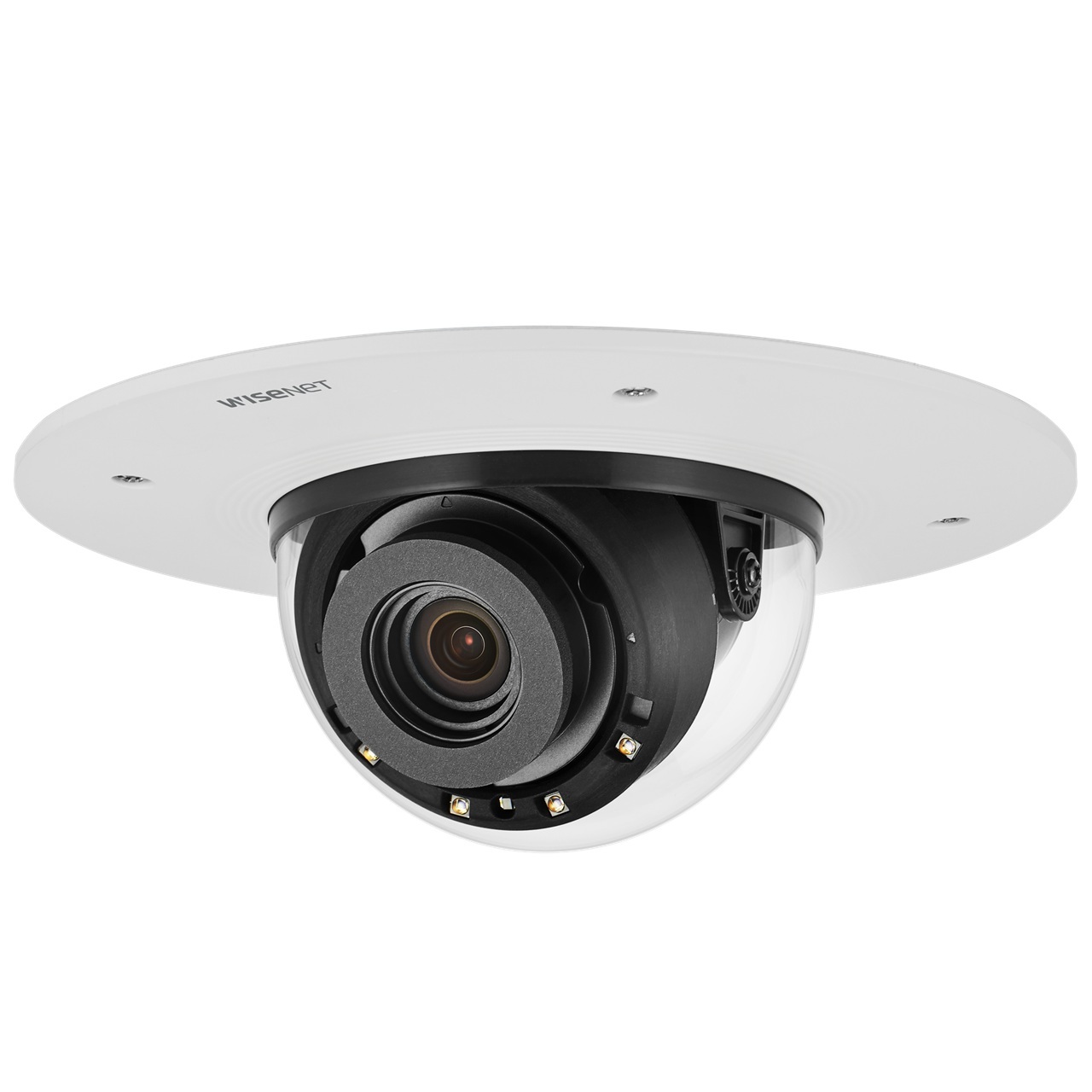

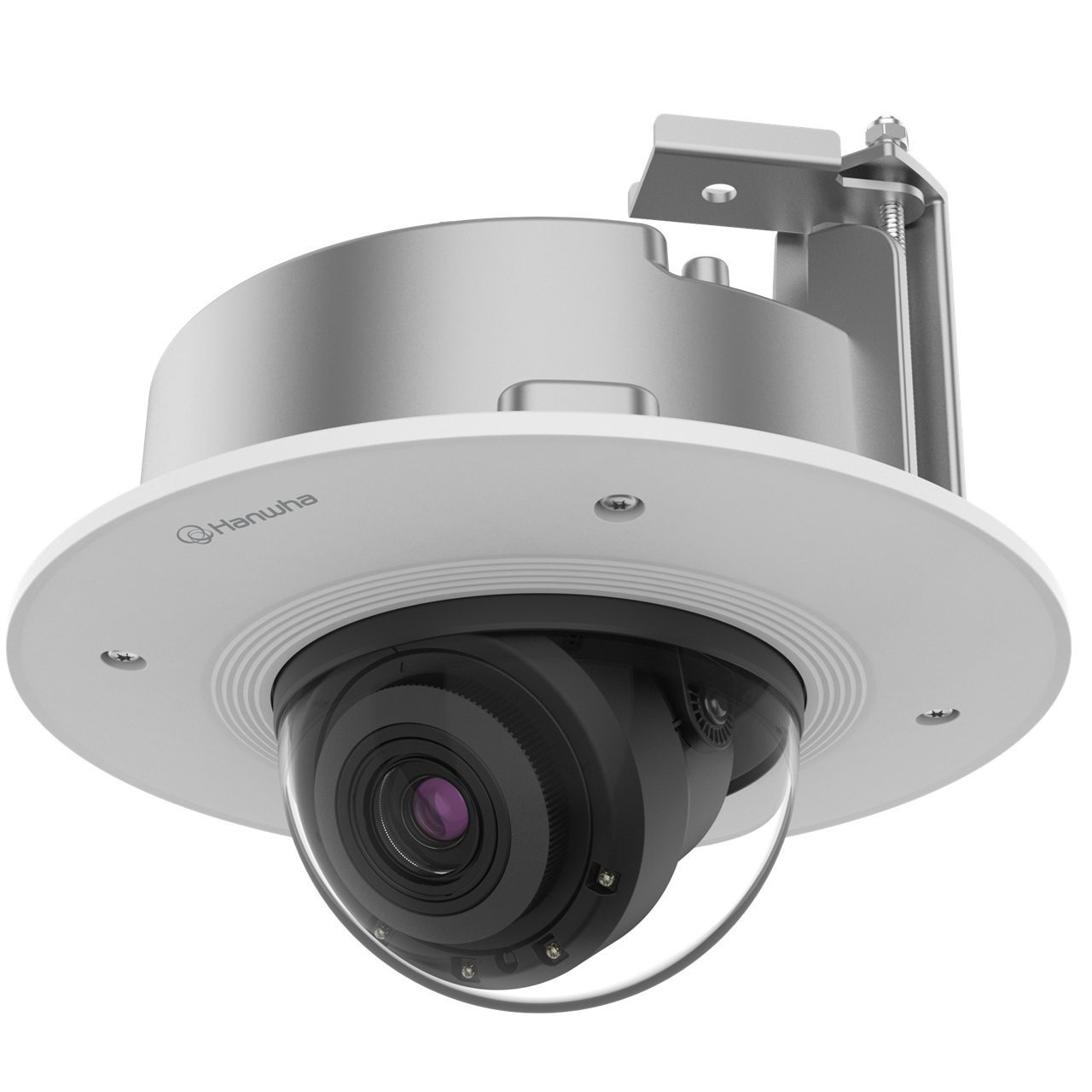

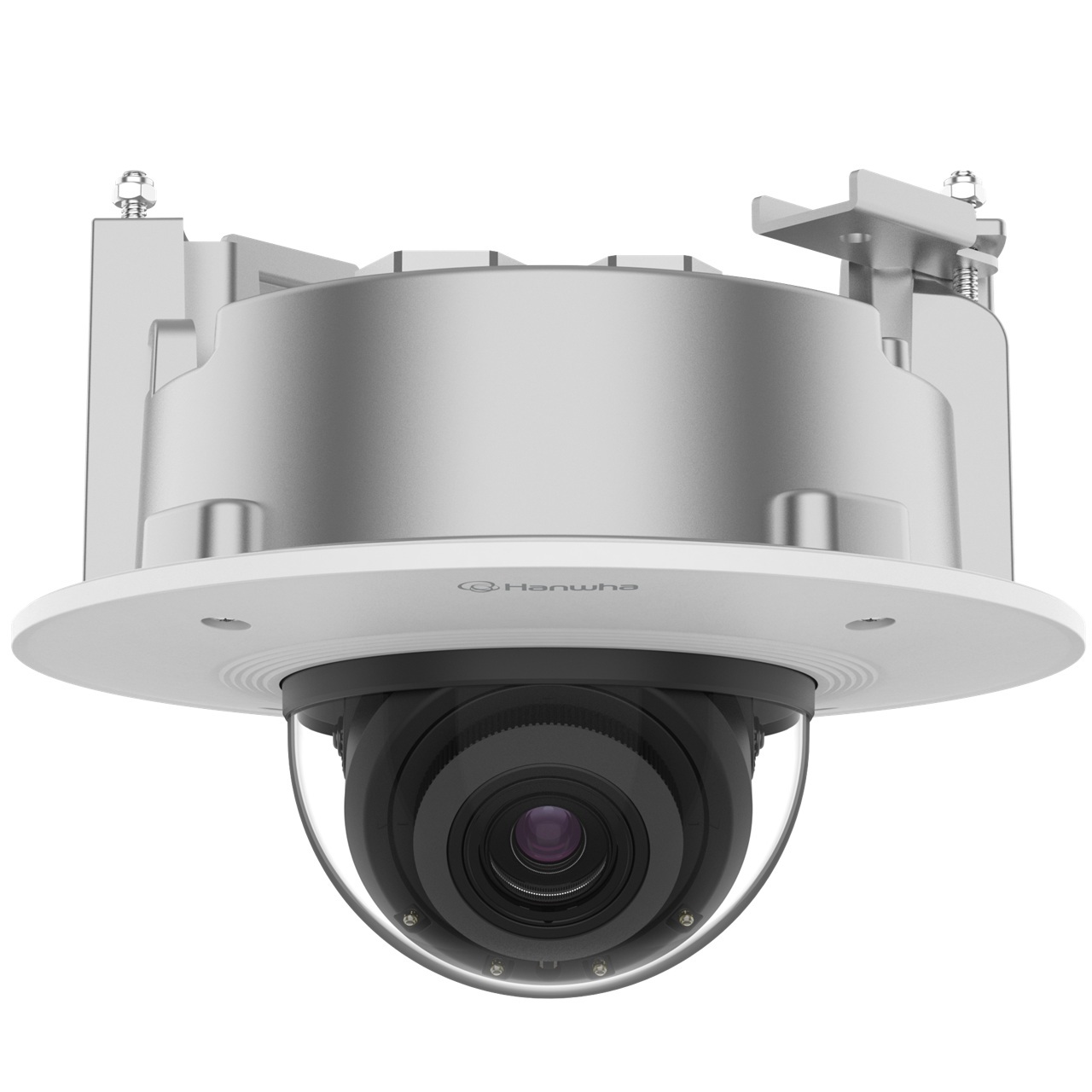

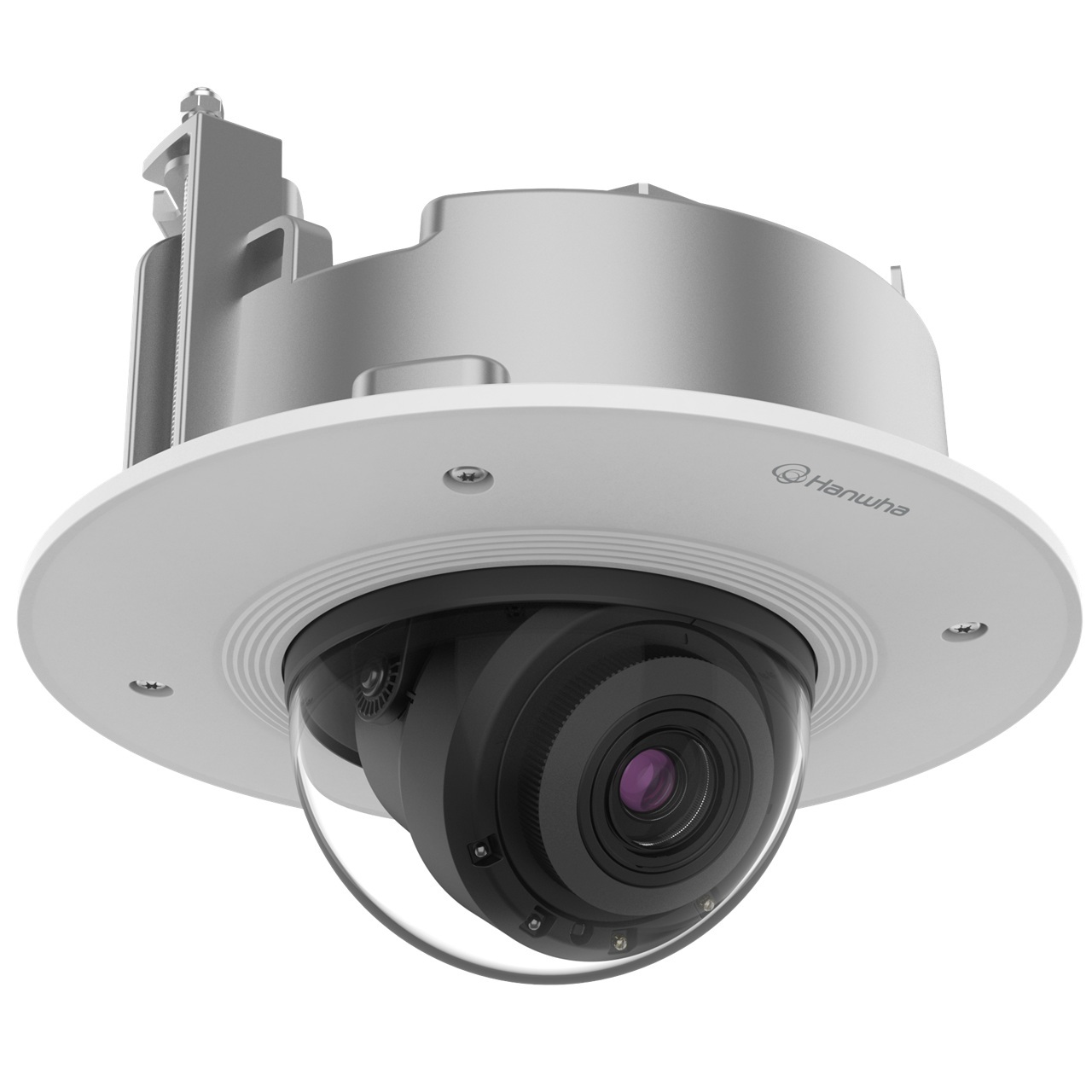

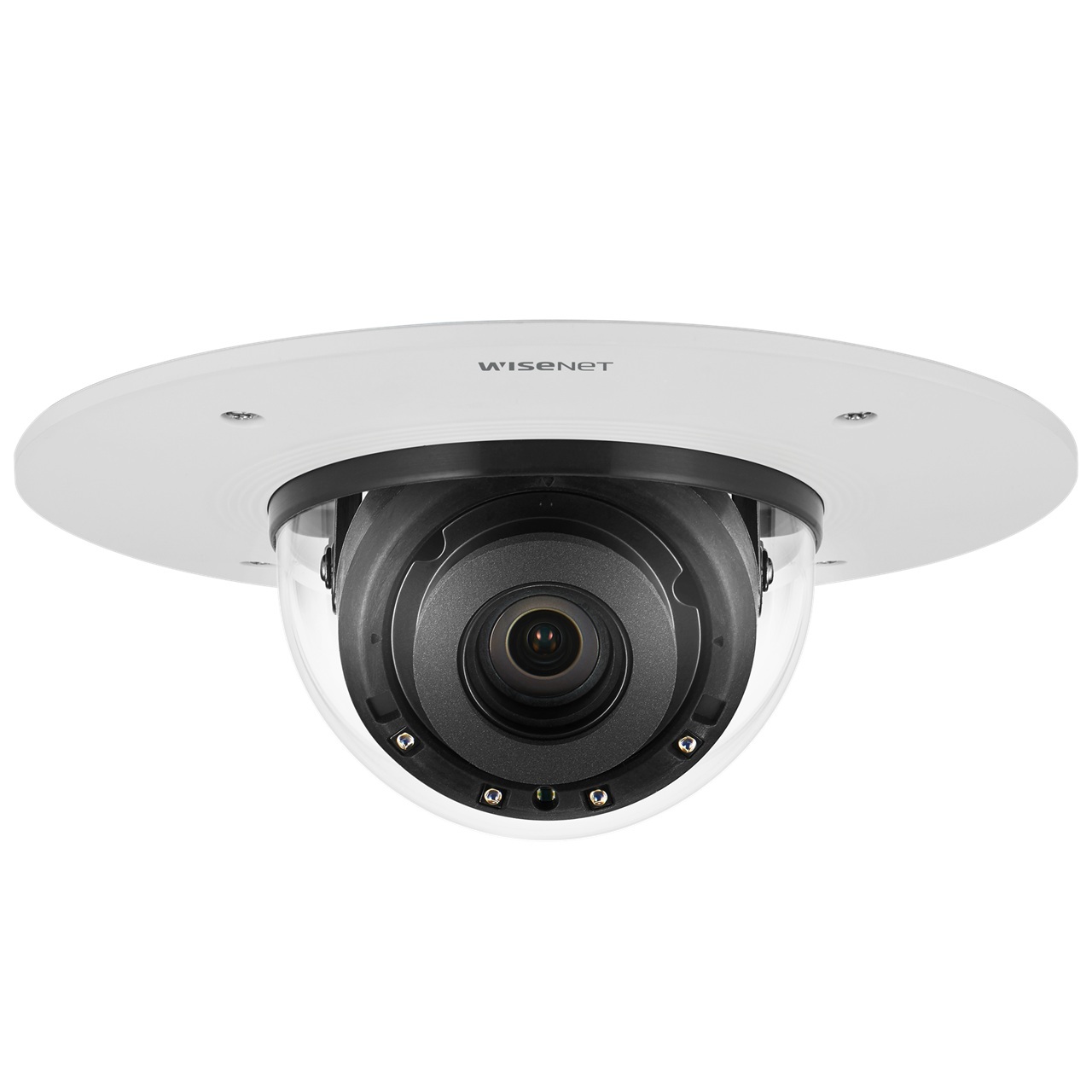

PND-A9081RF Hanwha Vision Wisenet P Series 4.5~10mm Motorized 30FPS @ 1080p Outdoor IR Day/Night WDR Dome IP Security Camera 12VDC/PoE

Introduction

P series AI cameras

Hanwha Vision P series cameras feature edge-based AI analytics for intelligent object detection and attribute extraction. Reduce false alarms and increase operational efficiency during forensic review with this versatile line of cameras.

Specifications

Video

• Imaging Device - 1/1.8" CMOS
• Resolution - 3840x2160, 3072x1728, 2592x1944, 2688x1520, 2560x1440, 2048x1536, 1920x1080, 1600x1200, 1280x1024,1280x960, 1280x720, 1024x768, 800 x 600, 800 x 448, 720 x 576, 720x480, 640x480, 640x360
• Max. Framerate - H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
• Min. Illumination - Color: 0.05Lux(F1.6, 1/30sec) BW: 0.005Lux(F1.6, 1/30sec), 0Lux(IR LED on)
• Video Out - CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation

Lens

• Focal Length (Zoom Ratio) - 4.5~10mm(2.2x) motorized varifocal
• Max. Aperture Ratio - F1.6(Wide)~F2.65(Tele)
• Angular Field of View - H:101.4°(Wide)~45.5°(Tele) / V:53.6°(Wide)~25.5°(Tele) / D:120.7°(Wide)~52.3°(Tele)
• Min. Object Distance - 0.5m(1.64ft)
• Focus Control - Simple focus
• Lens Type - P iris

Pan / Tilt / Rotate

• Pan/Tilt/Rotate Range - 0Ëš~360Ëš / -45Ëš~85Ëš / 0Ëš~355Ëš

Operational

• Camera Title - Displayed up to 85 characters
• Day & Night - Auto (ICR)
• Backlight Compensation - BLC, WDR, SSDR
• Digital Noise Reduction - WiseNR â…¡(using AI engine) SSNRâ…¤
• Digital Image Stabilization - Stabilization Support(built-in gyro sensor)
• Motion Detection - 8ea, polygonal zones
• Privacy Masking - 6ea, rectangle zones - Color: Gray/Black/White
• Gain Control - Low / Middle / High
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• LDC - Support
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker (1/5~1/12,000sec) Auto prefer shutter control based on AI engine
• Video Rotation - Flip, Mirror, Hallway view(90Ëš/270Ëš)
• Analytics - Classified object type: Person/Face/Vehicle/License plate Attributes: Person(Gender, Color and Bag), Face(Age, Gender, Mask and Glasses), Vehicle(Type: car/bus/truck/motorcycle/bicycle and Color) Support BestShot per object Analytics events based on AI engine - Object detection, Virtual line*(Crossing/Direction), Virtual area*(Loitering/Intrusion/Enter/Exit), Face mask detection, Social distancing detection, Slip&Fall detection Analytics events - Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear) Support WiseDetector for Adding custom objects *Some of the video analytics only works with people and vehicle detection
• Business Intelligence - People/Vehicle/Crowd counting, Queue management, Heatmap based on AI engine
• Alarm I/O - 2 configurable I/O ports, DC 12V output(Max. 50mA)
• Alarm Triggers - Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription
• Alarm Events - When alarm trigger occurred - File upload(image): e-mail/FTP - Notification: e-mail - Recording: SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover: PTZ preset, send message by HTTP/HTTPS/TCP - Audio clip playback - MQTT: publication
• Audio In - Selectable(mic in/line in)
• Audio Out - Line out
• Light Type - IR LED (850nm)
• IR Viewable Length - WiseIR 30m(98.42ft)

Network

• Ethernet - Metal shielded RJ-45(10/100/1000 BASE-T)
• Video Compression - H.265/H.264: Main/High, MJPEG
• Audio Compression - G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
• Smart Codec - Manual(5ea area), WiseStreamâ…¡, WiseStreamâ…¢(using AI engine)
• Video Quality Adjustment - H.264/H.265: Target bitrate level control MJPEG: Target bitrate level control
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(6 users) / Multicast Multiple streaming(Up to 6 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), MQTT
• Application Programming Interface - ONVIF Profile S/G/T/M SUNAPI(HTTP API) Wisenet open platform - WiseAI application included(Analytic based on AI, Business intelligence)

Security

• OS / Firmware Protect - Encrypted Firmware, Secure boot, Signed Firmware
• User authentication - Digest Authenticaton, Prevent brute-force attack
• Network authentication - IEEE 802.1X (EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
• Secure Communication - HTTPS, WSS (WebSocket Secure)
• Access Control - IP-based access control
• Data Protect - Encryption Credentials, Encrypt compress for live recording file
• Audit - Access / System / Event Log management
• Device ID - Device certificate (Hanwha Techwin Root CA)
• Secure Storage - SDcard partition encrypt

General

• Webpage Language - English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Edge Storage - Micro SD/SDHC/SDXC 2slots 512GB
• Memory - 4096MB RAM, 512MB Flash

Environmental & Electrical

• Operating Temperature / Humidity - -25°C ~ +50°C (-13°F ~ +122°F) / Less than 90% RH
• Storage Temperature / Humidity - -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
• Certification - IP52, IK10, Plenum rate
• Input Voltage - PoE+(IEEE802.3at), 12VDC
• Power Consumption - PoE+: Max 20.00W, typical 16.00W 12VDC: Max 17.70W, typical 14.00W

Mechanical

• Color / Material - White / Aluminum, Hard-coated dome bubble
• RAL Code - RAL9003
• Product Dimensions / Weight - Ø205x163mm(8.07x4.92"), Weight : 1.95Kg (4.30lb)

DORI (EN62676-4 Standard)

• Detect (25PPM/ 8PPF) - Wide: 62.2m(204.04ft) / Tele: 185.4m(608.31ft)
• Observe (63PPM/ 19PPF) - Wide: 24.9m(81.62ft) / Tele: 74.2m(243.32ft)
• Recognize (125PPM/ 38PPF) - Wide: 12.4m(40.81ft) / Tele: 37.1m(121.66ft)
• Identify (250PPM/ 76PPF) - Wide: 6.2m(20.40ft) / Tele: 18.5m(60.83ft)

Ver

• Ver - 2
