O2TML Speco Technologies 8" LCD Screen Temperature Reader with Face and Mask Recognition

Specification

Performance

• OS - Embedded Linux
• Storage - 8Gb DDR3 + 16Gb EMMC

Screen

• Display Screen - 8inch LCD screen; resolution: 1280x800; contrast: 500:1
• Brightness - 500 lux

Temperature Measurement

• Temperature Measuring Range - 0~50◦C (32◦~122◦F)
• Accuracy - ± 0.3◦C (0.5◦F)
• Measuring Distance - 0.3~0.5m (1ft~1.6ft)

Face Recognition

• Sensor - 1/2.7
• Lens - 2MP dual-lens, f=3.97mm @ F1.6
• WDR - 120db
• Height Range of Face Recognition - 1.2m-2.2m (3.9ft - 7.2ft) (the recommended installation height is 1.45m) (4.75ft)
• Face Recognition Distance - 0.3m-2m (1ft - 6.5ft)
• Recognition Mode - Face: 1 : N
• Recognition Duration - ≤ 0.5 s per person
• Face Capacity - 20,000
• Recognition Accuracy - 99.7%

Supplementary Light

• Fill-in Light - Soft white light, IR light
• White Light Distance - 1-3m (3.2ft - 10ft)

Smart Linkage

• Screen Wakeup - Yes
• Light Adjustment - Yes
• Snapshot - Yes

Audio

• Two-way Talk - Yes (noise reduction and echo cancellation)
• Audio Input - 1CH built-in MIC
• Audio Output - Built-in speaker

Interface

• Network Interface - 10/100Mbps self-adaptive Ethernet port x1
• Maximum simultaneous remote users - 10
• Alarm Input - 2 CH
• Alarm Output - 2 CH
• Wiegand Interface - Wiegand input/output (26/34)
• RS485 - RS485x1 (half duplex)
• Door Lock Output - Relay output, NO/NC (optional), delay setting supported
• SD Card Interface - 1 micro SD card slot, up to 128GB
• USB Interface - USB x1
• Anti-Tamper Interface - 1 button
• Exit Button - 1
• Reset Button - 1

Others

• Power - 12V @1A
• Power Management - Screen sleep, screen protection
• Power Consumption - <12W
• Weight - Approx. 1.2KG (2.6lbs)

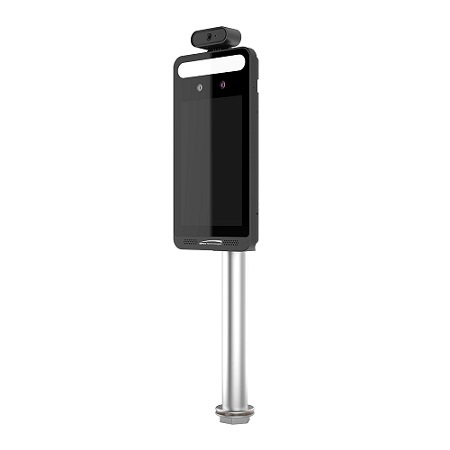

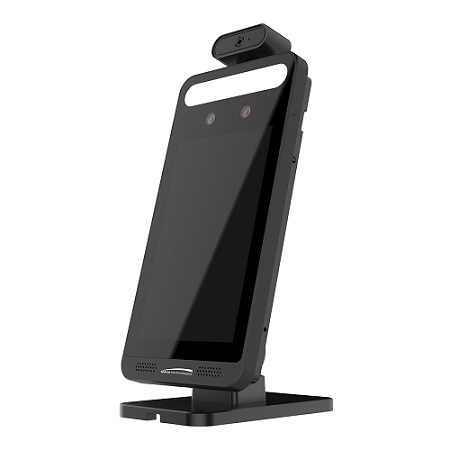

• Installation - Wall Mounting, Pole Mounting, Embedded Installation, Desktop
• Protection - IP66, Surge Protection and Voltage Transient Protection
• Working Environment - -20°C~60°C (-4°F~140°F) , <95% (non-condensing)
• Dimensions - 301.8mm x 138.6mm x 34.2mm, 11.8"(H) x 5.4"(W) x 1.3"(D)

O2TML Specifications PDF
