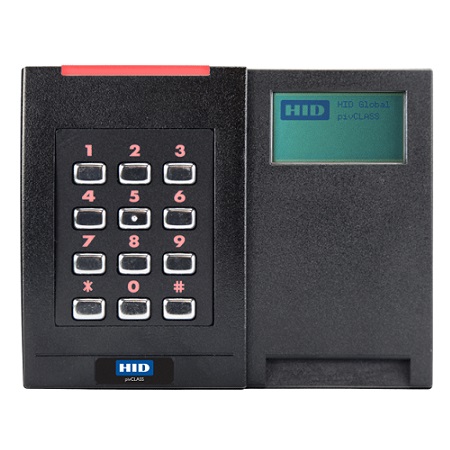

KT-PVC-2RDRBNDL Kantech Dual Interface pivCLASS Reader with LCD

Specifications

Model Name - RPKCL40

• Full Duplex (PAM) Base Part Number - 923PPR
• Half Duplex (OSDP) Base Part Number - 923PPP
• 13.56 MHz Card Compatibility - PKI-based FIPS-201 credentials including PIV, PIV-I, CIV, CAC, TWIC and FRACSecure Identity Object (SIO) on iCLASS Seos, iCLASS SE, MIFARE DESFire EV1 and MIFARE Classicstandard iCLASS Access Control ApplicationISO14443A (MIFARE) CSN
• 125 kHz Card Compatibility - HID Prox, AWID, EM4102 Prox
• System Requirements - Readers require an HID Global pivCLASS Authentication Module (M2000) or OSDP-compliant FICAM listed controller infrastructure to support FICAM compliance
• Typical Contactless Read Range1 - FIPS 201 type cards can be read using either the contact or contactless card interface (RKCL40)

Contactless InterfacePIV, PIV-I, CIV, CAC, TWIC and FRAC

• FIPS-201 type cards - 1.2" (3 cm)

13.56 MHz Single Technology ID-1 Cards – SIO Data Model

• iCLASS Seos - 1.6" (4 cm)
• iCLASS - 4.7" (12 cm)
• MIFARE DESFire EV1 - 1.6" (4 cm)
• MIFARE Classic - 4.3" (11 cm)

125 kHz Single Technology ID-1 Cards

• HID Prox / AWID - 2.8" (7 cm)
• EM4102 Prox - 3.1" (8 cm)
• Mounting - Double-gang size; designed to mount on double (preferable for stable wall mount) or single-gang switch box
• Color - Black
• Keypad - Yes (illuminated, 4 x 3)
• Dimensions - 4.8" x 6.1" x 1.2" (12.2 cm x 15.6 cm x 3.0 cm)
• Product Weight (Pigtail) - 13.0 oz (368 g)
• Product Weight (Terminal Strip) - 13.0 oz (368 g)
• Operating Voltage Range - +12VDC
• Current Draw - Standby Average2 - 150 mA
• Current Draw - Maximum Average3 - 185 mA
• Current Draw - Peak4 - 250 mA
• Operating Temperature - -4° to 122° F (-20° to 50° C)
• Operating Humidity - 5% to 95% relative humidity non-condensing
• Storage Temperature - -67 ̊ to 185 ̊ F (-55 ̊ to 85 ̊ C)
• Operating Environmental - Indoor / Outdoor; IP55
• Transmit Frequency - 13.56 MHz & 125 kHz
• Protocol - HID pivCLASS Protocol, OSDP
• Cable Distance5 - RS485 for communication (500 ft [152m], 22AWG), (300 ft [91m], 24AWG); two wires for power (500 ft [152m], 22AWG)
• Wiring Connection - Pigtail or Terminal Strip
• Certifications - FICAM tested6, UL294 Outdoor (U.S. & Canada), FCC Certification (U.S.), RoHS2
• Housing Material - UL94 Polycarbonate
• UL Ref Number - RPKCL40E
• Warranty - Warranted against defects in materials and workmanship (see complete warranty policy for details)

KT-PVC-2RDRBNDL Specifications PDF
