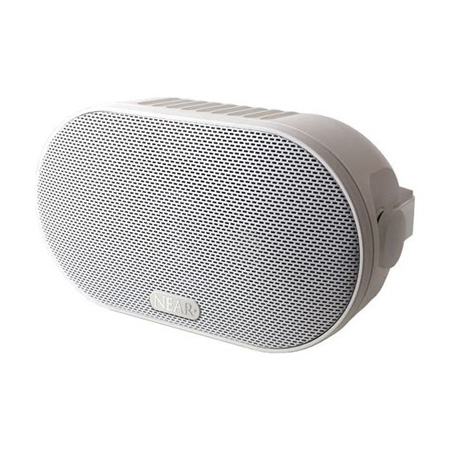

LB5W Bogen NEAR 5 1/4" 2-Way Weatherproof Speaker - White

The NEAR LB5 speaker is elegantly designed, rugged to the extreme and a snap to install. The LB5 employs a NEARexclusive "lever bracket" mount combined with a perfect-fit, totally waterproof input connector. This mounting system minimizes installation effort and reduces "ladder time" to improve installation safety. The LB5 utilizes MDT/MLS woofers with 1" titanium inverted dome tweeters for timbre consistency across the range to allow for complete system design flexibility. The LB5 enclosure is color-through, mica-loaded polypropylene with color-matched aluminum grille. Water-shedding and dust-protecting hydrophobic fabric prevents ingress of fine debris.

Specifications

• Frequency Response - 55Hz to 19kHz,+/-2.5dB
• Sensitivity (1W/1m) - 87dB
• Dispersion - Minimum 120 Degrees, Horizontal & Vertical
• Power Requirements (LB5 @8 ohms) - Up to 75 Watts (Ave); 300W Peak
• Power Requirements (LB5T @70V) - 32W, 16W, 8W, 4W, 2W or 8 ohms
• Dimensions - 7.125"W x 13.875"H x 7.75"D; 18.1cm W x 35.2cm H x 19.7cm D
• Product Weight (w/ mounting yoke & clamp) - LB5: 7lbs/3.18 kgs LB5T: 8lbs/3.63kgs
• Maximum SPL @1m (1/2 space) - 106dB
• Input Terminations - Waterproof Plug-In Connector (IP68 Rating)
• Environmental - Engineered to Meet or Exceed Mil-Std-810(Humidity, Salt Air, Heat, Cold, Immersion); IEC IP 66

LB5W Specifications PDF
