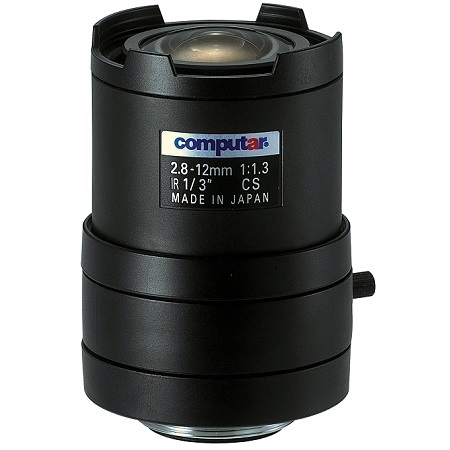

T4Z2813CS-IR-2 Computar CS-Mount 2.8-12mm Vari-focal F/1.3 IR-corrected Manual Iris Lens

Specifications

• Model No - T4Z2813CS-IR-2
• Focal Length - 2.8mm-12mm
• Max. Aperture Ratio - 1:1.3
• Max. Image Format - 4.8mm x 3.6mm(φ6mm)
• Operation Range
• Iris - F1.3 ‐ F16C
• Focus - 0.3m ‐ Inf.
• Zoom - 2.8mm - 12mm
• Control
• Iris - Manual
• Focus - Manual
• Zoom - Manual
• Angle of View
• 1/3 type
  • D - 133.0° - 29.7°
  • H - 102.2° - 23.7°
  • V - 74.2° - 17.8°
• 1/4 type
• D - 95.0° - 22.3°
• H - 74.2° - 17.8°
• V - 17.0°
• 1/4 type
• D - 95.0° - 21.3°
• H - 74.2° - 17.8°
• V - 54.7° - 13.3°
• Operating Temperature - -10°C ‐ +50°C
• Effective Lens Aperture
• Front - φ23.0mm
• Rear - φ7.4mm
• Back Focal Length
  • Tele - 19.2mm
  • Wide - 7.2mm
• Flange Back Length - 12.5mm
• Mount - CS‐Mount
• Filter Size -
• Dimensions - φ40.7mm x 56.0mm
• Weight - 63g

T4Z2813CS-IR-2 Specification PDF
