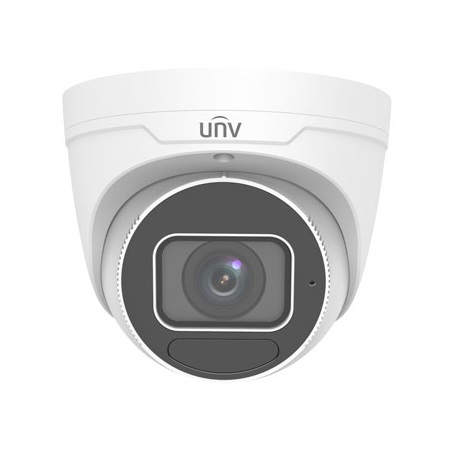

IPC3634SB-ADZK-I0 Uniview Prime I Series 2.7~13.5mm Motorized 30FPS @ 4MP LightHunter Indoor/Outdoor IR Day/Night WDR Eyeball IP Security Camera 12VDC/PoE

SKU: IPC3634SB-ADZK-I0

Brand: Uniview

High quality imaging with 4MP, 1/3" CMOS sensor
30/25fps @ 4MP (2688 x 1520), 30/25fps @ 4MP (2560 x 1440), 30/25fps @ 3MP (2304 x 1296), 30/25fps @ 2MP (1920 x 1080)
Ultra 265, H.265, H.264, MJPEG
LightHunter technology ensures ultra-high image quality in low illumination environment
120dB true WDR technology enables clear image in strong light scene
Support 9:16 Corridor Mode
Built-in Mic
Smart IR, up to (40m) 131ft IR distance
Complies with Section 889 of the NDAA

MPN: IPC3634SB-ADZK-I0
Availability: In Stock
Ordering Notes: Service Professionals Only

New to DWG? - Sign Up for immediate access to dealer pricing and benefits.

Already a DWG Customer? - Sign In to view pricing.

Product Details

Specifications

Camera

Sensor - 1/3", 4.0megapixel, progressive scan, CMOS
Lens - 2.7 ~ 13.5mm, AF automatic focusing and motorized zoom lens
DORI Distance - Lens (mm) - 2.7, 13.5, Detect (m) - 60.8, 303.8, Observe (m) - 24.3, 121.5, Recognize (m) - 12.2, 60.8, Identify (m) - 6.1, 30.4
Angle of View (H) - 98.26°~31.35°
Angle of View (V) - 54.76°~18.55°
Angle of View (O) - 127.74°~36.99°
Adjustment angle - Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotate: 0° ~ 360°
Shutter - Auto/Manual, 1 ~ 1/100000s
Minimum Illumination - Colour: 0.001Lux (F1.2, AGC ON), 0Lux with IR on
Day/Night - IR-cut filter with auto switch (ICR)
Digital Noise Reduction - 2D/3D DNR
S/N - >56dB
IR Range - Up to (40m) 131 ft IR range
Wavelength - 850nm
IR On/Off Control - Auto/Manual
Defog - Digital Defog
WDR - 120dB

Video

Video Compression - Ultra 265, H.265, H.264, MJPEG
H.264 code profile - Baseline profile, Main profile, High profile
Frame Rate
- Main Stream - 30fps @ 4MP (2688 x 1520), 30fps @ 4MP (2560 x 1440), 25fps @ 3MP (2304 x 1296), 30fps @ 1080P (1920 x 1080)
- Sub Stream - 30fps @ 720P (1280 x 720), 30fps @ D1 (720 x 576), 30fps @ 640 x 360, 30fps @ 2CIF (704 x 288), 30fps @ CIF (352 x 288)
- Third Stream - 30fps @ D1 (720 x 576), 30fps @ 640 x 360, 30fps @ 2CIF (704 x 288), 30fps @ CIF (352 x 288)
Video Bit Rate - 128 Kbps~16 Mbps
9:16 Corridor Mode - Supported
OSD - Up to 8 OSDs
Privacy Mask - Up to 4 areas
ROI - Up to 8 areas
Motion Detection - Up to 4 areas


Audio

Storage

Network

Protocols - IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration - ONVIF (Profile S, Profile G, Profile T), API
Client - EZStation, EZView, EZLive
Web Browser - Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below, Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+

Interface

Certifications

General

Power - DC 12V±25%, PoE (IEEE 802.3af)
Power consumption - Max 7.0W
Dimensions (Ø x H) - Ø5.1" x 4.3" (Φ129 x 110mm)
Net Weight - 1.52lb (0.69kg)
Material - Metal
Working Environment - -22°F ~ 140°F (-30°C ~ 60°C) Humidity: ≤95% RH (non-condensing)
Strorage Environment - -22°F ~ 140°F (-30°C ~ 60°C) Humidity: ≤95% RH (non-condensing)
Surge Protection - 6KV
Reset Button - Supported
Ingress Protection - IP67
Vandal Resistant - IK10
Reset Button - Supported
